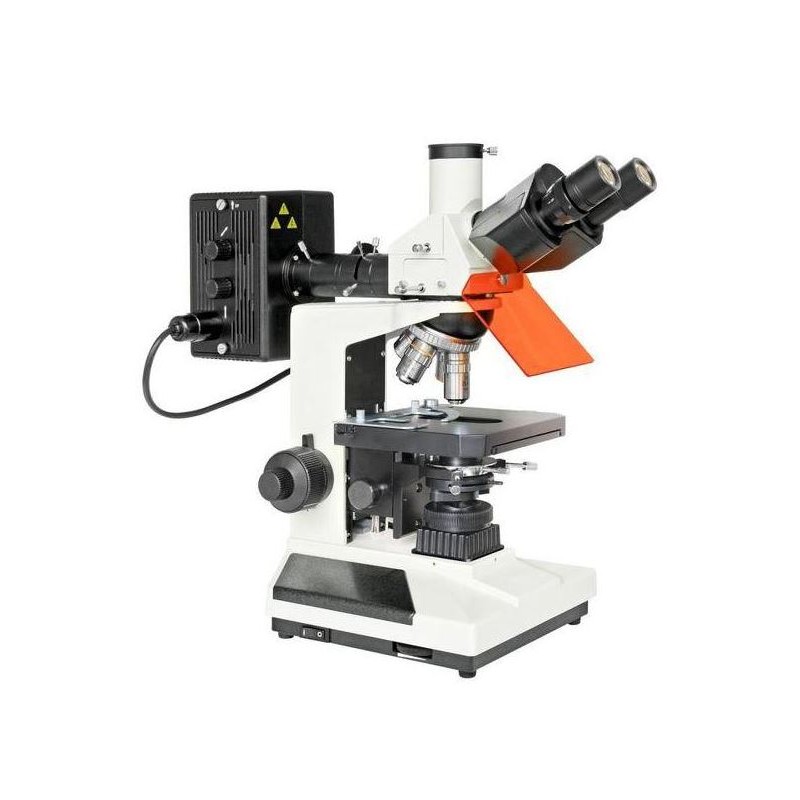

Bresser Microscope Science ADL 601F (12860)

The Science ADL 601 F is the fluorescence version of the ADL 601 P, designed for advanced applications in fluorescence microscopy. It features both transmitted and reflected light illumination, making it highly versatile for use in fields such as biology, medicine, microchemistry, geology, semiconductor production, and environmental protection. The microscope includes a transmitted light halogen illuminator (20 W) with continuous dimming and a high-pressure mercury lamp (100 W) for fluorescence excitation. The trinocular head supports both illumination modes and allows for binocular observation and photography. The eyepiece tubes are inclined at 30° for comfortable viewing.

The fluorescence attachment is equipped with a filter wheel, radiation shield, and an external power supply for the mercury lamp. Fluorescence microscopy is achieved using optional excitation systems (with excitation filter, beam splitter, and emission filter) and specialized fluorescence objectives (e.g., 25x retractable, 40x glycerine retractable, 100x glycerine retractable). Additional features include a fourfold objective nosepiece, lengthwise and cross-movable stage, coaxial focusing knobs with fine drive (200 µm per full turn), adjustable eye relief, diopter adjustment, and a phototube.

Optional accessories include wide-field eyepieces (WF10x, WF16x), dividing eyepieces (WF10x), planachromatic DIN objectives (e.g., 4x, 5x, 10x, 20x, 40x retractable, 100x-oil retractable), Abbe condensers (N.A. 1.25 with iris diaphragm), darkfield condensers (dry and oil), immersion oil, phase contrast sets, Köhler illumination field diaphragms, and filters (blue, green, yellow, ground glass, polarization).

Scope of Delivery

• Microscope body

• Two WF10x eyepieces

• Four lenses: PL4x, PL10x, PL100x oil immersion, FL40x glycerine

• UV illumination unit

• Coaxial cross table with vernier adjustment

• Immersion oil

• Glycerol

• Dust cover

• Mains cable

Specifications

Optics

• Lighting: Incident light and transmitted light

• Lamp Type: Halogen lamp (6V/20W adjustable) and high-pressure mercury vapor lamp (100W) for fluorescence

• Magnification Levels: 40x to 1000x (1000x only in transmitted light mode)

• Lens Type: Plan achromatic objectives

• Eyepiece: Wide-angle WF10x eyepiece

Mechanics

• Type of Build: Trinocular design with a 30° angled eyepiece tube

• Specimen Stage: Cross table with vernier scale for precise positioning

• Focusing: Coarse and fine coaxial focusing controls

Special Features

• Fluorescence contrast method supported

• Filter holder included for advanced imaging control

• Luminous field diaphragm included for Köhler illumination setup

• Dust cover included for safe storage

General Information

• Color: Black-white finish

• Series: Science ADL 601 F Microscope

• Weight: 11.6 kg

Suitability

• Designed for professionals in medicine, mineralogy, and other advanced fields requiring fluorescence microscopy

The Science ADL 601 F is an exceptional tool for advanced fluorescence microscopy. Its robust design, high-quality optics, and versatile illumination options make it indispensable for scientific research in professional or educational settings.
