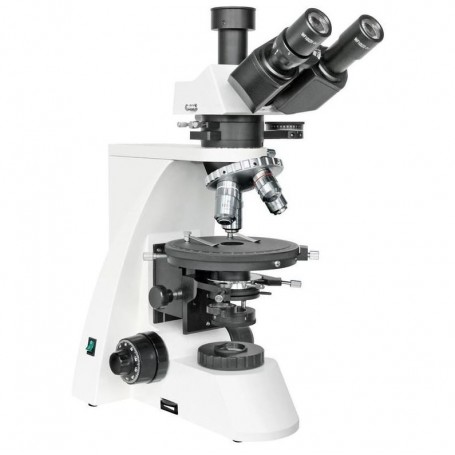

Bresser Microscope Science MPO 40, trino, 40x - 1000x (12861)

Polarized light differs from regular light as it vibrates in a specific plane, allowing anisotropic objects—those with directional properties—to reveal hidden structures. This makes polarized light microscopy ideal for observing crystals, animal hairs, feathers, muscles, nerve fibers, and plant cell walls, which often exhibit unique directional biomolecular arrangements. The resulting images are often characterized by stunning colors and intricate details. Polarization microscopes are widely used in mineralogy, geology, biology, medicine, and educational research.

The Science MPO 401 microscope is equipped with a 360° rotatable and center-adjustable stage with a degree scale for precise control of the object’s orientation. Its illumination and observation system includes a halogen lamp (20 W) with dimmer, a field diaphragm for Köhler illumination, a 360° rotatable polarizer to generate polarized light, and an analyzer attachment for analyzing polarized light. The analyzer attachment accommodates a 360° rotatable analyzer and accessories such as the Bertrand lens (for conoscopy), quartz wedge, λ plate, and λ/4 plate for special color effects. The trinocular head is inclined at 30° and holds wide-field WF10x eyepieces with adjustable eye relief and diopter settings. These features ensure bright, sharp, true-color images rich in detail.

Characteristics

• 360° rotatable stage with degree scale

• Height-adjustable round mechanical stage

• Adjustable eye relief

• Polarization objective lenses: 4x, 10x, 40x, 100x oil immersion

• Trinocular head inclined at 30°

• Transmitted light illumination (6V/20W halogen lamp with dimmer)

Scope of Delivery

• Microscope body

• Two WF10x eyepieces

• Four DIN objectives: PL4x, PL10x, PL40x, PL100x oil immersion

• 360° rotatable mechanical stage

• Phase shifter

• Amici Bertrand lens

• Polarizer/analyzer combination

• Dust cover

• Power cable

Specifications

Optics

• Lighting: Transmitted light with halogen lamp (6V/20W adjustable) and Köhler illumination setup

• Magnification Levels: 40x to 1000x

• Lens Type: Plan achromatic polarization objectives (4x, 10x, 40x, 100x oil immersion)

• Eyepiece: Wide-field WF10x eyepiece

Mechanics

• Specimen Stage: Centering stage with graduated scale for precise positioning

• Type of Build: Trinocular design with a 30° angled eyepiece tube

• Focusing: Coarse and fine coaxial focusing controls

Special Features

• Polarization contrast method supported

• Filter holder included for advanced imaging control

• Luminous field diaphragm included for Köhler illumination setup

• Dust cover included for safe storage

General Information

• Color: Black-white finish

• Series: Science MPO 401 Microscope

• Weight: 9300 g

Suitability

• Designed for professionals in education, medicine, industry, mineralogy, metallurgy, and university-level research (ages 16+)

The Science MPO 401 is an advanced polarization microscope offering precision and versatility for professionals in scientific research and education. Its robust design and high-quality optics make it an essential tool for exploring anisotropic materials across various fields.
