Bresser MicroCam PRO HDMI microscope camera, Full HD, 5MP (56444)
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

New

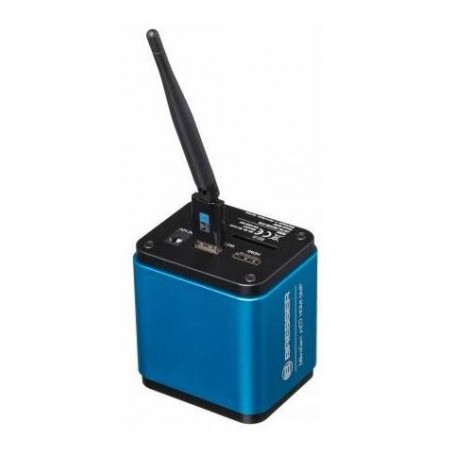

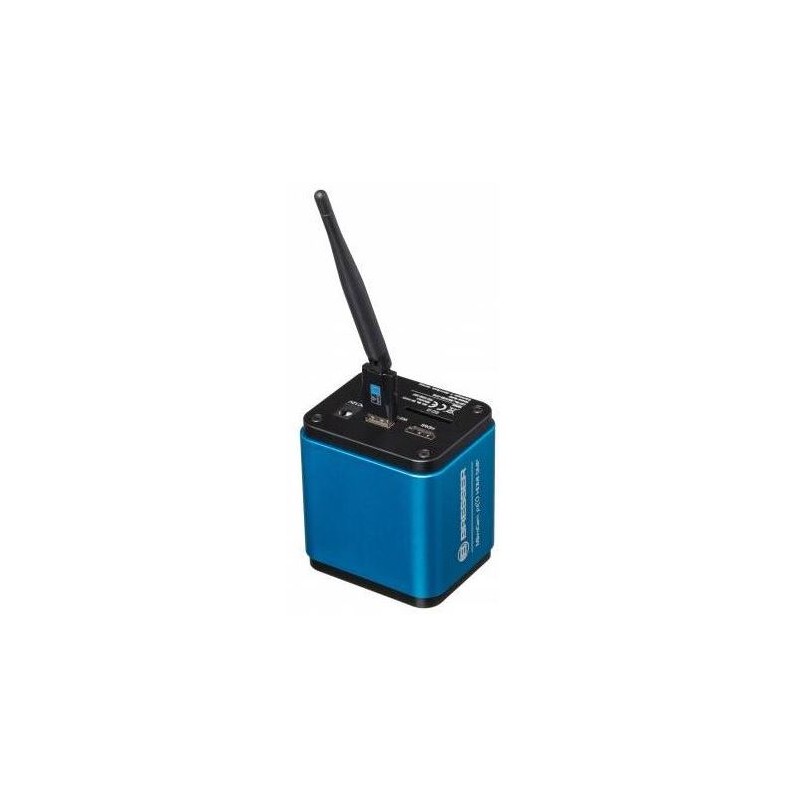

Bresser MicroCam PRO HDMI microscope camera, Full HD, 5MP (56444)

The BRESSER MikroCam PRO HDMI 5MP is a high-quality microscope camera designed for exceptional image clarity and ease of use. It provides a live, lag-free HDMI signal in full HD resolution directly to a monitor or TV, making it ideal for real-time observation. For added convenience, an optional 11" HDMI monitor can be mounted directly on the camera. The Sony 5MP CMOS sensor ensures high-resolution micro photos and videos, which can be saved on an SD card (up to 32GB, not included).

1363.96 $
Tax included

1108.91 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The BRESSER MikroCam PRO HDMI 5MP is a high-quality microscope camera designed for exceptional image clarity and ease of use. It provides a live, lag-free HDMI signal in full HD resolution directly to a monitor or TV, making it ideal for real-time observation. For added convenience, an optional 11" HDMI monitor can be mounted directly on the camera. The Sony 5MP CMOS sensor ensures high-resolution micro photos and videos, which can be saved on an SD card (up to 32GB, not included). The camera is operated using a mouse via an intuitive on-screen menu, allowing users to perform measurements and other tasks directly on the display. This model also supports wireless sharing of microscope views via a WiFi module but does not include a USB connection for PC use. For USB functionality, the MikroCam Pro HDMI 56041 is recommended. The included MikroCamLab II software enables advanced post-capture image processing and evaluation.



Properties

  • HDMI connection for monitor or TV

  • Full HD image reproduction via HDMI (60 frames/sec) or WiFi (up to 25 frames/sec)

  • On-screen measuring function (requires object micrometer, e.g., item no. 5916720, for calibration)

  • Wide dynamic range (WDR) function

  • Save images and videos on an SD card (max. 32GB, not included)

Software Features
The MikroCamLab II software offers advanced image processing capabilities:

  • Measuring tools: Lines, angles, areas (polygons, circles, ellipses)

  • Image stacking from video files

  • Fluorescence microscopy support with data for various fluorophores

  • Batch saving of images

  • High dynamic range (HDR) processing

Languages Supported in Software
The software is available in multiple languages: German, English, French, Polish, Russian, Turkish, Indonesian, Japanese, Simplified Chinese, and Traditional Chinese.





Scope of Delivery

  • MikroCam Pro HDMI 5MP with C-mount thread

  • Power supply

  • Mouse

  • HDMI cable

  • WiFi module

  • Software (CD-ROM)





Specifications

Capacity

  • Megapixel Count: 5 MP

  • Image Format: JPG

  • Photograph Resolution: 1920 x 1080 / 2592 x 1944 pixels

Camera

  • Sensor Type: CMOS (Sony IMX178)

  • Pixel Size: 2.4 µm

  • Shutter Type: Rolling Shutter

  • Image Transmission: HDMI

General Information

  • Chip Size: 1/1.8"

  • Color: Blue finish

  • Weight: 470 g

Miscellaneous

  • Supplier Product Number: 5914185

The BRESSER MikroCam PRO HDMI 5MP is an excellent choice for researchers and professionals who need high-quality imaging with real-time observation capabilities. Its advanced features and intuitive operation make it ideal for a wide range of microscopy applications.
