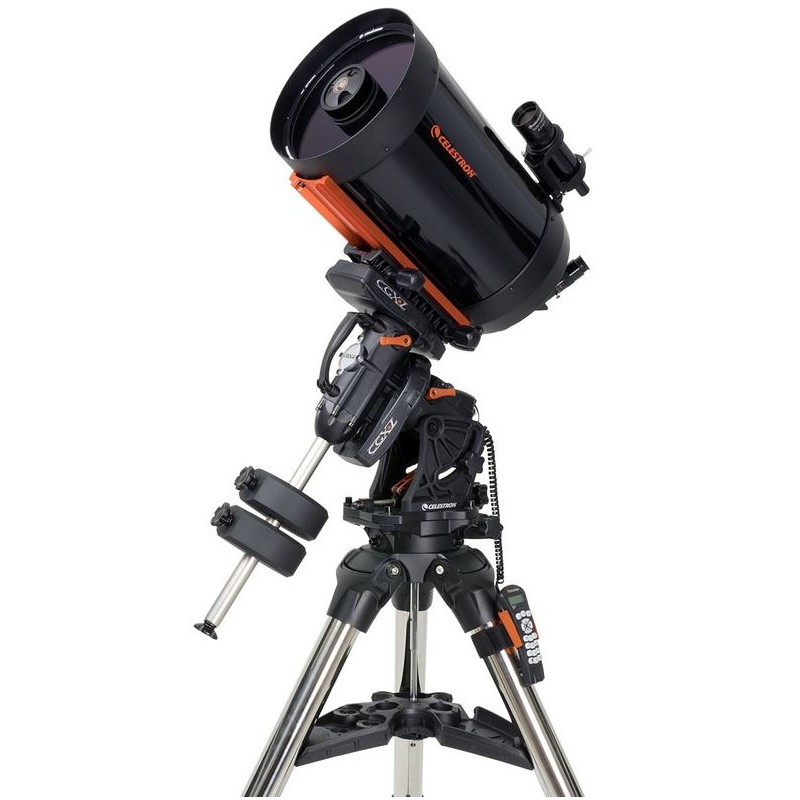

Celestron Schmidt-Cassegrain telescope SC 279/2800 CGX-L 1100 GoTo (54044)

Despite the long focal length of these telescopes, the OTA (Optical Tube Assembly) is compact and lightweight, making it easy to transport. Light enters through an aspherically figured Schmidt corrector plate, reflects off a spherical primary mirror, and is directed to a secondary mirror. The light then passes back through the central hole in the primary mirror into the focuser at the bottom of the OTA. This closed system prevents air turbulence that could degrade image quality and protects against dust. The Schmidt plate is multi-coated to ensure bright, high-contrast images with minimal stray light reflections.

Versatility and Imaging Performance

This telescope delivers excellent image quality with high contrast and definition, making it ideal for planetary observation. The Schmidt-Cassegrain design is versatile, suitable for both visual observation and astrophotography, with a wide range of optional accessories available. It can also be used for occasional terrestrial viewing, such as birdwatching. With an aperture ratio of f/10, astrophotography is straightforward.

Innovative Focusing Mechanism

Main mirror focusing provides a large focus range, allowing compatibility with most common accessories. To minimize "mirror shift," the telescope uses pre-loaded ball bearings in its focus mechanism. High-quality materials like CNC-milled aluminum, cast steel, and stainless steel ensure durability while keeping the weight low, eliminating the need for heavy mounts.

Key Features of the Optics:

• Long focal length with short OTA

• Lightweight aluminum OTA

• High-quality XLT multi-coating

• Closed system for dust protection

• Pre-loaded ball bearings to reduce mirror shift

CGX-L Mount: Enhanced Capability for Larger Telescopes

The CGX-L mount is an upgraded version of Celestron's CGX mount, offering increased load capacity from 25 kg to 34 kg. This allows it to support larger OTAs along with photographic accessories. Key features include 144mm worm gears for smooth operation under heavy loads and a 270mm extended dovetail clamp for secure mounting.

Despite its higher load capacity, the CGX-L remains portable and comes with a sturdy tripod for easy transport. It is also suitable for smaller observatories or remote operation.

Advantages of the CGX-L Mount:

• Increased payload capacity with an excellent weight-to-load ratio

• Additional AUX sockets and auto-guider connection on the DEC axis for better cable management

• 144mm worm gears for smoother operation

• 270mm dovetail clamp for secure telescope attachment

• Steel tripod with 70mm legs for stability

• Heavy-duty counterweight rod (31.5mm diameter)

CGX Equatorial Mount: Advanced Design and Functionality

Celestron’s CGX mount represents years of engineering advancements in German Equatorial mounts. It is designed to support telescopes ranging from 6 to 11 inches in aperture while offering improved stability, motor performance, and ease of use.

Key Features of the CGX Mount:

• Sturdier design with quicker dampening time

• Improved motors with more torque for better slewing and tracking under heavy loads

• Belt-drive system minimizes backlash for smooth operation

• Spring-loaded brass worm wheel and stainless steel worm gear reduce friction

• Internal cabling prevents snags during remote operation

• Home sensors ensure accurate starting positions after power resets

• Adjustable EQ head position optimizes center of gravity

Enhanced Tripod Design:
The tripod features 2" steel legs with height index marks for quick leveling and an accessory tray that holds eyepieces or smartphones. It can be collapsed with the tray installed for faster setup and transport.

Electronics and Control Software

The CGX mount includes NexStar+ hand control with USB connectivity, two AUX ports for wireless alignment accessories (sold separately), an autoguider port, and a threaded 12VDC power input connector. The included PWI Telescope Control software offers advanced precision via PointXP Mount Modeling, which uses multiple reference stars to improve GoTo accuracy.

Software Highlights:

• PointXP Mount Modeling accommodates numerous reference stars for high accuracy

• Extensive object database with online SIMBAD integration

• Sky Viewer star chart simplifies object location

Specifications

Optics:

• Type: Schmidt-Cassegrain Reflector

• Aperture: 279mm (11")

• Focal Length: 2800mm (f/10)

• Coating: Starbright XLT

Mount:

• Type: CGX-L Equatorial Mount

• Load Capacity: 34 kg

• Polar Elevation Setting: 3° - 65°

• GoTo Control: Yes

Included Accessories:

• Losmandy-style prism rail

• Two counterweights (10 kg each)

• 9x50 finder scope

• 40mm eyepiece (1.25")

General Use: This telescope system is ideal for advanced users and observatories. It is suitable for astrophotography, planetary observation, and deep-sky exploration.
