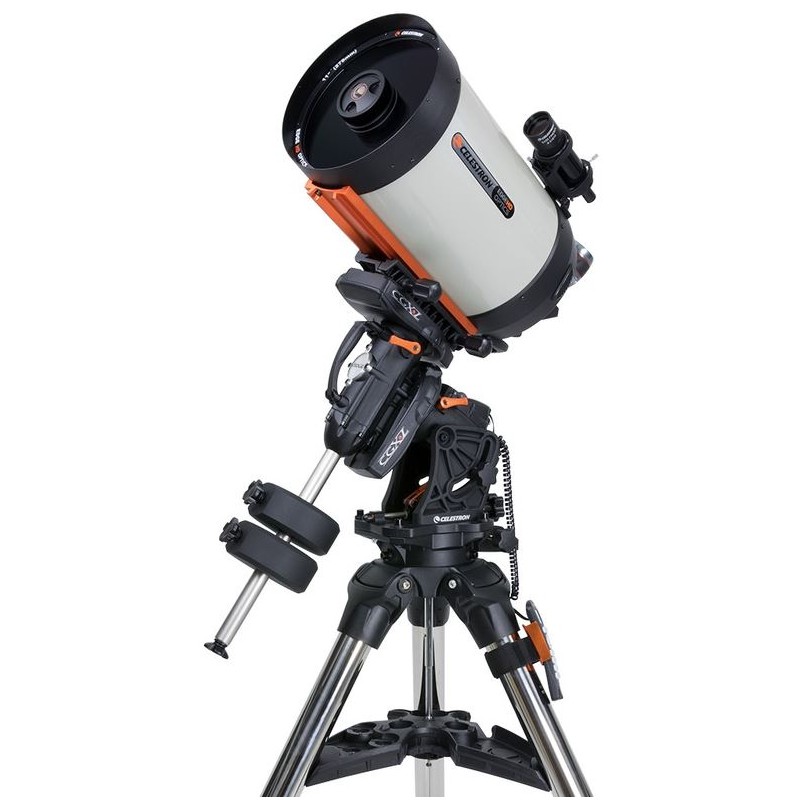

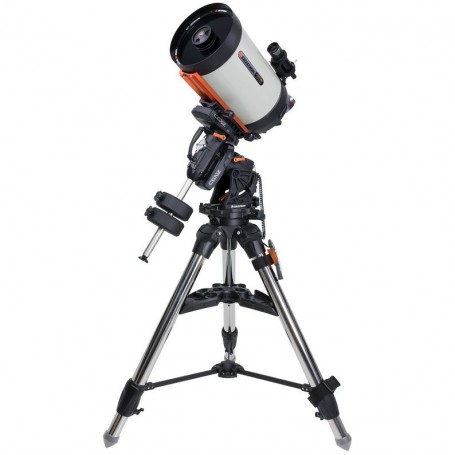

Celestron Schmidt-Cassegrain telescope SC 279/2800 EdgeHD 1100 CGX-L GoTo (54047)

Celestron’s EdgeHD series revolutionizes the classic Schmidt-Cassegrain telescope design with its "aplanatic Schmidt-Cassegrain telescope" technology. These telescopes are true astrographs, delivering distortion-free, sharp images across the entire visual field. Unlike other systems that only correct coma, EdgeHD also eliminates field curvature.

Many optical systems marketed as astrographs produce sharp stars but on a curved image plane, leading to distortions when using cameras with larger sensors. This results in stars at the edges appearing as small rings or "doughnuts." EdgeHD telescopes correct both coma and field curvature, ensuring pinpoint star clarity even at the edges. This improvement significantly enhances resolution and magnitude limits compared to competitors.

The XLT multi-coating further boosts the performance of EdgeHD telescopes, making them stand out in their class.

Mechanical Enhancements:

• Mirror clamps: Secure the primary mirror without stressing optical components, ensuring stability during long exposures.

• Air vents: Located behind the primary mirror, these allow rapid cooling while preventing dust entry with an integrated filter system.

CGX-L Mount: Designed for Larger Payloads

The CGX-L mount is a robust upgrade to Celestron's CGX GoTo mount, designed for heavier payloads. Its load capacity has been increased from 25 kg to 34 kg, making it suitable for larger OTAs and photographic equipment. Key features include:

• 144mm worm gears for smoother operation under heavy loads.

• 270mm dovetail clamp for secure attachment of large telescopes.

• Steel tripod with 70mm legs for enhanced stability.

• 31.5mm counterweight rod to handle heavier setups.

Despite its increased capacity, the CGX-L remains portable and is ideal for both field use and fixed observatories. It also offers excellent cable management with additional AUX ports and an auto-guider connection on the DEC axis.

Advantages of the CGX-L:

• Increased payload capacity with an outstanding weight-to-load ratio.

• Enhanced cable management features.

• Robust components like worm gears and dovetail clamps for stability.

CGX Equatorial Mount: Advanced Design

The CGX mount incorporates years of Celestron's engineering expertise into an all-new design, tailored for both visual observation and astrophotography. It includes numerous improvements:

• Enhanced rigidity: Provides quicker dampening times.

• Improved motors: Deliver greater torque and smoother tracking under heavy loads.

• Belt-drive system: Minimizes backlash while ensuring smooth motor operation.

• Spring-loaded brass worm wheels and stainless steel worm gears: Reduce friction for optimal performance.

• Internal cabling: Prevents snags during slewing by keeping power input and accessory ports stationary.

• Home sensors: Ensure precise alignment after power resets.

• Adjustable EQ head position optimizes balance across a wide latitude range (3°–65°).

The accompanying tripod features 2" steel legs with height index marks for quick setup and an accessory tray that accommodates eyepieces, smartphones, or other tools.

Electronics Features:

• NexStar+ hand control with USB connectivity.

• AUX ports for wireless/WiFi alignment accessories (sold separately).

• USB 2.0 port for direct PC control.

• Autoguider port and PPEC-ready capabilities.

PWI Telescope Control Software

Developed in collaboration with PlaneWave Instruments, PWI software unlocks the full precision of CGX and CGX-L mounts. Features include:

• PointXP Mount Modeling: Uses multiple reference stars for precise alignment.

• A Sky Viewer star chart for easy target location.

• Extensive object databases, including access to SIMBAD’s online astronomical catalog.

The software is compatible with Windows 7, 8, and 10 systems.

Specifications

Optics:

• Type: Reflector (EdgeHD-Cassegrain)

• Aperture: 279mm

• Focal Length: 2800mm (f/10)

• Coating: StarBright XLT

Mount:

• Type: Equatorial (CGX-L)

• Load Capacity: 34 kg

• GoTo Control: Yes

• Interfaces: USB 2.0, AUX ports, Autoguider

Tripod:

• Material: Steel

• Leg Diameter: 70mm

• Height Range: 91–134 cm

Included Accessories:

• Losmandy-style prism rail

• Two counterweights (10 kg each)

• 9x50 finder scope

• 2" star diagonal

• Eyepiece (16mm)

The EdgeHD telescope paired with either the CGX or CGX-L mount offers an exceptional solution for advanced astrophotographers and observatory setups. With cutting-edge optics, robust mounts, and user-friendly software, this system is ideal for capturing stunning celestial images.
