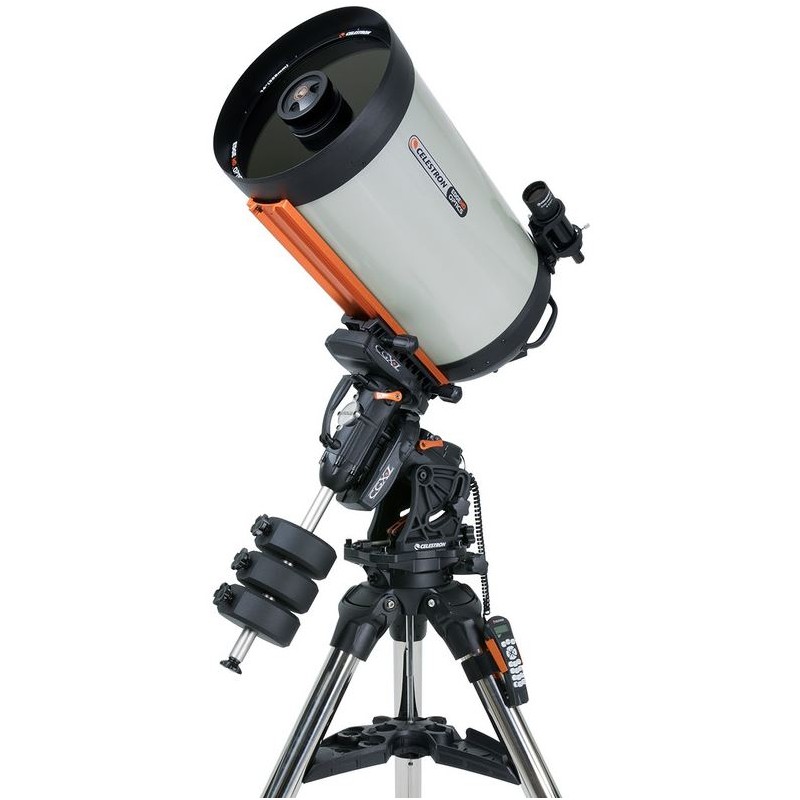

Celestron Schmidt-Cassegrain telescope SC 356/3910 EdgeHD 1400 CGX-L GoTo (54048)

The Celestron EdgeHD is an "aplanatic Schmidt-Cassegrain telescope" that redefines optical performance. After more than 50 years of innovation, it has revolutionized the classic Schmidt-Cassegrain design. The EdgeHD ("Edge High Definition") is a true astrograph, delivering distortion-free, sharp images across the entire field of view. Unlike other "coma-free" designs that only correct coma off-axis, the EdgeHD also eliminates field curvature.

Many telescopes marketed as "astrographs" produce sharp stars but along a curved image plane, leading to field curvature when used with cameras. This results in distorted stars at the edges of images. The EdgeHD corrects both coma and field curvature, ensuring pinpoint stars even at the edges. This significantly improves resolution and magnitude limits compared to competing systems. Additionally, the XLT multi-coating enhances performance.

Enhanced Features of the EdgeHD:

• Mirror Clamps: Secure the primary mirror without stressing optical elements, ensuring stability during long exposures.

• Air Vents: Facilitate rapid cooling of the lens while preventing dust ingress through an integrated filter system.

CGX-L Mount: High Capacity and Versatility

The CGX-L mount is an enhanced version of Celestron's CGX mount, increasing load capacity from 25 kg to 34 kg. This makes it capable of supporting larger OTAs and photographic accessories. Key features include oversized 144mm worm gears for smoother operation under heavy loads and a 270mm extended dovetail clamp for secure mounting.

Despite its increased capacity, the CGX-L remains portable and comes with a heavy-duty tripod. It is also ideal for smaller observatories or remote operations.

Advantages of the CGX-L:

• Increased payload capacity with an excellent weight-load ratio.

• Additional AUX ports and auto-guider connection on the DEC axis for improved cable management.

• Durable steel tripod with 70mm wide legs.

• Counterweight rod with a 31.5mm diameter for heavy loads.

CGX Equatorial Mount and Tripod: A New Standard

Celestron's CGX mount represents a culmination of advancements in German Equatorial mount technology. Designed for both visual observation and astrophotography, it offers improved stability, enhanced drive systems, and features tailored for remote operation.

Notable Design Improvements:

• Sturdier construction with quicker dampening time.

• Enhanced motors provide more torque and smoother tracking under heavy loads.

• Belt-drive system minimizes backlash for precise motor operation.

• Internal cabling prevents cable snags during slewing.

• Home sensors ensure accurate starting positions after power resets.

• Limit sensors automatically stop movement to prevent damage.

• Adjustable EQ head optimizes center of gravity for better stability.

The included tripod features 2" steel legs with height index marks for quick leveling and a versatile accessory tray. The legs can collapse with the tray attached for easy transport.

Advanced Electronics:

• NexStar+ hand control with USB connectivity.

• AUX ports for wireless alignment using optional StarSense AutoAlign or SkyPortal WiFi Module.

• USB 2.0 port for PC connection with included software.

• Real-Time Clock to save time/location data.

PWI Telescope Control Software

Developed in collaboration with PlaneWave Instruments, PWI software unlocks the full potential of CGX and CGX-L mounts. It uses PointXP Mount Modeling for precise alignment by incorporating multiple reference stars. The software also connects to SIMBAD's online database for extensive astronomical object catalogs.

PWI Features:

• Unlimited reference stars via PointXP modeling.

• Sky Viewer star chart for easy target location.

• Extensive offline and online object databases.

The software is compatible with Windows 7, 8, and 10 and includes an English manual in PDF format.

Specifications

Optics:
Type: Reflector (EdgeHD-Cassegrain)
Aperture: 356 mm
Focal Length: 3910 mm
Focal Ratio: f/11
Coating: StarBright XLT

Mount:
Type: Equatorial (CGX-L)
Load Capacity: 34 kg
Drive Type: Worm wheel
Interfaces: USB 2.0, AUX ports, Autoguider

Tripod:
Material: Steel (70mm leg diameter)
Height Range: 91–134 cm

Included Accessories:
Eyepieces: 16mm (2")
Finder Scope: 9x50
Counterweights: Three at 10 kg each

This telescope system is ideal for advanced users and observatories seeking exceptional performance in astrophotography and deep-sky observation!
