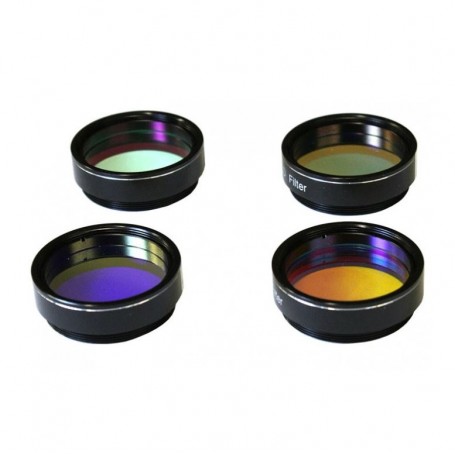

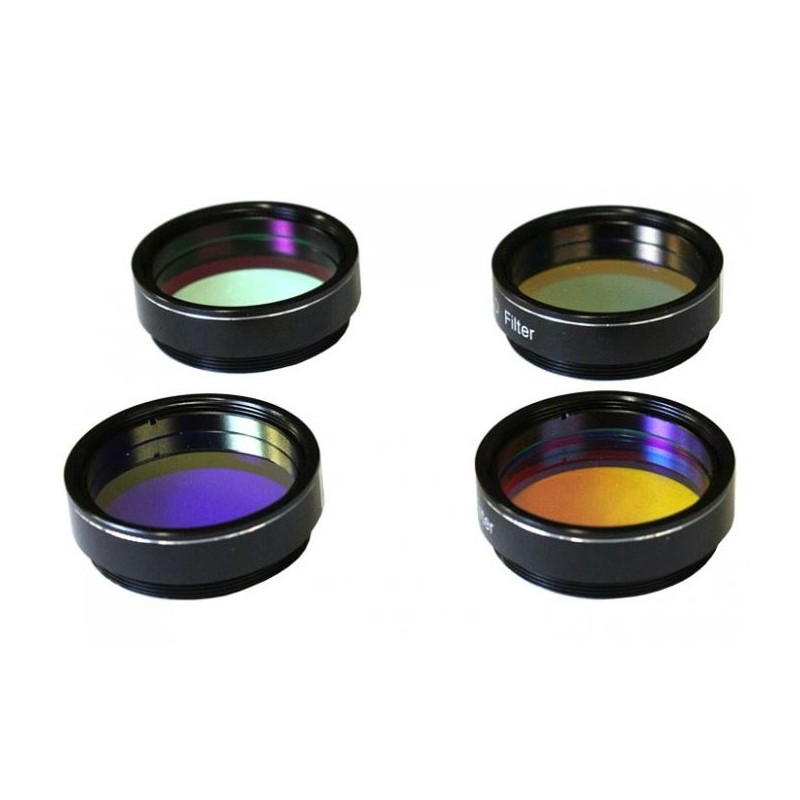

Celestron Filters 1.25" LRGB filter set (45068)

The LRGB filter set is designed to produce stunning color images of the night sky when used with a monochrome CCD camera. Monochrome cameras excel in astrophotography by utilizing all the pixels on the chip, resulting in bright, high-resolution images of deep-sky objects. In contrast, cameras with color CCD chips reduce resolution since approximately one-third of their pixels are filtered for color. By combining a monochrome camera with an LRGB filter set, you can achieve full-chip resolution and create high-quality color images.

Luminance Filter (L):
The luminance filter transmits the entire visible light spectrum while blocking near-UV and IR light. This ensures that all critical object details are captured for sharp, high-resolution imaging.

RGB Filters:
The RGB filters isolate specific wavelengths of light corresponding to the primary colors—red, green, and blue. These filters are used to capture each color channel individually. When combined during image processing, the RGB channels reproduce all visible colors, similar to how human vision perceives colors using internal RGB receptors.

The four images captured through the LRGB channels are processed together to create a final, high-resolution color photograph.

Advantages at a Glance:

• LRGB filter set specifically designed for color astrophotography with monochrome CCD cameras.

• Enables full chip resolution by utilizing external filters for each channel.

• Durable construction with scratch-resistant coatings for long-lasting performance.

• Produces neutral and accurate colors for deep-sky objects and planets.

Recommended Use:
This filter set is ideal for use with Celestron Skyris monochrome cameras:

• Celestron Camera Skyris 618 Mono

• Celestron Camera Skyris 274 Mono

• Celestron Camera Skyris 445 Mono

The filters allow over 92% light transmission across the visible spectrum while blocking approximately 99% of IR light in the 730–920 nanometer range.

Specifications:

• Connection to Telescope: 1.25" filter thread

• Coating: Multi-coated for maximum light transmission and performance

• Transmission: Over 92% across the visible spectrum

• Mount Material: Aluminum

General Information:

• Series: Skyris

For efficient astrophotography sessions, consider pairing this filter set with an Omegon Filter Wheel, allowing quick and seamless filter changes. This setup ensures high-resolution color imaging of deep-sky objects and planets with ease and precision.
