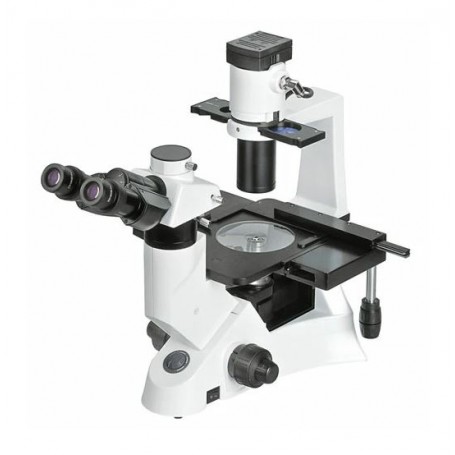

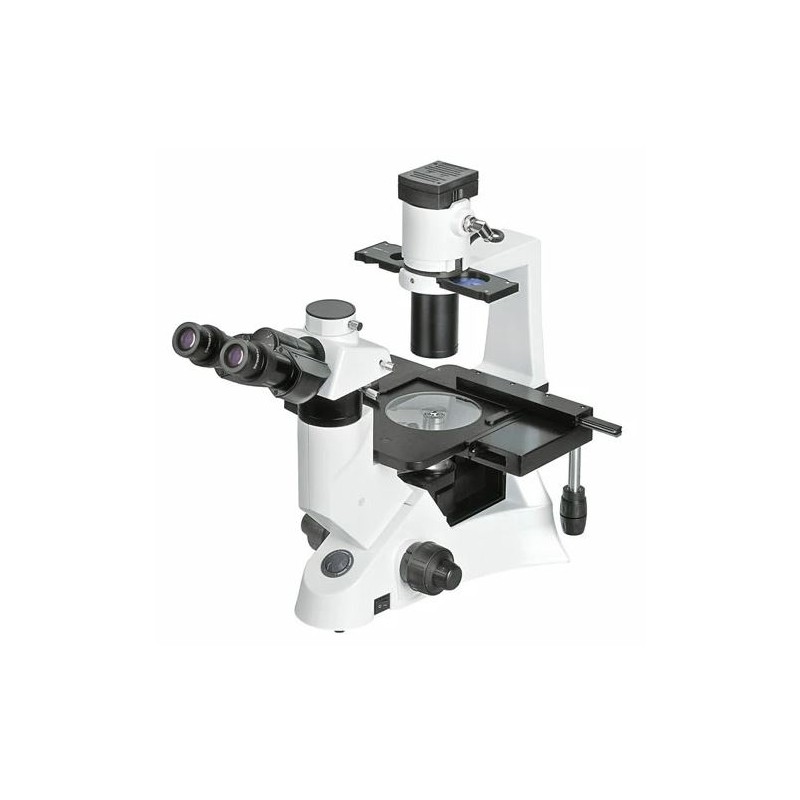

Delta Optical IB-100 LED Inverted microscope (DO-3719)

This microscope is designed for bright field and phase contrast observations, with the option to upgrade to 400x phase contrast and an epifluorescence set (filters B, G, U, and V).

Applications
Suitable for universities, laboratories, research centers, environmental protection, medicine, biology, tissue and cell culture analysis (e.g., in microplates or polystyrene bottles), sediment analysis, observation of plant and animal microorganisms, cytology, microbiology, parasitology, plankton research, and more.

Features

• Infinity-corrected optical system.

• Trinocular Seidentopf head with a 30° inclination and adjustable interpupillary distance (48-75 mm).

• Camera adapters: 23.2 mm adapter and C-mount adapter.

• Focus adjustment in the third optical path.

• Wide-field high-point eyepieces (WF10x/22 mm) secured in tubes with set screws.

• Independent dioptric adjustment in both eyepieces (+/- 5 diopters).

• Total magnifications: 40x, 100x, 200x, 400x.

• Plan-achromatic objectives for phase contrast and bright field (45 mm focal length, corrected for 1.2 mm cover glass thickness):

  • 4x / N.A. 0.1

  • PH 10x / N.A. 0.25

  • PH 20x / N.A. 0.4

  • 40x / N.A. 0.6

• Five-position revolving nosepiece.

• ELWD (Extra Long Working Distance) condenser - N.A. 0.3; working distance: 72 mm (150 mm without condenser), with phase contrast sliders.

• Centering telescope (30 mm diameter).

• Stage dimensions: 160 x 250 mm with an additional element measuring 70 x 180 mm (extending the stage surface); full dimensions: 239 x 250 mm.

• Specimen holder with X-Y adjustment; movement range: 120 x 78 mm.

• Round glass plate for stage mounting - Ø110 mm with Ø46 mm hole.

• Coaxial specimen movement knobs located vertically under the stage on the right side; adjustable knob distance from the stage.

• Terasaki holder included.

• Petri dish holder for dishes with a diameter of 35 mm.

• Universal holder for slides and Petri dishes with a diameter of up to 54 mm.

• Focusing mechanism: Coaxial bilateral coarse and fine movement knobs; vertical coarse movement - 37.7 mm per rotation; fine movement - 0.2 mm per rotation (macro knob force adjustment).

• Filters included: Blue, green, and ground glass (45 mm diameter).

• LED illuminator with adjustable brightness; power supply integrated into the microscope stand.

Included Accessories

• Operating manual.

• Dust cover for microscope protection.

• Filters: Blue, green, and ground glass (45 mm diameter).

• Power cable.

• Centering telescope for phase contrast adjustments.

• Petri dish holder (38 mm diameter).

• Terasaki holder for samples or plates.

• Universal holder for slides and Petri dishes (up to a diameter of 54 mm).

Specifications
Catalog Number: DO-3719

Microscope Type: Biological microscope with an inverted design

Applications: Universities, laboratories, medicine, veterinary science

Observation Techniques: Bright field and phase contrast

Head Type: Trinocular

Light Distribution in Head: Split ratio of 50:50 (eyepieces to camera port)

Objective Nosepiece: Five-position revolving nosepiece

Objectives Included: PH10x, PH20x, 4x, and 40x

Objective Magnifications:
40x / N.A. 0.6
20x / N.A. 0.4
10x / N.A. 0.25
4x / N.A. 0.1

Eyepiece Magnification: WF10x/22 mm

Interpupillary Distance Range: Adjustable between 48–75 mm

Eyepiece Tube Inclination Angle: Fixed at a comfortable angle of 30°

Diopter Adjustment Range: +/-5 diopters in both eyepiece tubes

Total Microscope Magnifications Available:
40x
100x
200x
400x

Condenser Type: ELWD condenser (N.A.: 0.3; WD: working distance of up to 75 mm)

Optical Class: Plan-achromatic optics for high precision

Light Source Type: LED illumination system

Illumination Power Output: LED power rated at approximately 3 W

Illumination Type: Transmitted light system for clear observations

Optical Correction Method Used: Infinity correction system ensures clarity across the field of view

Stage Dimensions: Full dimensions of the stage are approximately 239 x250mm, allowing flexibility when handling larger sample plates or slides

Specimen Movement Range on Stage Mechanism:X-Y mechanical movement range 120 x78mm

Focus Adjustment Knobs Available Include Dual-Sided Bilateral Microfine Knobs
