Dino-Lite Microscope AF4515T-FUW, 1.3MP, 20-220x 8 LED (4x white, 4x UV), 30 fps, USB 2.0 (76884)

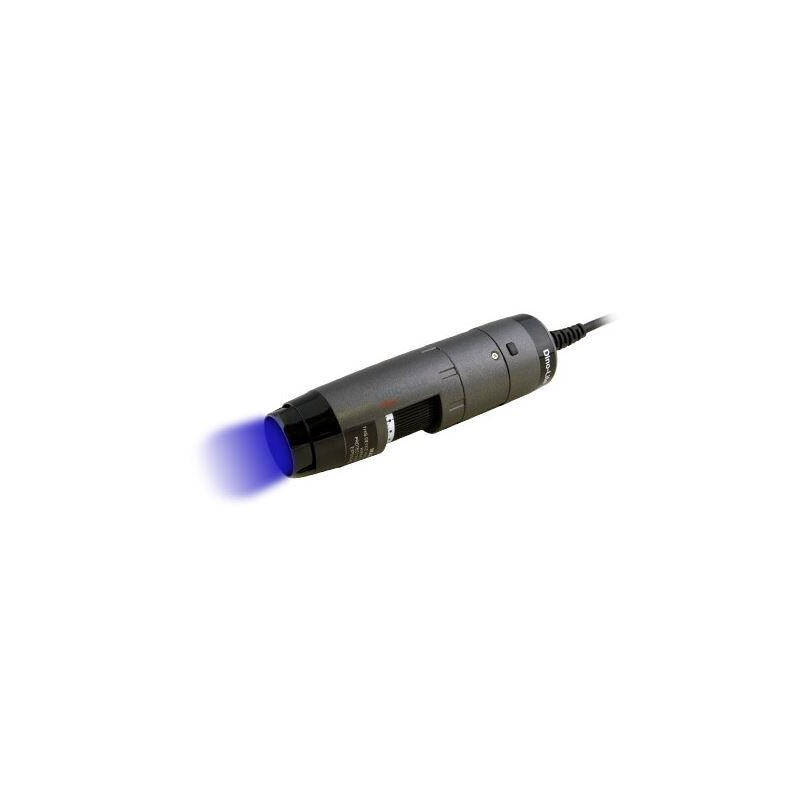

The Dino-Lite AF4515T-FUW is a professional-grade digital microscope designed for specialized applications requiring dual light sources. With its 20-220x magnification range, 1.3MP CMOS sensor, and 8 LEDs (4 white and 4 UV), this microscope provides high-resolution imaging for industrial, educational, and material analysis purposes. Its USB 2.0 interface ensures seamless connectivity, while the built-in polarization feature enhances image clarity.

Key Features:

• Magnification: 20-220x

• Lighting: 8 LEDs (4 white, 4 UV) for dual light source functionality

• Camera Sensor: 1.3MP CMOS

• Resolution: 1280x1024 pixels

• Frame Rate: 30 fps

• Connectivity: USB 2.0

• Polarization: Yes

Physical Specifications:

• Weight: 111g

• Length: 114mm

• Diameter: 33mm

Compatibility and Software:

• Supported Operating Systems: Windows XP, 7, 8, 10, 11; MacOS 10.14 and later

• Software Included: DinoCapture 2.0 (Windows); DinoXcope (MacOS)

Applications:

• Industry

• Education

• Metallurgy

• Materials technology

• Gemology

• Automotive analysis

• Naturopathy

Additional Information:

• Series: Connect Wired

• Supplier Product Number: AF4515T-FUW

The Dino-Lite AF4515T-FUW is ideal for professionals who need to observe targets under different wavelengths, making it suitable for a variety of fields such as materials science and gemology. Its compact design and advanced features ensure precise imaging and ease of use for specialized microscopy tasks.
