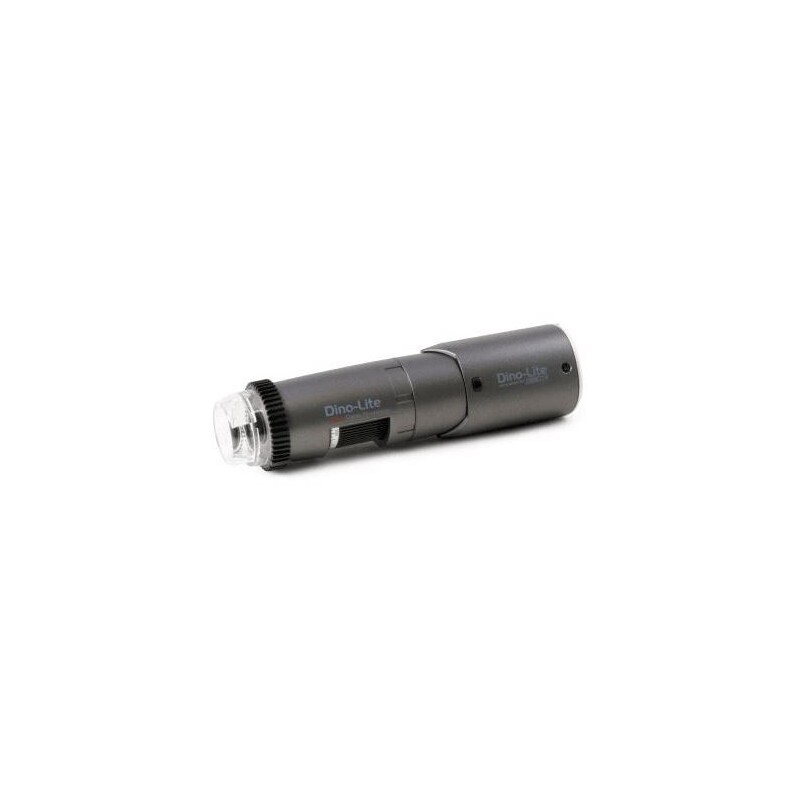

Dino-Lite Microscope AF4915ZT + WF-20, 1.3MP, 20-220x, 8 LED, 30 fps, USB 2.0/WiFi (76837)

The Dino-Lite AF4915ZT is a versatile digital microscope designed for professional applications across various fields, including industry, education, and materials science. With a magnification range of 20x to 220x, a resolution of 1.3 megapixels, and advanced features like Extended Depth of Field (EDOF), Enhanced Dynamic Range (EDR), and Flexible LED Control (FLC), it delivers exceptional imaging capabilities. The device can connect via USB 2.0 or be upgraded to wireless functionality with the optional WF-20 adapter, making it adaptable for both stationary and portable use.

This model is highly recommended for professionals requiring precision imaging in fields such as gemology, materials technology, and quality control. Its modular design ensures adaptability for both wired and wireless applications.

Specifications

Optics and Magnification

• Magnification: 20x to 220x

• Lens Type: Glass with anti-reflection coating

• Working Distance: Standard

Lighting

• LED Type: 8 white LEDs

• Polarizer: Built-in adjustable polarizer

• Diffuser: Included (N3C-D)

Camera and Interface

• Sensor: CMOS

• Resolution: 1280x1024 pixels (1.3 MP)

• Frame Rate: Up to 30 fps

• Interface: USB 2.0 (Wireless-ready with WF-20 adapter)

Software Compatibility

• Supported Operating Systems: Windows 7, 8, 10, 11; MacOS 10.11.6 and later

• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)

Physical Characteristics

• Dimensions: Length 114 mm, Diameter 33 mm

• Weight: 111 g

Applications

• Industry: Suitable for semiconductor technology, metallurgy, materials science, automotive, and more

• Education: Ideal for teaching purposes in universities and technical training

Special Features

• EDOF: Combines multiple focus levels for greater depth of field

• EDR: Enhances dynamic range by combining images at different exposures

• AMR: Automatic Magnification Reading simplifies measurements

• FLC: Flexible LED Control for lighting adjustments

Included Accessories

• Open cap (N3C-O), closed cap (N3C-C), diffuser cap (N3C-D), extension cap (N3C-E), long cap (N3C-L), side light cap (N3C-S)
