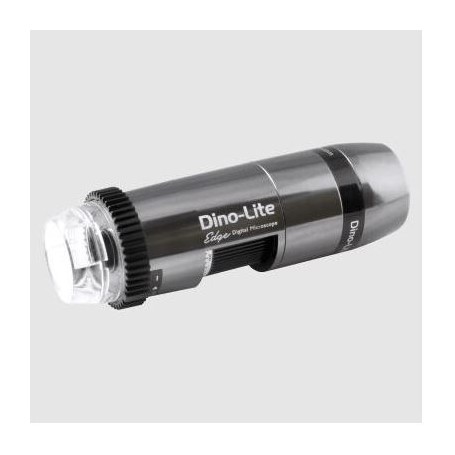

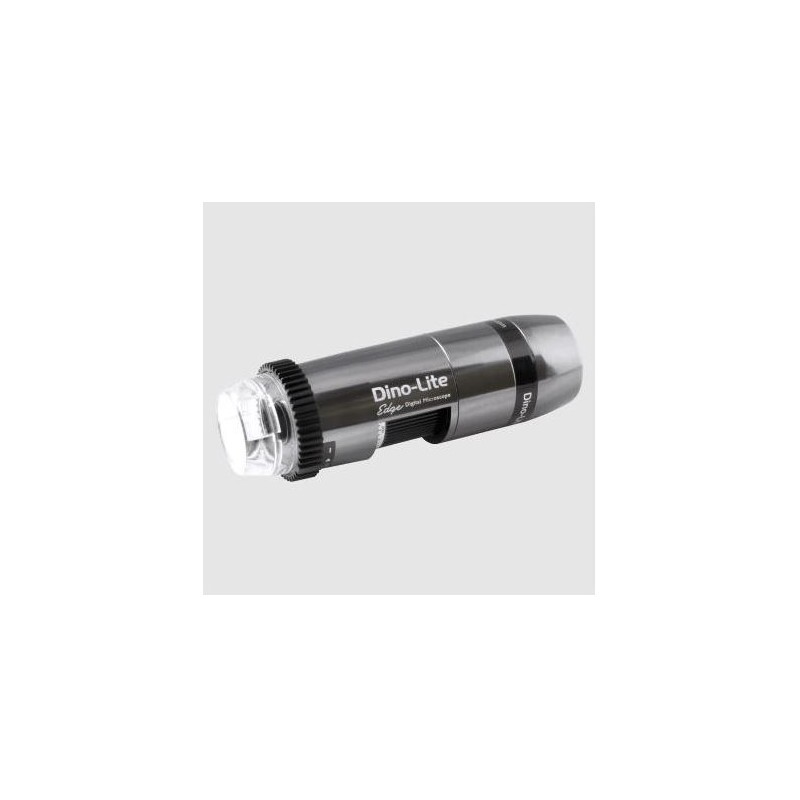

Dino-Lite Microscope AM5218MZT, 720p 20-220x, 8 LED, 60 fps, HDMI/DVI (76864)

The Dino-Lite AM5218MZT is a high-speed digital microscope designed for real-time applications across various industries and medical fields. This Edge Series model offers HD 720p resolution with a magnification range of 20-220x and a fast 60 fps frame rate, making it ideal for detailed inspections and dynamic observations. With HDMI/DVI output for direct connection to displays, it's particularly suitable for industrial quality control, educational demonstrations, and medical examinations.

This Dino-Lite microscope is particularly well-suited for applications requiring real-time, high-speed imaging. Its direct HDMI/DVI output and high frame rate make it an excellent choice for live demonstrations, quality control processes, medical examinations, and educational settings where immediate visual feedback is crucial.

Specifications

Optics and Lighting

• Magnification: 20-220x

• Lighting: 8 LED incident light

• Polarization: Yes

Imaging and Interface

• Camera sensor: CMOS

• Resolution: 1280x720 pixels (720p)

• Frame rate: 60 fps

• Interface: HDMI/DVI

• Megapixel: 0.92

Physical Characteristics

• Weight: 140 g

• Length: 105 mm

• Diameter: 32 mm

• Series: High Speed Real Time

Applications

• Industry: Suitable for metallurgy and materials technology

• Education: Yes

• Medicine: Yes, including urology and dermatology

• Naturopathy: Yes

Additional Features

• MicroTouch sensor for image freeze and LED control

• Adjustable polarizer to reduce glare on shiny surfaces

• Aluminum housing for enhanced protection and durability

Additional Information

• Supplier product number: AM5218MZT
