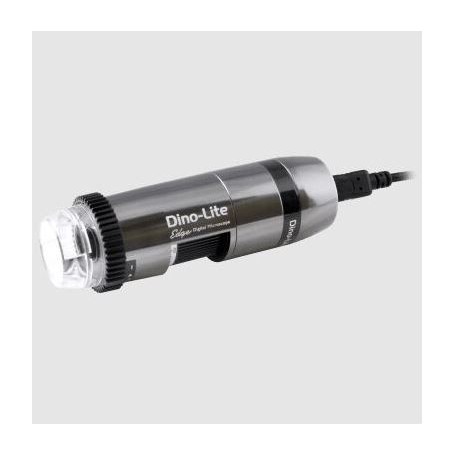

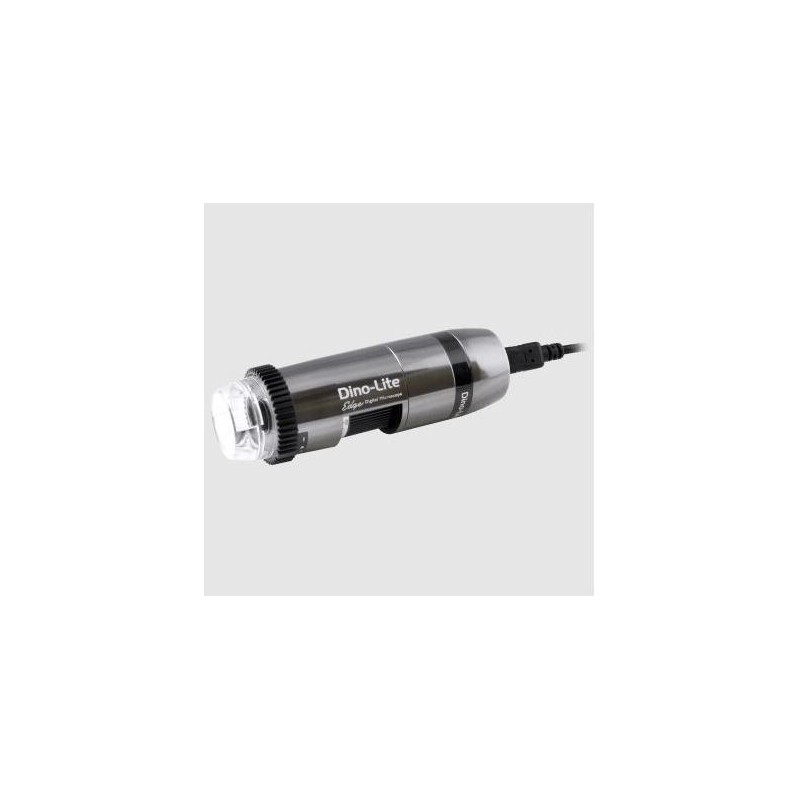

Dino-Lite Microscope AM4115MZTL, 1.3MP, 10-140x, 8 LED, 30 fps, USB 2.0 (76857)

The Dino-Lite AM4115MZTL is a digital microscope designed for applications requiring long working distances and versatile magnification. With a range of 10-140x and a 1.3MP CMOS sensor, it delivers high-resolution imaging at 1280x1024 pixels. Featuring USB 2.0 connectivity, an 8-LED lighting system, and an adjustable polarizer to reduce glare, this microscope is ideal for industrial inspections, educational purposes, and hobbies such as mineralogy and natural sciences.

The Dino-Lite AM4115MZTL is a reliable tool for professionals, educators, and hobbyists who require precise imaging with extended working distances. Its compact design, high-quality optics, and compatibility with multiple operating systems make it an excellent choice for various applications in industry, education, and natural sciences.

Specifications

Optics and Lighting

• Magnification: 10-140x

• Lighting: 8 LED incident light

• Polarization: Yes

Imaging and Interface

• Camera sensor: 1.3 Megapixel CMOS

• Resolution: 1280x1024 pixels

• Frame rate: 30 fps

• Interface: USB 2.0

Software and Compatibility

• Supported operating systems: Windows 7, 8, 10, 11; MacOS 11.1 and later

• Software: DinoCapture 2.0 (Windows); DinoXcope (MacOS)

Physical Characteristics

• Weight: 130 g

• Length: 105 mm

• Diameter: 32 mm

• Series: Long Working Distance

Applications

• Industry: Suitable for metallurgy and materials technology

• Education: Yes

• Hobby: Not specified

• Naturopathy: Yes

Additional Information

• Supplier product number: AM4117MZTL
