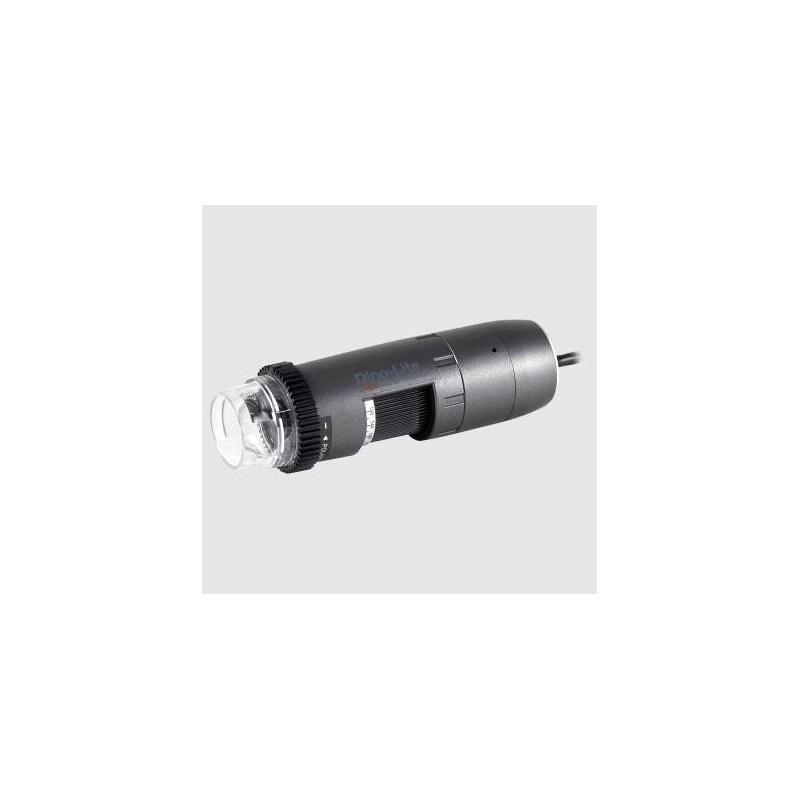

Dino-Lite Microscope AM4115ZTL, 1.3MP, 10-140x, 8 LED, 30 fps, USB 2.0 (76898)

The Dino-Lite AM4115ZTL is a digital microscope designed for applications requiring long working distances and precise imaging. With a magnification range of 10-140x and a 1.3MP CMOS sensor, it delivers high-resolution images at 1280x1024 pixels. This model features USB 2.0 connectivity, an 8-LED lighting system, and a built-in adjustable polarizer to reduce glare, making it ideal for industrial inspections, educational use, and hobbies such as mineralogy and natural sciences.

The Dino-Lite AM4115ZTL is an excellent tool for professionals, educators, and hobbyists who require high-quality imaging with extended working distances. Its built-in polarizer, compact design, and compatibility with multiple operating systems make it a versatile solution for a wide range of applications in industry, education, and natural sciences.

Specifications

Optics and Lighting

• Magnification: 10-140x

• Lighting: 8 LED incident light

• Polarization: Yes

Imaging and Interface

• Camera sensor: 1.3 Megapixel CMOS

• Resolution: 1280x1024 pixels

• Frame rate: 30 fps

• Interface: USB 2.0

Software and Compatibility

• Supported operating systems: Windows 7, 8, 10, 11; MacOS 10.9 and later

• Software: DinoCapture 2.0 (Windows); DinoXcope (MacOS)

Physical Characteristics

• Weight: 105 g

• Length: 105 mm

• Diameter: 32 mm

• Series: Long Working Distance

Applications

• Industry: Suitable for metallurgy and materials technology

• Education: Yes

• Hobby: Yes, including mineralogy and naturopathy activities

Additional Information

• Supplier product number: AM4115ZTL
