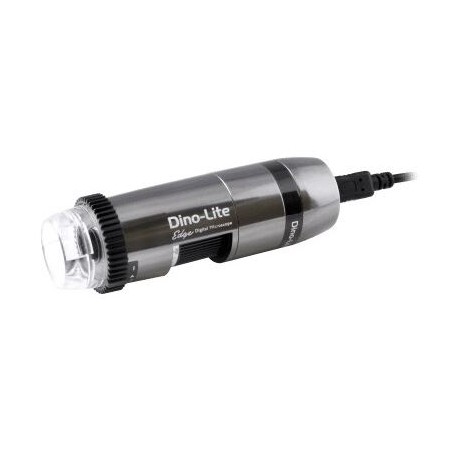

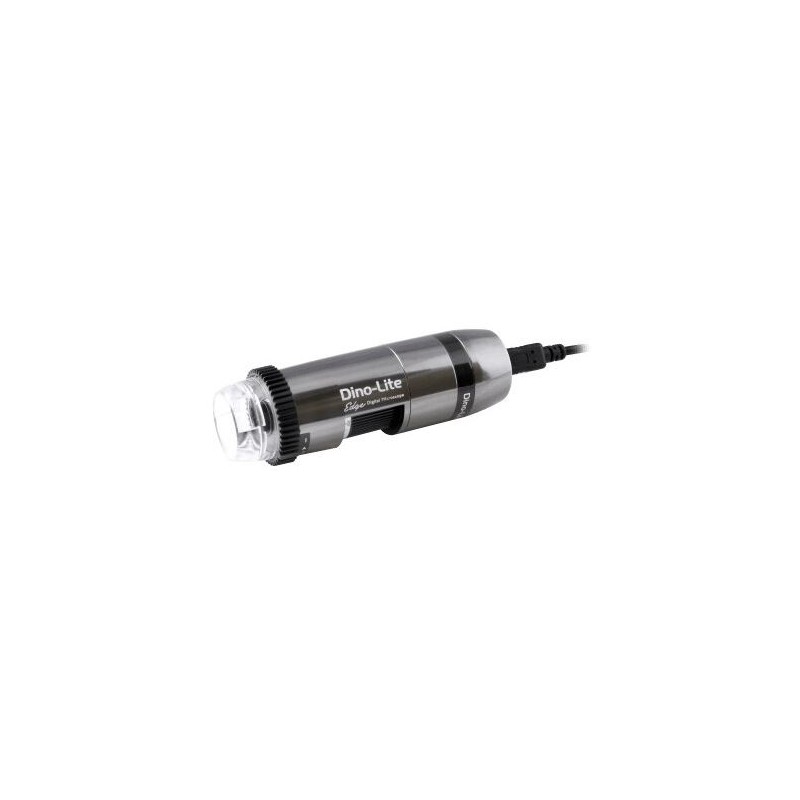

Dino-Lite Microscope AM4117MZT, 1.3MP, 20-220x, 8 LED, 30 fps, USB 2.0 (76855)

The Dino-Lite AM4117MZT is a professional handheld digital microscope designed for versatile applications in industry, education, and materials science. With a magnification range of 20-220x and a 1.3MP CMOS sensor, it delivers high-resolution images at 1280x1024 pixels. This model features USB 2.0 connectivity, an 8-LED lighting system, and an integrated adjustable polarizer to reduce glare, making it ideal for detailed inspections and analysis in fields such as metallurgy, gemology, and automotive industries.

The Dino-Lite AM4117MZT is an excellent tool for professionals and educators who require precise imaging with the added benefit of a built-in polarizer for reducing glare on reflective surfaces. Its compact design, wide magnification range, and compatibility with multiple operating systems make it a versatile solution for various fields and applications.

Specifications

Optics and Lighting

• Magnification: 20-220x

• Lighting: 8 LED incident light

• Polarization: Yes

Imaging and Interface

• Camera sensor: 1.3 Megapixel CMOS

• Resolution: 1280x1024 pixels

• Frame rate: 30 fps

• Interface: USB 2.0

Software and Compatibility

• Supported operating systems: Windows 7, 8, 10, 11; MacOS 10.11.6 and later

• Software: DinoCapture 2.0 (Windows); DinoXcope (MacOS)

Physical Characteristics

• Weight: 130 g

• Length: 105 mm

• Diameter: 32 mm

• Series: Universal

Applications

• Industry: Suitable for metallurgy, materials technology, materials science, gemology, and automotive applications

• Education: Yes

• Naturopathy: Yes

Additional Information

• Supplier product number: AM4117MZT
