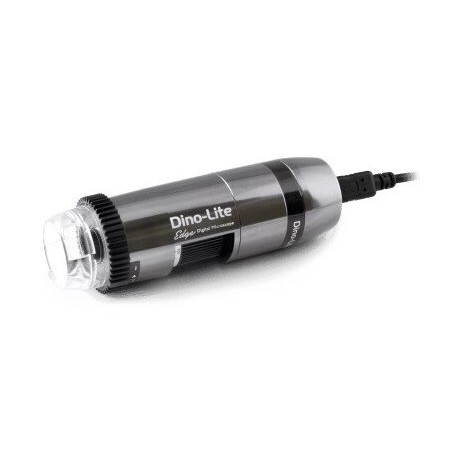

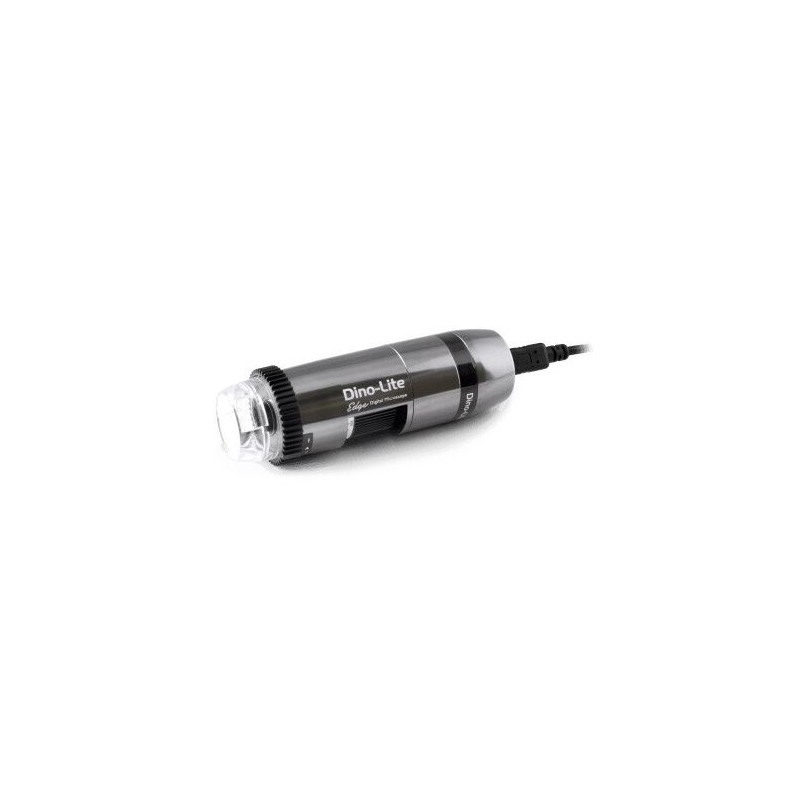

Dino-Lite Microscope AM4915MZT, 1.3MP, 20-220x, 8 LED, 30 fps, USB 2.0 (76830)

The Dino-Lite AM4915MZT is a high-performance digital microscope designed for professional use in industry, education, and materials science. With a magnification range of 20-220x and a 1.3MP CMOS sensor, it delivers sharp, high-resolution images at 1280x1024 pixels. This model features USB 2.0 connectivity, an 8-LED lighting system, and an adjustable polarizer to reduce glare, making it ideal for applications such as metallurgy, gemology, automotive inspections, and materials technology.

The Dino-Lite AM4915MZT is an excellent tool for professionals and educators who require precise imaging with the added benefit of a built-in polarizer to reduce glare on reflective surfaces. Its compact design, wide magnification range, and compatibility with multiple operating systems make it ideal for various fields and applications.

Specifications

Optics and Lighting

• Magnification: 20-220x

• Lighting: 8 LED incident light

• Polarization: Yes

Imaging and Interface

• Camera sensor: 1.3 Megapixel CMOS

• Resolution: 1280x1024 pixels

• Frame rate: 30 fps

• Interface: USB 2.0

Software and Compatibility

• Supported operating systems: Windows 7, 8, 10, 11; MacOS 11.1 and later

• Software: DinoCapture 2.0 (Windows); DinoXcope (MacOS)

Physical Characteristics

• Weight: 130 g

• Length: 105 mm

• Diameter: 32 mm

• Series: Universal

Applications

• Industry: Suitable for metallurgy, materials technology, materials science, gemology, and automotive applications

• Education: Yes

• Naturopathy: Yes

Additional Information

• Supplier product number: AM4915MZT
