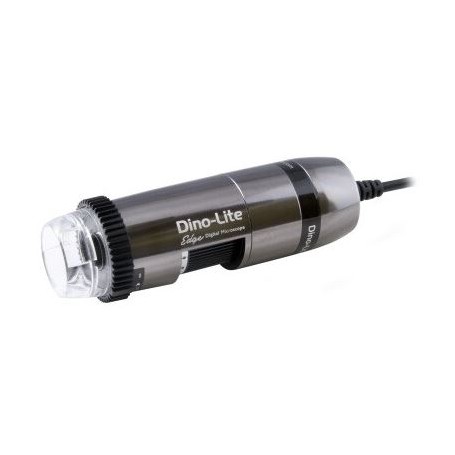

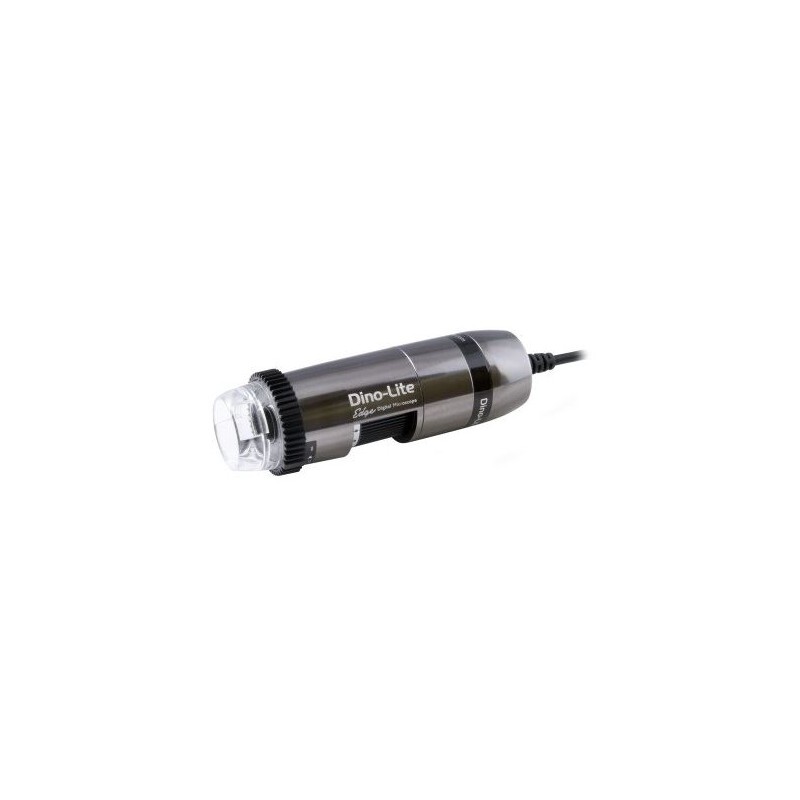

Dino-Lite Microscope AM7515MZT2P, 5MP, 130-220x, 8 LED, 30 fps, USB 2.0 (76840)

The Dino-Lite Microscope AM7515MZT2P is a high-performance digital microscope designed for professional applications across various industries. With a 5-megapixel resolution, a magnification range of 130x to 220x, and advanced features such as polarization, this device provides exceptional imaging quality. Its durable aluminum housing and compatibility with Windows and macOS operating systems make it versatile and reliable for diverse fields like metallurgy, materials science, and automotive applications.

Specifications

Optics

• Magnification: 130-220x

Lighting

• Type: Incident light

• Lamp: 8 LED

Interface

• Connection: USB 2.0

• Megapixel Resolution: 5 MP

• Photograph Resolution (Pixels): 2592x1944

• Frame Rate: 30 fps

• Polarization: Yes

Camera

• Sensor Type: CMOS

Supported Operating Systems

• Windows: 7, 8, 10, 11

• macOS: 10.14 or later

Software

• Windows: DinoCapture 2.0

• macOS: DinoXcope

General Dimensions and Weight

• Weight: 140 g

• Length: 107 mm

• Diameter: 32 mm

Series and Applications

• Series: Universal

• Applications in Industry: Yes

• Education Use: Yes

• Hobby Use: Not specified

• Medical Use: Not specified

Areas of Application

• Odontotechnics: Not specified

• Semiconductor Technology: Not specified

• Metallurgy: Yes

• Veterinary Medicine: Not specified

• University Research: Not specified

• Materials Technology: Yes

• Materials Science: Yes

• Gemology: Yes

• Automotive Industry: Yes

• Naturopathy: Yes

Miscellaneous Details

• Supplier Product Number: AM7515MZT2P
