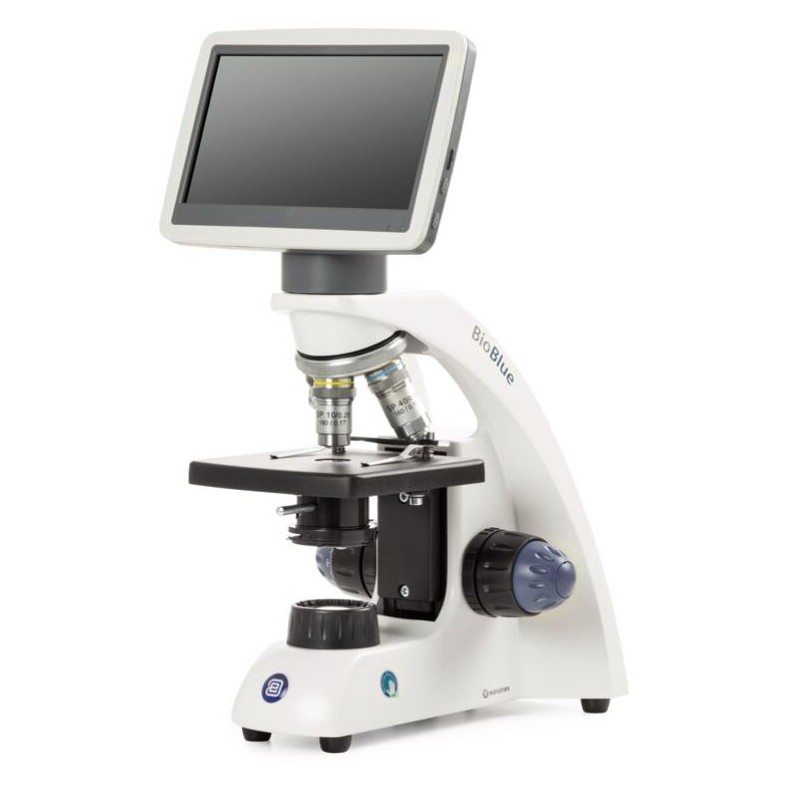

Euromex BioBlue, BB.4200-LCD, 7'' LCD, SMP 4/10/S40x objectives, DIN, 40x-400x, 10x/18, LED, 1W, simple Specimen stage (74107)

Euromex engineers bring years of expertise to the development of the BioBlue series, ensuring only the finest optical components are used. This guarantees exceptional performance and delivers clear, bright images at all magnification levels. The BioBlue microscopes are modern, ergonomic, and specifically designed for educational purposes, adhering to today's high-quality standards.

Specifications

Optics

• Image Scale: 40-400 (Semi-planachromatic)

• Lamp Type: LED

• Lens Type: Semi-Plan Achromatic

• Eyepiece: 10x/18 (Widefield)

• Magnification: 40-400

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

• Optical System: DIN (160mm)

• Objectives:

  • Objective 1: 4x/0.10

  • Objective 2: 10x/0.25

  • Objective 3: 40x/0.65 S spring-loaded

Capacity

• Brightness Control: Yes

• Brightfield: Yes

• LCD Screen: 7 inches

• Coating of Optical System: Semi-planachromatic

• Video Function: Yes

Mechanics

• Type of Build: Digital

• Focusing: Coarse and fine movement

• Specimen Stage: Present

• Revolver: 4 positions

Special Features

• Rechargeable Battery Operation: Yes

• Filter Holder: Yes

• Dust Cover Bag: Yes

General Information

• Series: BioBlue

• Field of Application: Medicine, Education, Hobby

Area of Application

• Collector: Yes

• Parasite Analysis: Yes

• Secondary School: Yes

• High School: Yes

Miscellaneous Details
Supplier Product Number: BB.4200-LCD
