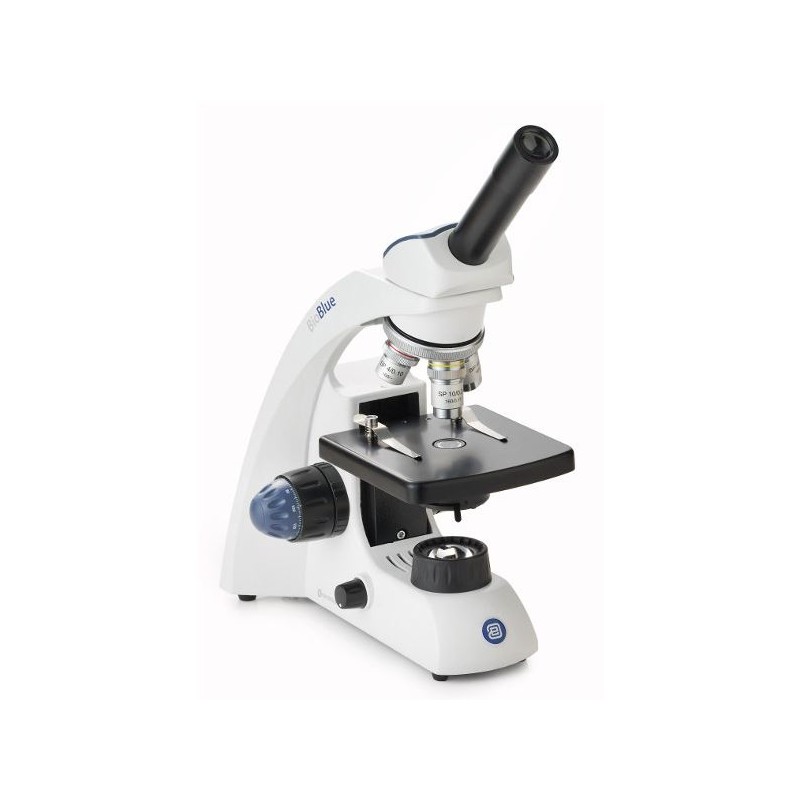

Euromex Microscope BioBlue, BB.4200, mono, DIN, 40x-400x, 10x/18, LED, 1W (44263)

Euromex engineers leverage their extensive experience to ensure the BioBlue series is developed using only the highest-quality optical components. This results in outstanding performance, delivering clear and bright images at all magnification levels. Designed specifically for educational purposes, these modern microscopes prioritize ergonomics and meet current quality standards.

Key Features of Euromex BioBlue

• Wide Field Eyepieces: HWF 10x/18

• Pointer in Monocular Models: Monocular eyepieces come equipped with a pointer for added precision.

• Rotatable Head: Mono- and binocular models feature a 360° rotatable head.

• Revolving Nosepiece: Accommodates up to 4 objectives.

• Semi-Plan Objectives: Includes DIN 4x, 10x, 20x, S40x, S60x, and S100x-oil objectives.

• Specimen Stage: 120 x 120 mm stage with two object clamps or an integrated X-Y translation stage.

• Adjustable Specimen Protection Mechanism: Prevents accidental damage during use.

• Coaxial Adjustment: Coarse and fine adjustments with 0.002 mm graduations for precise focusing.

• Abbe Condenser: Height-adjustable N.A. 1.25 condenser with iris diaphragm and filter holder.

• LED Illumination: Adjustable LED lighting with a built-in power supply, rechargeable batteries, and charger.

Specifications

Optics

• Image Scale: 4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection)

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

• Lamp Type: LED

• Lens Type: Semi-Plan Achromatic

• Eyepiece: Widefield HWF 10x/18

Power Supply

• Operates on 85–240V with a built-in battery charger and detachable power cord.

Magnification Range

• Provides magnifications of 40x, 100x, and 400x.

Optical System

• DIN standard (160mm).

Capacity Features

• Brightness Control: Yes

• Brightfield Capability: Yes

Mechanical Features

• Viewing Posture: Eyepiece angled at 45° and rotatable at 360° for user comfort.

• Specimen Stage Dimensions: 120 x 120 mm stage for secure specimen placement.

• Focusing Mechanism: Coarse and fine coaxial adjustments with precise divisions of 0.002 mm.

Build Type

• Monocular construction.

Special Features

• Rechargeable Battery Operation: Yes

• Filter Holder: Yes

• Dust Cover Bag Included: Yes

General Information

• Series Name: BioBlue

• Suitable For Beginners: Yes

Field of Application

• Hobby: Yes

• Education: Yes

Area of Application
Designed for use in secondary schools: Yes
