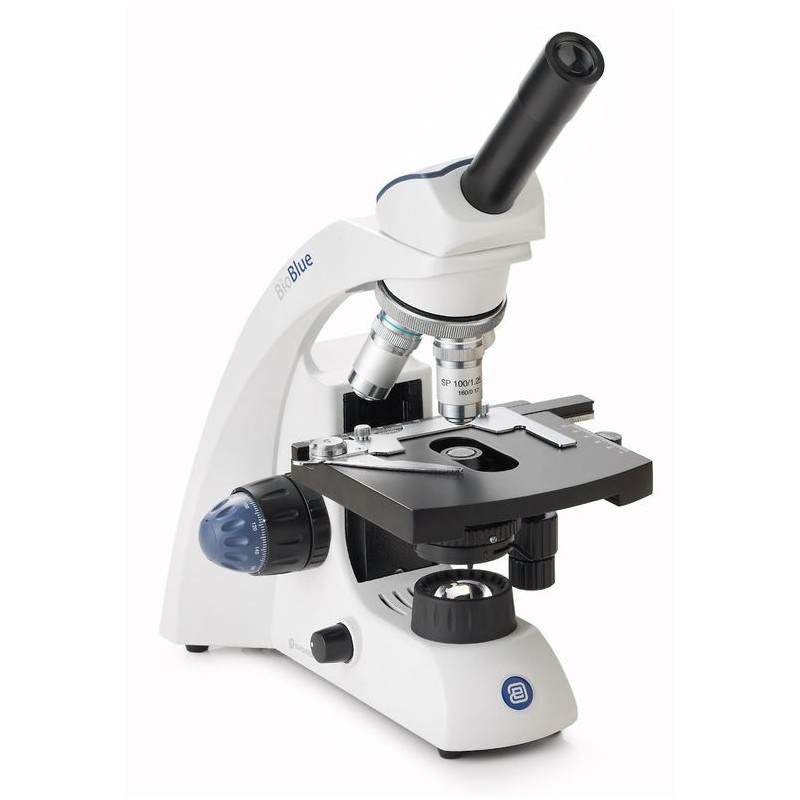

Euromex Microscope BioBlue, BB.4220, mono, DIN, 40x-400x, 10x/18, LED, 1W (44264)

Euromex engineers' extensive experience ensures that only the finest optical components are used in the development of the BioBlue series. This guarantees top performance, delivering clear, bright images at every magnification level. The modern microscopes in the BioBlue series are specifically designed for educational purposes, with a focus on ergonomics and adherence to today's quality standards.

502.68 €
Tax included

408.69 € net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Euromex engineers' extensive experience ensures that only the finest optical components are used in the development of the BioBlue series. This guarantees top performance, delivering clear, bright images at every magnification level. The modern microscopes in the BioBlue series are specifically designed for educational purposes, with a focus on ergonomics and adherence to today's quality standards.

Key Features

  • Wide Field eyepieces HWF 10x/18

  • Monocular models equipped with a pointer in the eyepiece

  • Mono- and binocular models with 360° rotatable head

  • Revolving nosepiece for 4 objectives

  • Semi-plan DIN objectives: 4x, 10x, 20x, S40x, S60x, and S100x-oil

  • 120 x 120 mm stage with two object clamps or integrated X-Y translation stage

  • Adjustable specimen protection mechanism

  • Coaxial coarse and fine adjustment with 0.002 mm graduations

  • Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

  • Adjustable LED illumination with built-in power supply, rechargeable batteries, and charger



Specifications

Optics

  • Image scale: 40-400 (4x N.A. 0.10, 10x N.A. 0.25, 40x N.A. 0.65 with specimen protection)

  • Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

  • Lamp type: LED

  • Lens type: Semi-Plan Achromatic

  • Eyepiece: 10x/18 (Widefield)

  • Power supply: 85-240V, built-in battery charger, detachable power cord

  • Magnification: 40x, 100x, 400x

  • Optical system: DIN (160mm)

Capacity

  • Brightness control: Yes

  • Brightfield: Yes

Mechanics

  • Viewing posture: 45° angled eyepiece, 360° rotatable

  • Specimen stage: Cross table (120 x 120 mm)

  • Focusing: Coarse and fine movement (coaxial, with 0.002 mm division)

  • Type of build: Monocular

Special Features

  • Rechargeable battery operation: Yes

  • Filter holder: Yes

  • Dust cover bag: Yes

General Information

  • Series: BioBlue

  • Suitable for beginners: Yes

  • Field of application: Hobby, Medicine, Education

  • Area of application: Veterinary medicine, Primary School, Secondary school
