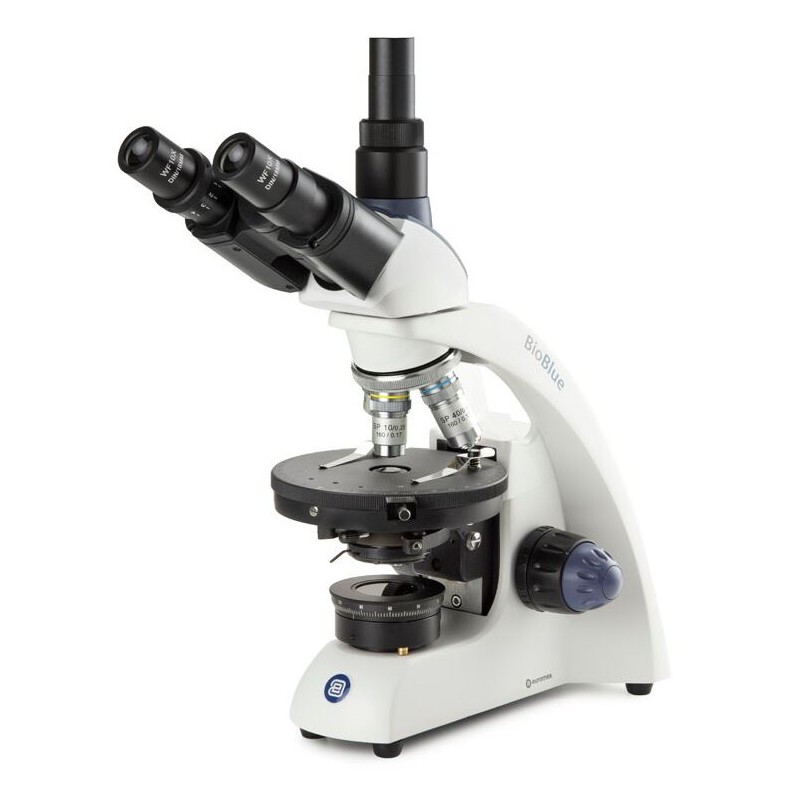

Euromex BioBlue microscope, BB.4241-P-HLED,trino, Pol, DIN, 40x-400x, 10x/18, LED, 1W (79131)

Euromex engineers' many years of combined experience ensure that only the best optical components are used in the development of the BioBlue series, guaranteeing top performance, ensuring clear bright images at every level of magnification. The modern microscopes in the BioBlue series have been specifically designed for education purposes with a focus on ergonomics, and have been developed according to today's quality standards.

Key Features

• Wide Field eyepieces HWF 10x/18

• Monocular models equipped with a pointer in the eyepieces

• Mono- and binocular models with 360° rotatable head

• Revolving nosepiece for 4 objectives

• Semi-plan DIN objectives: 4x, 10x, 20x, S40x, S60x, and S100x-oil

• 120 x 120 mm stage with two object clamps or integrated X-Y translation stage

• Adjustable specimen protection mechanism

• Coaxial coarse and fine adjustment with 0.002 mm graduations

• Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

• Adjustable LED illumination with built-in power supply, rechargeable batteries, and charger

Polarisation Models

• Wide field WF10x/18mm eyepieces, one equipped with cross micrometer

• Analyser and slider mounted under the head

• 360° rotatable polariser on the lamp housing

• Standard H-LED illumination for correct colour rendering

• Height adjustable N.A. 1.25 Abbe condenser with iris diaphragm and filter holder

Specifications (BB.4241-P-HLED)

Optics

• Image scale: 40-400 (4x N.A. 0.10, 10x N.A. 0.25, 40x N.A. 0.65 with specimen protection)

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

• Lamp type: LED

• Lens type: Semi-Plan Achromatic

• Eyepiece: 10x/18 (Widefield)

• Power supply: 85-240V, built-in battery charger, detachable power cord

• Magnification: 40x, 100x, 400x

• Optical system: DIN (160mm)

• Objectives: 4x/0.10, 10x/0.25, and S40x/0.65

Capacity

• Brightness control: Yes

• Brightfield: Yes

Mechanics

• Viewing posture: 45° angled eyepiece, 360° rotatable

• Specimen stage: Cross table (120 x 120 mm)

• Focusing: Coarse and fine movement (coaxial, with 0.002 mm division)

• Type of build: Monocular

Special Features

• Rechargeable battery operation: Yes

• Filter holder: Yes

• Dust cover bag: Yes

General Information

• Series: BioBlue

• Suitable for beginners: Yes

• Contrast methods: Polarization

• Field of application: Hobby, Education

• Area of application: Mineralogy

• Supplier product number: BB.4241-P-HLED
