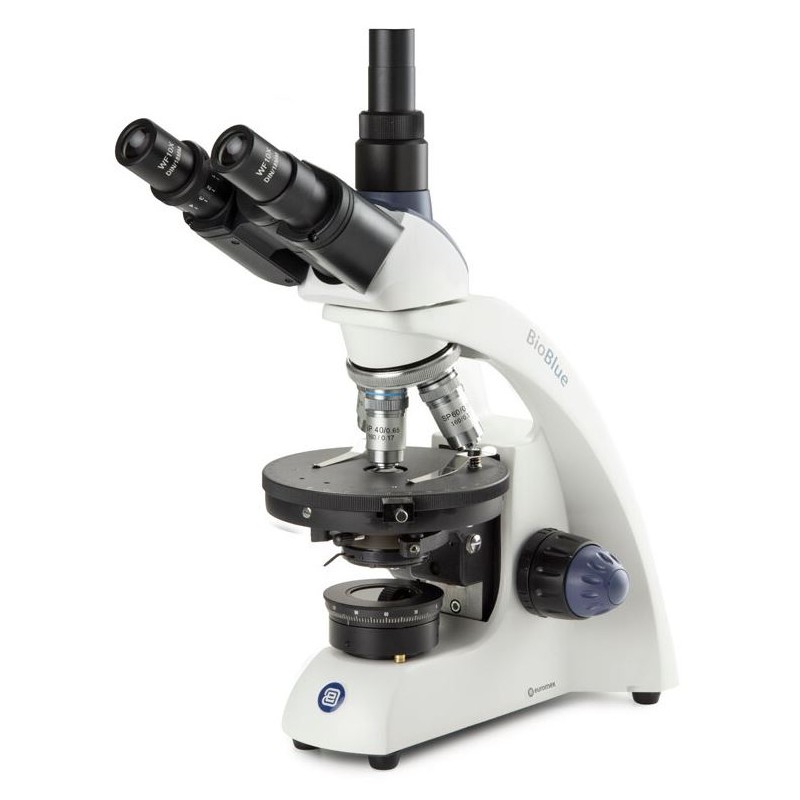

Euromex BioBlue microscope, BB.4243-P-HLED,trino, Pol, DIN, 40x-600x, 10x/18, LED, 1W (79130)

Euromex engineers bring years of expertise to the development of the BioBlue series, ensuring the use of only the highest-quality optical components. This guarantees exceptional performance and provides clear, bright images at every magnification level. The BioBlue microscopes are specifically designed for educational purposes, with a focus on ergonomics and adherence to modern quality standards.

Key Features of Euromex BioBlue

• Wide Field eyepieces HWF 10x/18

• Monocular models equipped with a pointer in the eyepieces

• Mono- and binocular models with 360° rotatable head

• Revolving nosepiece for 4 objectives

• Semi-plan DIN objectives: 4x, 10x, 20x, S40x, S60x, and S100x-oil

• Square stage (120 x 120 mm) with two object clamps or integrated XY cross-stage

• Adjustable specimen protection mechanism to prevent damage to slides and objectives

• Coaxial coarse and fine adjustment with 0.002 mm graduations

• Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

• LED illumination, adjustable, with built-in power supply and rechargeable batteries for cordless operation

BioBlue Series Design

The stylish design of the BioBlue® series sets it apart from other microscopes in its category. It is specially tailored for schools and small laboratories, meeting today's ergonomic and functional standards. The eyepieces are secured, and an integrated table lock prevents accidental damage to slides or objectives during use.

Additional Features

• Monocular or binocular head, 360° rotatable

• Ball-bearing turret for 4 objectives

• Round stage (135 mm) with Vernier scale for polarisation models

• Halogen 20 W illumination available for polarisation microscopes

Polarisation Models

The polarisation models in the BioBlue series include:

• Wide field WF10x/18mm eyepieces, one equipped with a cross micrometer

• Analyser and slider mounted under the head

• 360° rotatable polariser on the lamp housing

• Standard H-LED illumination for accurate colour rendering (similar to halogen light spectrum)

• Integrated power supply (100–240 Vac)

• Height-adjustable N.A. 1.25 Abbe condenser with iris diaphragm and filter holder

 BB.4243-P-HLED

This trinocular polarisation model is equipped with achromatic semi-plan DIN objectives:

• Included objectives: 4x/0.10, 10x/0.25, S40x/0.65, and S60x/0.85

Specifications

Optics

• Image scale: 40–600 (40x, 100x, 600x)

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

• Lamp type: LED

• Lens type: Semi-Plan Achromatic

• Eyepiece: 10x/18 (Widefield)

• Power supply: 85–240V with built-in battery charger and detachable power cord

Magnification Range
Magnifications include 40x, 100x, and 600x.

Optical System
DIN standard (160mm).

Capacity

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics

• Viewing posture: Eyepiece angled at 45°, rotatable at 360°

• Specimen stage: Cross table (120 x 120 mm) for precise specimen placement

• Focusing: Coarse and fine coaxial adjustments (0.002 mm division)

Special Features

• Rechargeable battery operation: Yes

• Filter holder: Yes

• Dust cover bag included: Yes

General Information

• Series: BioBlue

• Suitable for beginners: Yes

Contrast Methods Supported
Polarization: Yes

Field of Application
Hobby: Yes
Education: Yes

Area of Application
University-level use: Yes

Miscellaneous Details
Supplier product number: BB.4243-P-HLED
