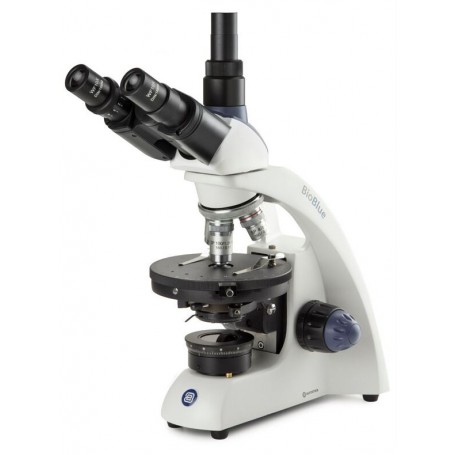

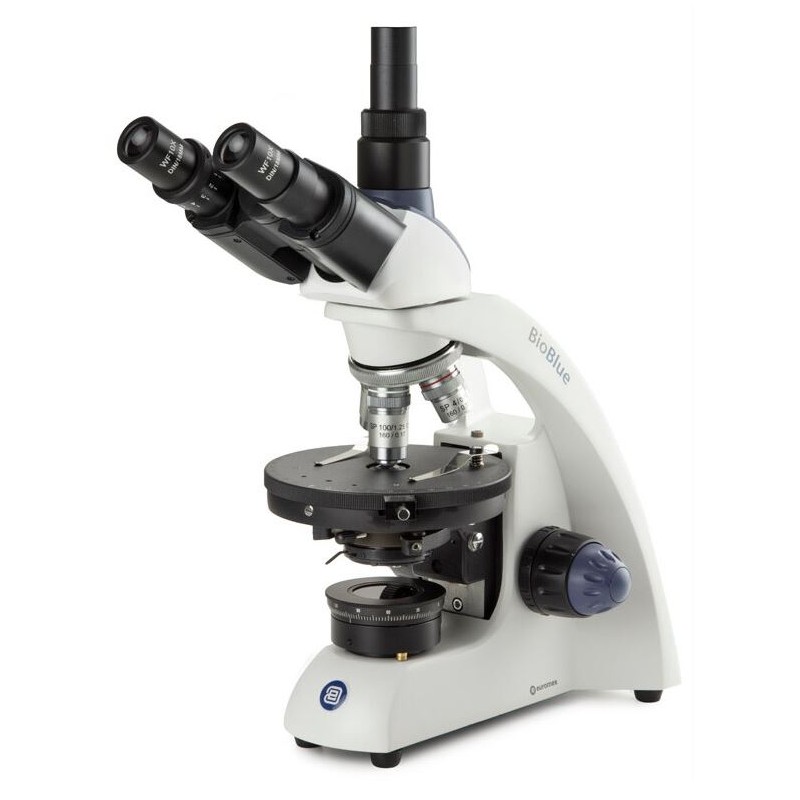

Euromex BioBlue microscope, BB.4253-P-HLED,trino, Pol, DIN, 40x-1000x, 10x/18, LED, 1W (79128)

Euromex engineers' extensive experience ensures that only the finest optical components are used in developing the BioBlue series. This guarantees top performance, delivering clear, bright images at all magnification levels. The modern microscopes in the BioBlue series are specifically designed for educational purposes, focusing on ergonomics and adhering to today's quality standards.

Key Features

• Wide Field eyepieces HWF 10x/18

• Monocular models equipped with a pointer in the eyepieces

• Mono- and binocular models with 360° rotatable head

• Revolving nosepiece for 4 objectives

• Semi-plan DIN objectives: 4x, 10x, 20x, S40x, S60x, and S100x-oil

• 120 x 120 mm stage with two object clamps or integrated X-Y translation stage

• Adjustable specimen protection mechanism

• Coaxial coarse and fine adjustment with 0.002 mm graduations

• Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

• Adjustable LED illumination with built-in power supply, rechargeable batteries, and charger

BioBlue Series Design

The stylish design of the BioBlue® series sets it apart from other microscopes in its category. It is specially tailored for schools and small laboratories, meeting today's ergonomic and functional standards. The eyepieces are secured, and an integrated table lock prevents accidental damage to slides or objectives during use.

Polarisation Models

• Wide field WF10x/18mm eyepieces, one equipped with a cross micrometer

• Analyser and slider mounted under the head

• 360° rotatable polariser on the lamp housing

• Standard H-LED illumination for accurate colour rendering

• Integrated power supply (100-240 Vac)

• Height-adjustable N.A. 1.25 Abbe condenser with iris diaphragm and filter holder

BB.4253-P-HLED

This trinocular polarisation model is equipped with achromatic semi-plan DIN objectives:

• Included objectives: 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 (oil)

Specifications

Optics

• Image scale: 40-1000 (4x N.A. 0.10, 10x N.A. 0.25, 40x N.A. 0.65, 100x N.A. 1.25 oil immersion)

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

• Lamp type: LED

• Lens type: Semi-Plan Achromatic

• Eyepiece: 10x/18 (Widefield)

• Power supply: 85-240V, built-in battery charger, detachable power cord

• Optical system: DIN (160mm)

Capacity

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics

• Viewing posture: 45° angled eyepiece, 360° rotatable

• Specimen stage: Cross table (120 x 120 mm)

• Focusing: Coarse and fine movement (coaxial, with 0.002 mm division)

• Type of build: Trinocular

Special Features

• Rechargeable battery operation: Yes

• Filter holder: Yes

• Dust cover bag included: Yes

General Information

• Series: BioBlue

• Suitable for beginners: Yes

• Contrast methods: Polarization

• Field of application: Hobby, Education

• Area of application: University

• Supplier product number: BB.4253-P-HLED
