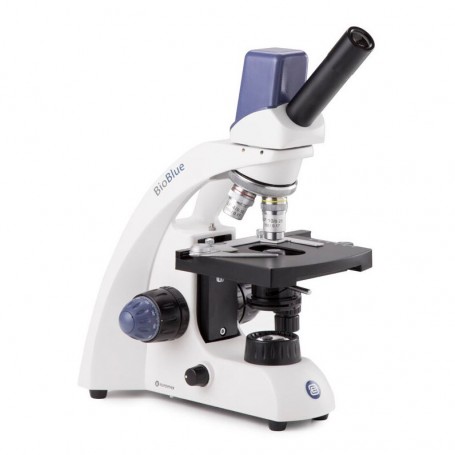

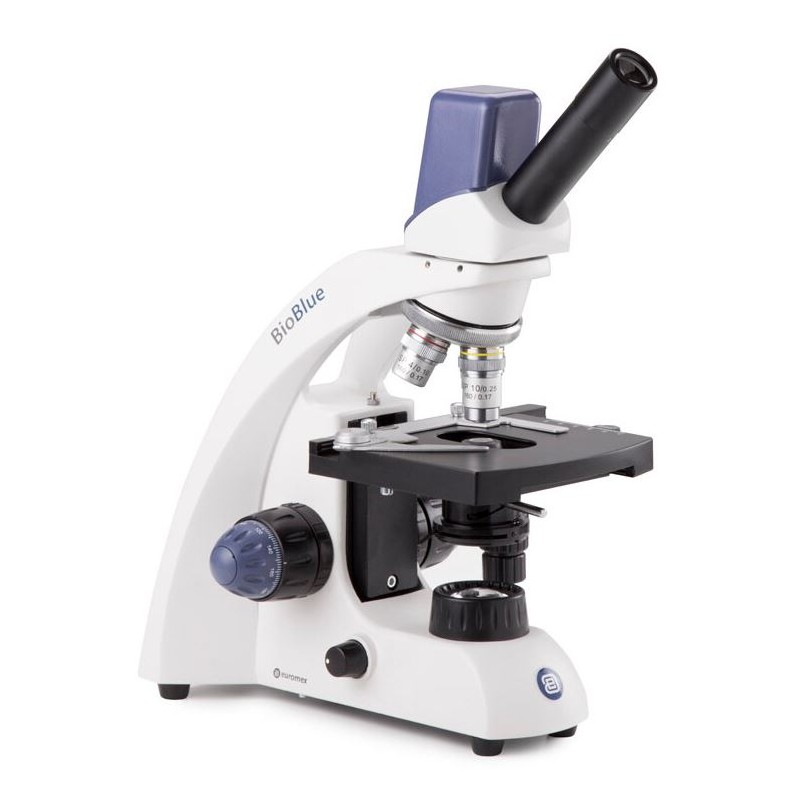

Euromex BioBlue microscope, BB.4245, digital, mono, DIN, 40x - 600x, LED, 1W (75744)

Euromex engineers' extensive experience ensures that only the finest optical components are used in developing the BioBlue series. This guarantees top performance, delivering clear, bright images at all magnification levels. The modern microscopes in the BioBlue series are specifically designed for educational purposes, focusing on ergonomics and adhering to today's quality standards.

BioBlue Digital Models

The digital models in the BioBlue range offer the same functionality as regular models, with the addition of an integrated camera. This provides a compact solution for viewing and capturing microscope images. The supplied software allows users to take photos or videos, display them on a computer monitor or projector, and perform various measurements.

Key Features

• Monocular (45° inclined lens tube) and binocular models (30° inclined lens tube)

• WF 10x/18mm eyepieces (with pointer in monocular models)

• Inverse 4x lens revolver

• Achromatic semi-plan lenses: 4x, 10x, 20x, S40x, S60x, and S100x oil (varies by model)

• Anti-bacterial Protection Layer (APL)

• Stage (130x130mm) with integrated 70x28mm X-Y cross table (except BB.4205 model)

• 1.25 N.A. height-adjustable Abbe condenser with iris diaphragm and filter holder

• LED lighting with integrated 100-240V mains adaptor and 3 NiMH batteries

• 5.0 MP CMOS USB-2 Camera

Camera Specifications

• 5.0MP CMOS sensor

• Maximum resolution: 2560x1920, 24-bit colour depth

• Frame rate: Up to 30 fps

• Includes ImageFocus Plus software, USB-2 cable, and calibration slide

• 2-year warranty

Software Features

• ImageFocus Plus for image capture and analysis

• Save images in JPG, TIF, or BMP format; videos in AVI format

• Annotation and measurement tools for live and saved images

• Compatible with Windows 7, 8, 10, and 11 (32- and 64-bit)

• Mac OS light version available for image capture only

Specifications (BB.4245 Model)

Optics

• Condenser: Abbe 1.25 with iris diaphragm, height-adjustable

• Lamp type: LED

• Lens type: Semi-Plan Achromatic

• Eyepiece: WF 10x/18 with fixed pointer

• Power supply: 85-240V, built-in battery charger, detachable power cord

• Magnification: 40-600x

• Objectives: 4x, 10x, S40x, S60x

• Field curvature: Semi-planachromatic

• Colour correction: Achromatic

Camera

• Megapixels: 5.0

• Connection: USB 2.0

• Frame rate: 30 fps

• Video format: .avi

Mechanics

• Viewing posture: 45° angled eyepiece, 360° rotatable

• Specimen stage: Cross table

• Focusing: Coarse and fine movement (coaxial, 0.002 mm division)

• Type of build: Digital

Special Features

• Rechargeable battery operation

• Filter holder

• Dust cover bag

General Information

• Weight: 3.4 kg

• Series: BioBlue

• Suitable for beginners: Yes

• Field of application: Hobby, Education

• Area of application: Veterinary medicine, Secondary school

• Supplier product number: BB.4245
