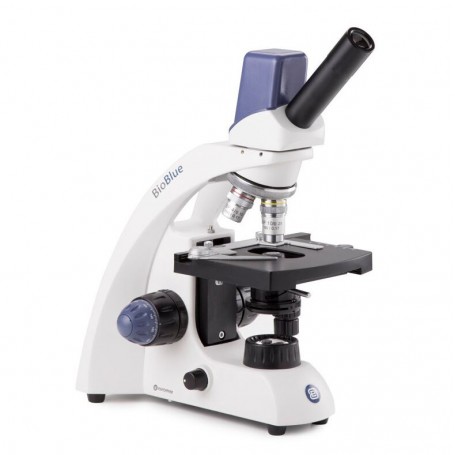

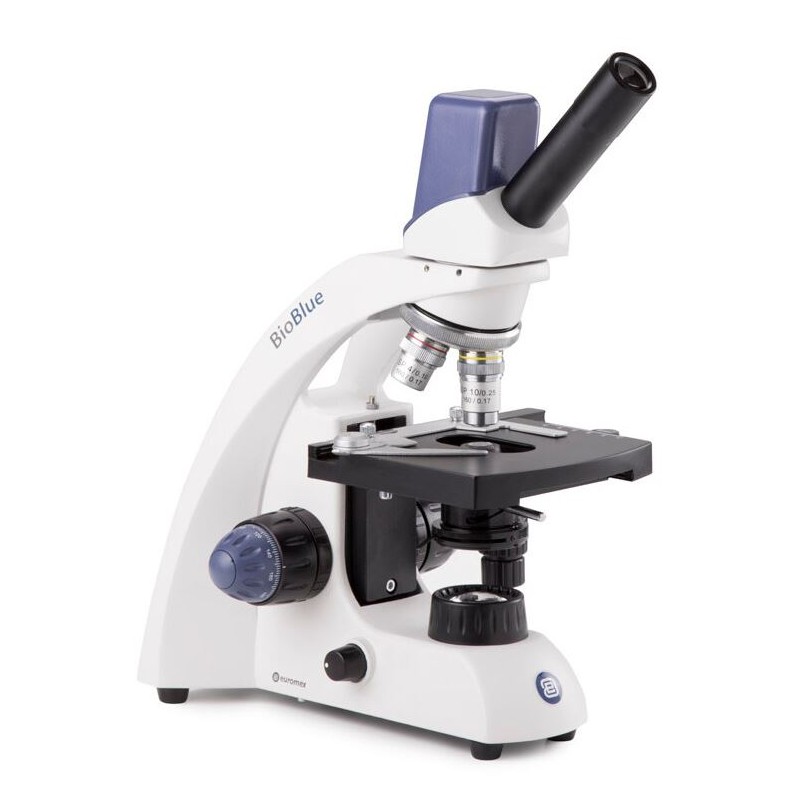

Euromex BioBlue microscope, BB.4255, digital, mono, DIN, 40x - 1000x, 10x/18, LED, 1W (75745)

Euromex engineers bring years of expertise to the development of the BioBlue series, ensuring the use of only the highest-quality optical components. This guarantees exceptional performance and provides clear, bright images at every magnification level. The BioBlue microscopes are specifically designed for educational purposes, with a focus on ergonomics and adherence to modern quality standards.

BioBlue Digital Models

The digital models in the BioBlue range offer the same functionality as regular models, with the addition of an integrated camera. This compact solution allows users to view microscope images, capture photos or videos, and perform measurements using the supplied software.

Key Features

• Monocular (45° inclined lens tube) and binocular models (30° inclined lens tube)

• WF 10x/18mm eyepieces (monocular models include a pointer)

• Inverse 4x lens revolver

• Achromatic semi-plan lenses: 4x, 10x, 20x, S40x, S60x, and S100x oil (varies by model)

• Anti-bacterial Protection Layer (APL)

• Stage (130x130mm) with integrated 70x28mm X-Y cross table (BB.4205 model features a simpler 120x120mm table with two fixed object clamps)

• 1.25 N.A. height-adjustable Abbe condenser with iris diaphragm and filter holder

• Lighting options: 1W LED for monocular models; 1W NeoLED for binocular and trinocular models with integrated mains adaptor (100-240V) and three NiMH batteries

• 5.0 MP CMOS USB-2 Camera

Camera Specifications

• Sensor: 5.0MP CMOS

• Maximum resolution: 2560x1920, 24-bit colour depth

• Frame rate: Up to 30 frames per second

• Includes ImageFocus Plus software, USB-2 cable, and calibration slide (1 mm/100 micrometer)

• Warranty: Two years

Software Features

• ImageFocus Plus software enables image capture and analysis

• Save images in JPG, TIF, or BMP format; videos in AVI format

• Annotate images with comments and perform measurements on live or saved images

• Compatible with Windows 7, 8, 10, and 11 (32-bit and 64-bit configurations)

• Mac OS light version available for image capture only

• Software updates available for download

Specifications (BB.4255 Model)

Optics

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder (height-adjustable)

• Lamp type: LED

• Lens type: Semi-Plan Achromatic

• Eyepiece: WF 10x/18 with fixed pointer

• Power supply: 85–240V built-in battery charger with detachable power cord

• Magnification: 40–1000x

• Objectives: 4x, 10x, S40x, S100x oil immersion

• Field curvature: Semi-planachromatic

• Colour correction: Achromatic

Camera

• Megapixels: 5.0MP CMOS sensor

• Connection type: USB 2.0

• Frame rate: Up to 30 fps

• Video format: .avi

Mechanics

• Viewing posture: Eyepiece angled at 45°, rotatable at 360°

• Specimen stage: Cross table for precise specimen placement

• Focusing mechanism: Coarse and fine coaxial adjustments (0.002 mm division)

Special Features

• Rechargeable battery operation included

• Filter holder available

• Dust cover bag provided

General Information

• Weight: 3.4 kg

• Series name: BioBlue

• Suitable for beginners: Yes

Field of Application
Hobby use: Yes
Education use: Yes

Area of Application
Veterinary medicine use: Yes
Secondary school use: Yes

Miscellaneous Details
Supplier product number: BB.4255
