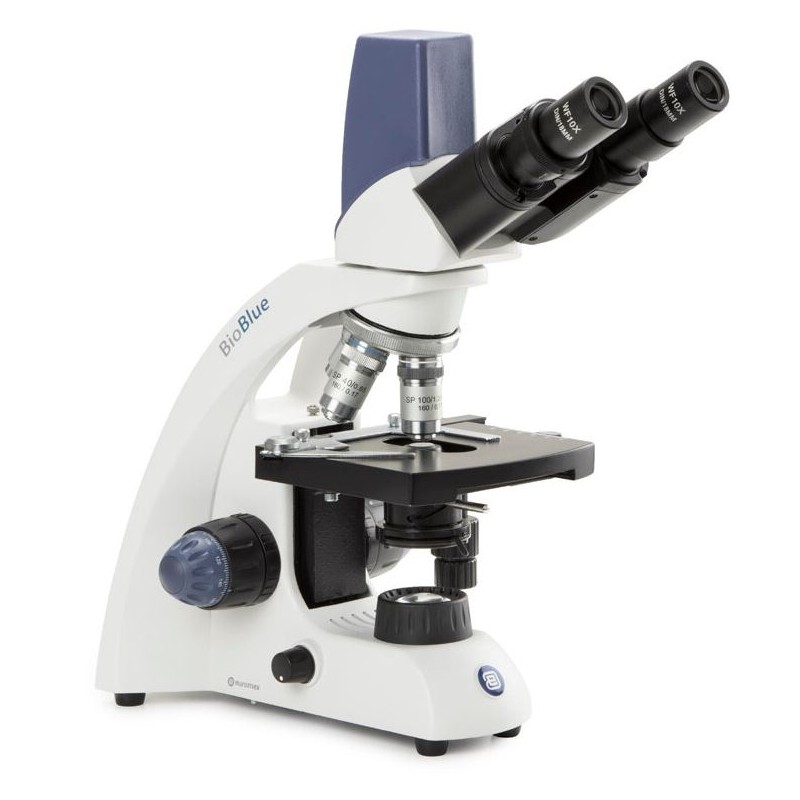

Euromex BioBlue microscope, BB.4267, digital, bino, DIN, 40x-1000x, 10/18, NeoLED, 1W (75746)

Euromex engineers, with their extensive experience, ensure that only the highest-quality optical components are used in the development of the BioBlue series. This guarantees top performance and delivers clear, bright images at every magnification level. The BioBlue microscopes are specifically designed for educational purposes, focusing on ergonomics and meeting today's quality standards.

BioBlue Digital Models

The digital models in the BioBlue range offer the same functionality as the regular models, with the addition of an integrated camera. This compact solution allows users to view microscope images, capture photos or videos, and perform measurements using the supplied software.

Key Features of Digital Models

• Monocular (45° inclined lens tube) and binocular models (30° inclined lens tube)

• WF 10x/18mm eyepieces (monocular models include a pointer)

• Inverse 4x lens revolver

• Achromatic semi-plan lenses: 4x, 10x, 20x, S40x, S60x, and S100x oil (varies by model)

• Anti-bacterial Protection Layer (APL)

• Stage (130 x 130 mm) with integrated 70 x 28 mm X-Y cross table (BB.4205 model features a simpler 120 x 120 mm stage with two fixed object clamps)

• 1.25 N.A. height-adjustable Abbe condenser with iris diaphragm and filter holder

• Lighting options: 1W LED for monocular models; 1W NeoLED for binocular and trinocular models with integrated mains adaptor (100–240V) and three NiMH batteries

• 5.0 MP CMOS USB-2 Camera

Camera Specifications

• Sensor: 5.0MP CMOS

• Maximum resolution: 2560 x 1920, 24-bit colour depth

• Frame rate: Up to 30 frames per second

• Includes ImageFocus Plus software, USB-2 cable, and calibration slide (1 mm/100 micrometer)

• Warranty: Two years

Software Features

• ImageFocus Plus software enables image capture and analysis

• Save images in JPG, TIF, or BMP format; videos in AVI format

• Annotate images with comments and perform measurements on live or saved images

• Compatible with Windows 7, 8, 10, and 11 (32-bit and 64-bit configurations)

• Mac OS light version available for image capture only

BB.4267

• Binocular model with a 30° inclined lens tube

• WF 10x/18 mm eyepieces

• Inverse 4x lens revolver

• Achromatic semi-plan lenses: 4x, 10x, S40x+, S100x oil immersion

• Anti-bacterial Protection Layer (APL) included

• Stage size: 130 x 130 mm with integrated X-Y cross table (70 x 28 mm)

• Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

• NeoLED lighting system (1W), powered by an integrated mains adaptor (100–240V) and three NiMH batteries

• Integrated camera: 5.0 MP CMOS USB-2

Specifications

Optics

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder (height-adjustable)

• Lamp type: LED

• Lens type: Semi-Plan Achromatic

• Eyepiece: WF 10x/18 with fixed pointer

• Power supply: Built-in battery charger with detachable power cord (85–240V)

• Magnification range: 40–1000x

• Objectives:

  • Objective 1: 4x

  • Objective 2: 10x

  • Objective 3: S40x

  • Objective 4: S100x oil immersion

• Field curvature: Semi-planachromatic

• Colour correction: Achromatic

Camera

• Megapixels: 5.0MP CMOS sensor

• Connection type: USB 2.0

• Frame rate: Up to 30 fps

• Video format supported: .avi

Mechanics

• Viewing posture: Eyepiece angled at 30°, rotatable at 360°

• Specimen stage: Cross table for precise specimen placement

• Focusing mechanism: Coarse and fine coaxial adjustments (0.002 mm division)

Special Features

• Rechargeable battery operation included

• Filter holder available

• Dust cover bag provided

General Information
Weight: Approx. 4.1 kg
Series name: BioBlue
Suitable for beginners: Yes

Field of Application
Hobby use: Yes
Education use: Yes

Area of Application
Veterinary medicine use: Yes

Miscellaneous Details
Supplier product number: BB.4267
