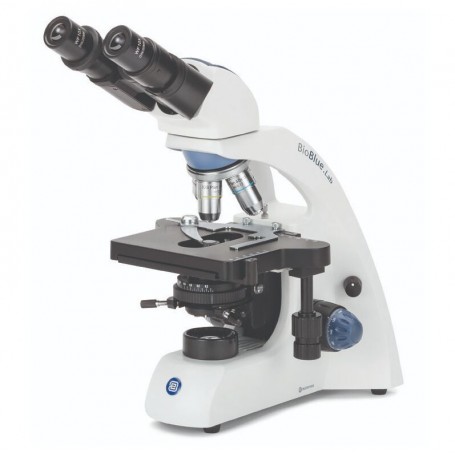

Euromex Microscope BioBlue LAB, BB.1152-PLi, Bino, infinity, flat, 40x-1000x, NeoLED, 3W (75984)

The BlueLine flagship BioBlue.Lab is a high-precision microscope designed to meet the rigorous demands of educational and laboratory applications. These ergonomic and user-friendly instruments are particularly suited for cytology and histopathology tasks. The 150 x 140 mm rackless mechanical stage, with a 75 x 30 mm X-Y travel range, ensures smooth specimen translation and precise positioning. Equipped with advanced optics, NeoLED illumination, and robust construction, the BioBlue.Lab models are available in both binocular and trinocular versions.

Key Features:

• Binocular and trinocular models

• Reversed quadruple nosepiece

• Plan and plan phase objectives

• Finity and infinity optical systems

• Integrated mechanical stage

• NeoLED illumination system

• Ergonomic carrying grip

Eyepieces:
Wide field WF 10x/20 mm eyepieces for clear and expansive viewing.

Head:

• Binocular and trinocular heads feature 30° inclined Ø30 mm tubes.

• Adjustable interpupillary distance (48 to 75 mm).

• ±5 diopter adjustment on the left tube.

• Heads are rotatable 360° and secured with a screw.

• Trinocular models include a fixed light path beamsplitter (50:50) for erect image generation.

Nosepiece:
Reversed quadruple nosepiece mounted on ball bearings for smooth objective switching.

Objectives:

• Equipped with plan, plan IOS, plan phase, and plan phase IOS objectives.

• Optional objectives include 20x/0.40 and S60x/0.85.

• Spring-loaded S40x, S60x, and S100x objectives.

• All optics are anti-fungus treated and anti-reflection coated for optimal light throughput.

Focusing:

• Coaxial coarse and fine adjustments with 200 graduations.

• Precision of 1.5 μm per graduation (0.3 mm per rotation).

• Total travel approximately 28 mm.

• Adjustable rack stop prevents sample or objective damage.

• Friction control integrated into coarse adjustments.

Stage:
Rackless mechanical stage measuring 150 x 140 mm with X-Y translation stage (75 x 30 mm).

Condenser:

• Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder (white filter included).

• Optional Zernike phase contrast kit featuring PLPHi IOS objectives, rotating phase contrast disc with four annuli, centering telescope, and green filter.

Illumination:
Adjustable 3 W NeoLED illumination system provides enhanced light output. Power supply supports integrated 100–240 Vac operation.

Weight:
Approximately 5.5 kg.

Packaging:
Includes power cord, dust cover, spare fuse, user manual, immersion oil (5 ml), white filter—all securely packed in a polystyrene box.

Specifications:

• Optics:

  • Magnification range: 40–1000x

  • Infinity corrected: Yes

  • Field curvature: Plan

• Lighting:

  • Transmitted light via LED

• Eyepiece:

  • EWF 10x/20 mm

• Objectives:

  • Objective 1: 4x / 0.10

  • Objective 2: 10x / 0.25

  • Objective 3: S40x / 0.65

  • Objective 4: S100x / 1.25 (immersion lens)

• Condenser:

  • Abbe N.A. 1.25 (focus adjustable with iris diaphragm)

• Mechanics:

  • Build type: Binocular

  • Focusing mechanism: Coarse and fine movement

  • Stage type: Cross table

• General Dimensions:

  • Weight: Approx. 5500 g

  • Width: 205 mm

  • Length: 260 mm

  • Height: 377 mm

• Applications:

  • Ideal for medicine, veterinary medicine, education, and technical training.

This comprehensive design ensures the BioBlue.Lab is a reliable choice for demanding microscopy tasks in both academic and professional settings.
