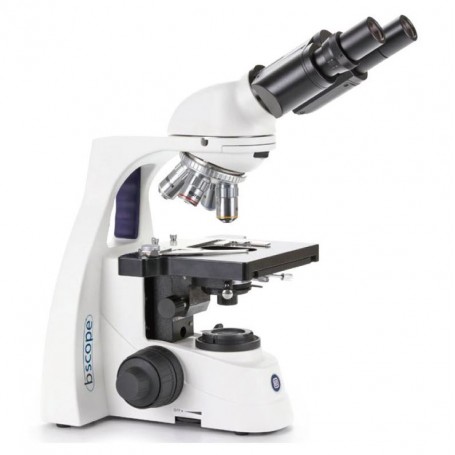

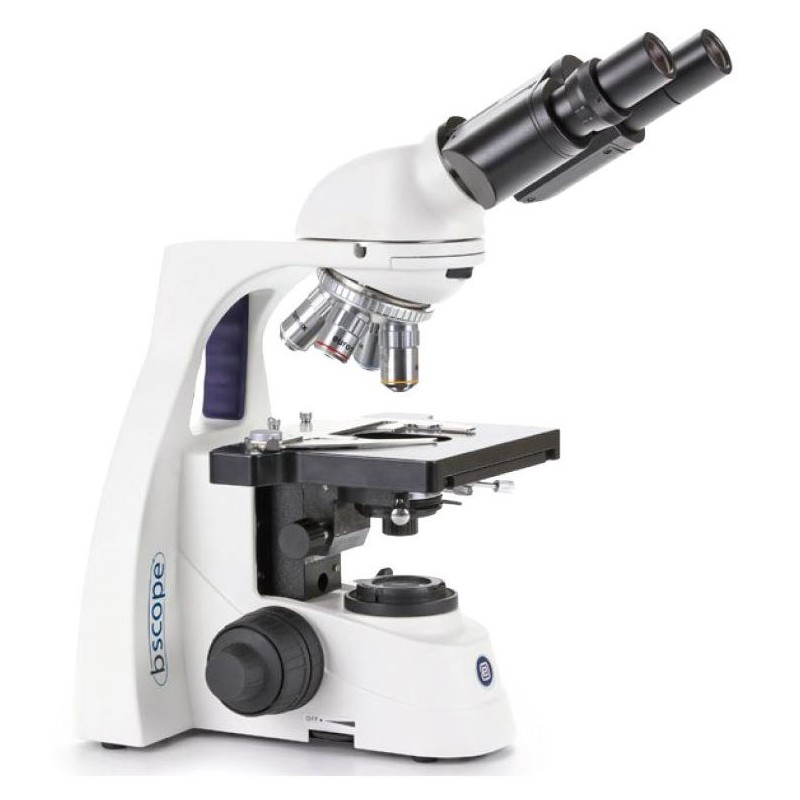

Euromex Microscope BS.1152-EPL, bino, 40x-1000x (55365)

The bScope microscope series offers versatile and evolutive instruments designed for use in secondary schools, universities, small to mid-sized laboratories, and veterinary applications. These robust and attractively priced microscopes feature excellent ergonomic design and are available in various configurations.

Key Features:

• Versatile and evolutive design

• HWF 10x/20 mm eyepieces

• E-plan, E-plan IOS, and Plan IOS objectives for bright field and phase contrast

• Rackless integrated X-Y mechanical stage

• 1.5 W LED illumination with optional rechargeable batteries

• Cable Storage System

• Integrated carrying grip

Optical System:

• High wide field HWF 10x/20 mm secured eyepieces with 20 mm field of view

• Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes

• Revolving and reversed ball-beared quadruple or quintuple nosepiece

• State-of-the-art objectives with multi-layer coatings and spherical aberration correction

Focusing and Stage:

• Double coaxial, low-positioned coarse and fine adjustments

• Scratch-resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage

• Optional heating stage (up to 50° Celsius)

Illumination:

• 1.5 W NeoLED adjustable illumination system

• Köhler illumination for infinity corrected IOS models

• Optional rechargeable batteries for cordless use

Additional Features:

• Cable Storage System for easy cable management

• Integrated carrying grip for safe transportation

• Anti-theft slot to prevent unauthorized removal

Model BS.1152-EPL Specifications:

• Binocular design

• Magnification: 40x to 1000x

• E-plan objectives: 4x, 10x, S40x, and S100x

• Rackless integrated X-Y mechanical stage

• Quadruple nosepiece

• NeoLED illumination

• Suitable for brightfield applications in veterinary medicine and parasite analysis

This versatile microscope series combines ergonomic design, high-quality optics, and robust construction to meet the needs of various scientific and educational applications.
