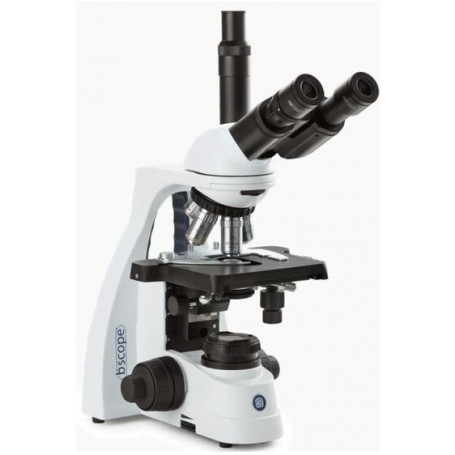

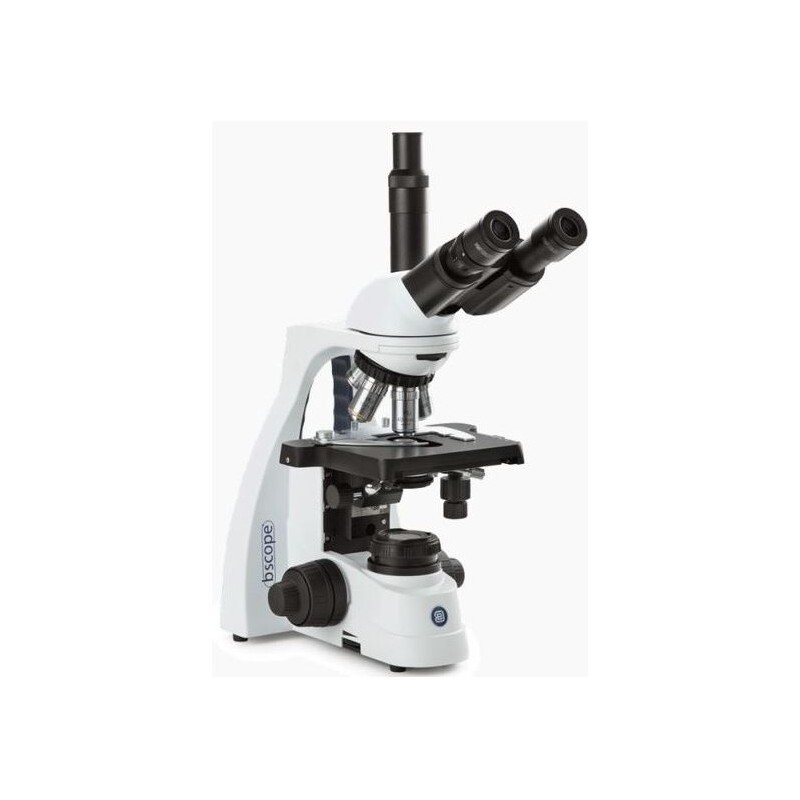

Euromex Microscope BS.1153-EPL, trino, 40x-1000x (55366)

The bScope series offers well-equipped microscopes widely used in secondary schools, universities, small to mid-sized laboratories, and veterinary applications. These robust and attractively priced instruments combine excellent ergonomic design with versatility, available in various configurations for bright field and phase contrast microscopy.

Key Features:

• Ergonomic and evolutive design

• HWF 10x/20 mm eyepieces

• E-plan, E-plan IOS, and Plan IOS objectives

• Rackless integrated X-Y mechanical stage

• 1.5 W LED illumination with optional rechargeable batteries

• Cable Storage System

• Integrated carrying grip

Optical System:

• Siedentopf type head, 360° rotatable, 30° inclined

• Interpupillary distance: 48-76 mm

• Diopter adjustment: ±5 on left eyepiece (binocular and trinocular models)

• Revolving quadruple or quintuple nosepiece

• Objectives: Bright field and phase contrast options available

• Anti-fungus treated and anti-reflection coated optics

Focusing and Stage:

• Coaxial coarse and fine focus adjustments

• Precision: 1.11 µm, 200 µm per rotation

• 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage

• Optional heating stage (up to 50°C)

Illumination:

• 1.5 W NeoLED adjustable illumination system

• 100-240 Vac integrated power supply

• Optional Köhler illumination for enhanced contrast and resolution

• Optional rechargeable batteries for cordless use

Additional Features:

• Cable Storage System for neat cable management

• Integrated carrying grip for safe transportation

• Anti-theft slot

Packaging and Accessories:

• Environmentally-friendly Styrofoam packaging

• Includes power cord, dust cover, tools, spare fuse, white filter, user manual, and immersion oil

• Phase contrast models include green filter and centering telescope

Model Highlight: BS.1153-EPL

• Trinocular head

• HWF 10x/20 mm eyepieces

• Rackless integrated X-Y mechanical stage

• Quadruple nosepiece

• E-plan 4x/10x/S40x/S100x objectives

• NeoLED illumination

Specifications:

• Magnification: 40-1000x

• Eyepieces: EWF 10x/20 mm

• Objectives: 4x, 10x, S40x, S100x (E-Plan)

• Condenser: Abbe N.A. 1.25

• Focusing: Coarse and fine movement (200 x 1µm)

• Stage: Cross table (140 x 160 mm, x/y 79 x 52 mm)

• Dimensions: 210 x 255 x 407 mm (W x L x H)

• Weight: 9000 g

The bScope series offers a comprehensive solution for various microscopy needs, combining quality optics, ergonomic design, and versatile features in a robust and attractively priced package.
