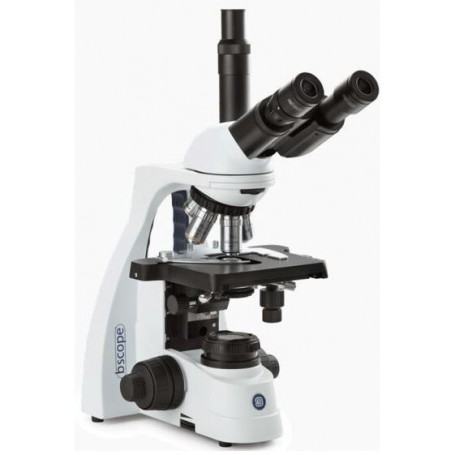

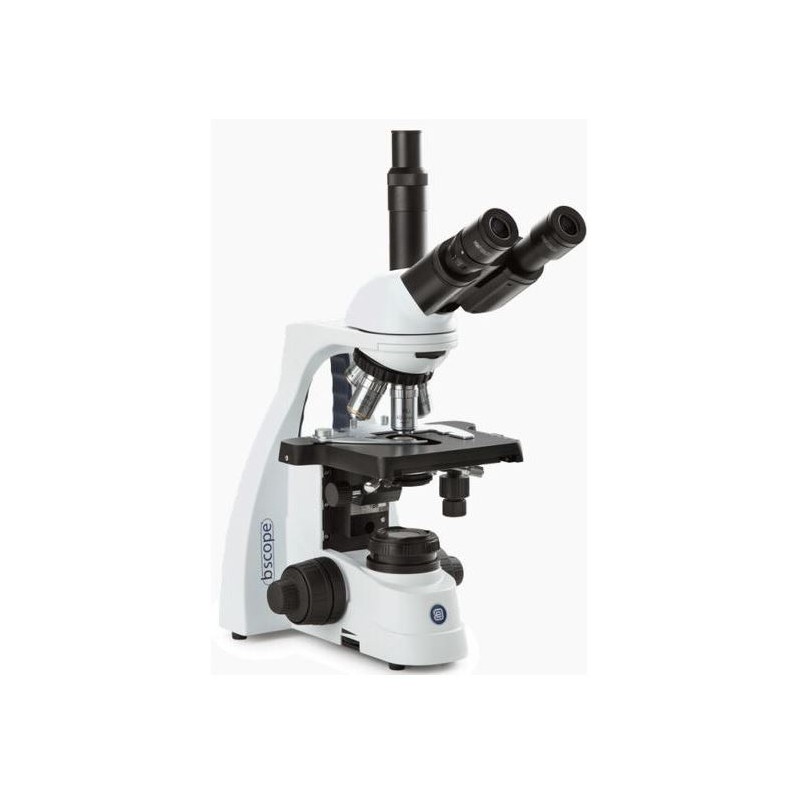

Euromex Microscope BS.1153-EPLi, trino, 40x-1000x (55368)

The bScope microscope series offers versatile and evolutive instruments designed for use in secondary schools, universities, small to mid-sized laboratories, and veterinary applications. These robust and attractively priced microscopes feature excellent ergonomic design and are available in various configurations.

The bScope series includes various models suitable for bright field and phase contrast microscopy. For example, the BS.1153-EPLi model features a trinocular head, HWF 10x/20 mm eyepieces, rackless integrated X-Y mechanical stage, quintuple nosepiece, E-plan IOS 4/10/S40/S100x objectives, Köhler NeoLED illumination, and a 2-position swiveling ergo head.

Key Features:

• Ergonomic and evolutive design

• HWF 10x/20 mm eyepieces

• E-plan, E-plan IOS, and Plan IOS objectives for bright field and phase contrast

• Rackless integrated X-Y mechanical stage

• 1.5 W LED illumination with optional rechargeable batteries

• Cable Storage System

• Integrated carrying grip

Optical System:

• High wide field HWF 10x/20 mm secured eyepieces with 20 mm field of view

• Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes

• Revolving and reversed ball-beared quadruple or quintuple nosepiece

• State-of-the-art objectives with multi-layer coatings and spherical aberration correction

Focusing and Stage:

• Double coaxial, low-positioned coarse and fine adjustments

• Scratch-resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage

• Optional heating stage (up to 50° Celsius)

Illumination:

• 1.5 W NeoLED adjustable illumination system

• Köhler illumination for infinity corrected IOS models

• Optional rechargeable batteries for cordless use

Additional Features:

• Cable Storage System for easy cable management

• Integrated carrying grip for safe transportation

• Anti-theft slot to prevent unauthorized removal
