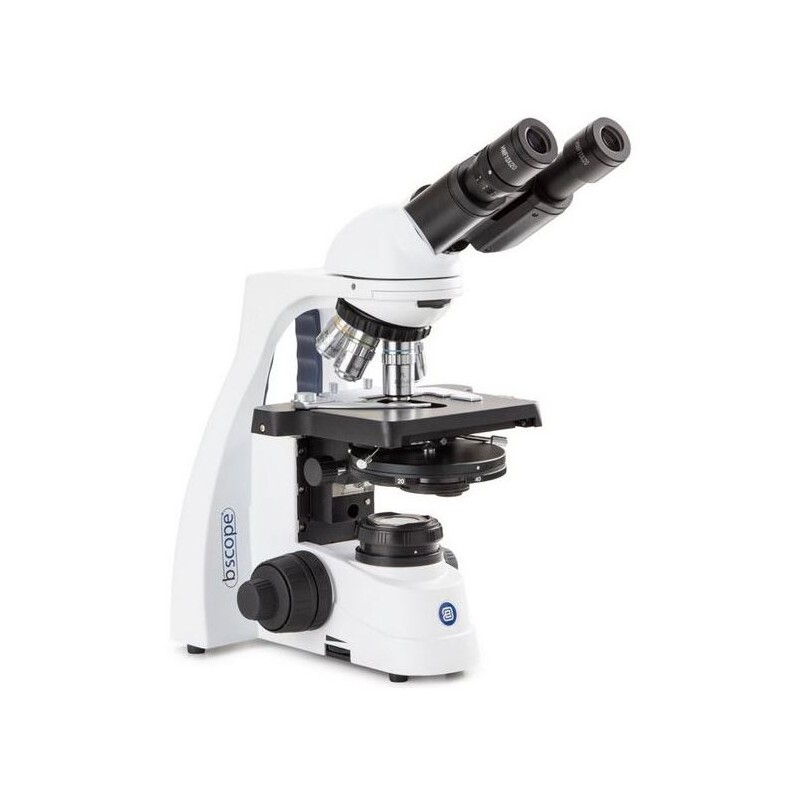

Euromex Microscope BS.1152-PLPHi, bino, 40x-1000x (55375)

The bScope microscope series offers versatile and evolutive instruments widely used in secondary schools, universities, small to mid-sized laboratories, and veterinary applications. These robust and attractively priced microscopes feature excellent ergonomic design and are available in various configurations.

Key Features:

• Versatile and evolutive design

• HWF 10x/20 mm eyepieces

• E-plan, E-plan IOS, and Plan IOS objectives for bright field and phase contrast

• Rackless integrated X-Y mechanical stage

• 1.5 W LED illumination with rechargeable batteries

• Cable Storage System

• Integrated carrying grip

Optical Components:

• Eyepieces: High wide field HWF 10x/20 mm secured eyepieces with 20 mm field of view

• Head: Siedentopf type, 360° rotatable, with 30° inclined Ø 23.2 mm tubes

• Nosepiece: Revolving and reversed ball-beared quadruple or quintuple

• Objectives: State-of-the-art production techniques and multi-layer coatings for demanding applications

Focusing and Stage:

• Double coaxial, low-positioned coarse and fine adjustments

• Scratch-resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage

Illumination and Accessories:

• 1.5 W NeoLED adjustable illumination system

• Köhler illumination for infinity corrected IOS models

• Optional rechargeable batteries for cordless use

• Cable Storage System for safer operation and easy storage

• Integrated carrying grip and anti-theft slot

Specifications (BS.1152-PLPHi model):

• Magnification: 40 - 1000x

• Infinity corrected: Yes

• Field curvature: Plan

• Lighting: LED transmitted light

• Eyepiece: EWF 10x / 20 mm

• Number of objectives: 5

• Contrast methods: Phase contrast, brightfield, dark field

• Type of build: Binocular

• Weight: 9000 g

• Dimensions: 210 mm (W) x 255 mm (L) x 407 mm (H)

The bScope microscope series combines versatility, ergonomic design, and high-quality optics, making it suitable for a wide range of applications in education, research, and veterinary medicine.
