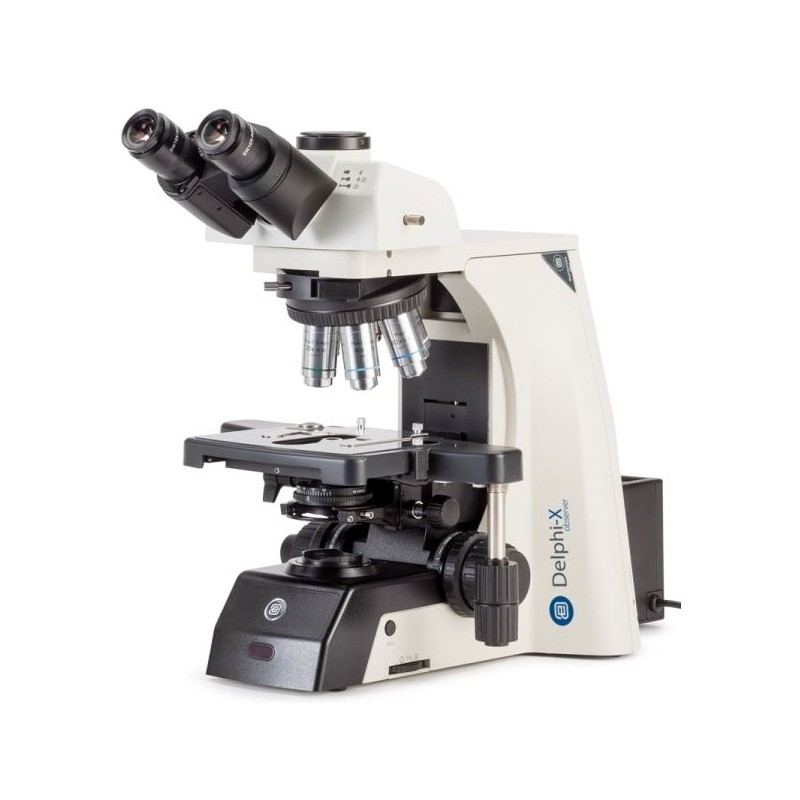

Euromex Microscope DX.1153-PLPHi, phase, trino, infinity, 40x - 1000x (53312)

The Delphi-X Observer is a state-of-the-art microscope designed for advanced life science applications, particularly cytology and anatomopathology. Its ergonomic design and cutting-edge objectives provide exceptional performance for demanding research and clinical work.

Key Features:

• 25 mm field of view eyepieces

• Unsurpassed 60 mm EIS objectives

• Sextuple revolver

• Large rackless stage with scratch-resistant Gorilla glass

• Ergonomic design with low stage controls for left or right-handed users

• Optional ergonomic tilting head

Optical Specifications:

• Lighting: Transmitted light

• Condenser: Height-adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10x, 20x, 40x, and S100x-oil objectives

• Lamp type: LED (100 W Halogen equivalent)

• Eyepiece: SWF 10x/25mm (Ø 30mm)

• Magnification range: 100x - 1000x

• Objectives:

  1. 10x/0.26, plan, phase, infinity, WD 10.2 mm

  2. 20x/0.41, plan, phase, infinity, WD 12.0 mm

  3. 40x/0.66, plan, phase, infinity, WD 0.7 mm

  4. 100x/1.25, plan, phase, infinity, oil, WD 0.15 mm

• Optical system: Infinity corrected

Imaging Capabilities:

• Dark field

• Phase contrast

• Brightfield

Mechanical Features:

• Type of build: Trinocular

• Viewing posture: 30° angled eyepiece

• Specimen stage: Cross table (190 x 152 mm / 78 x 32 mm)

• Revolver: 6-position

Special Features:

• Dust cover bag

• Filter holder

• Centering stage

General Information:

• Series: Delphi-X Observer

• Weight: 9000g

Applications:

• Medicine

• Biology

• Education

• University research

• Internal medicine

• Dermatology

• Marine Biology

• Botany

• Microbiology

• Cytology & Pathology

• Central laboratories

Additional Features:

• NeoLED™ illumination system

• iCare sensor for automatic shut-off

• Integrated carrying grip and tool holder

The Delphi-X Observer combines superior optics, versatile imaging capabilities, and ergonomic design to provide an excellent microscope for a wide range of life science applications in both research and clinical settings.
