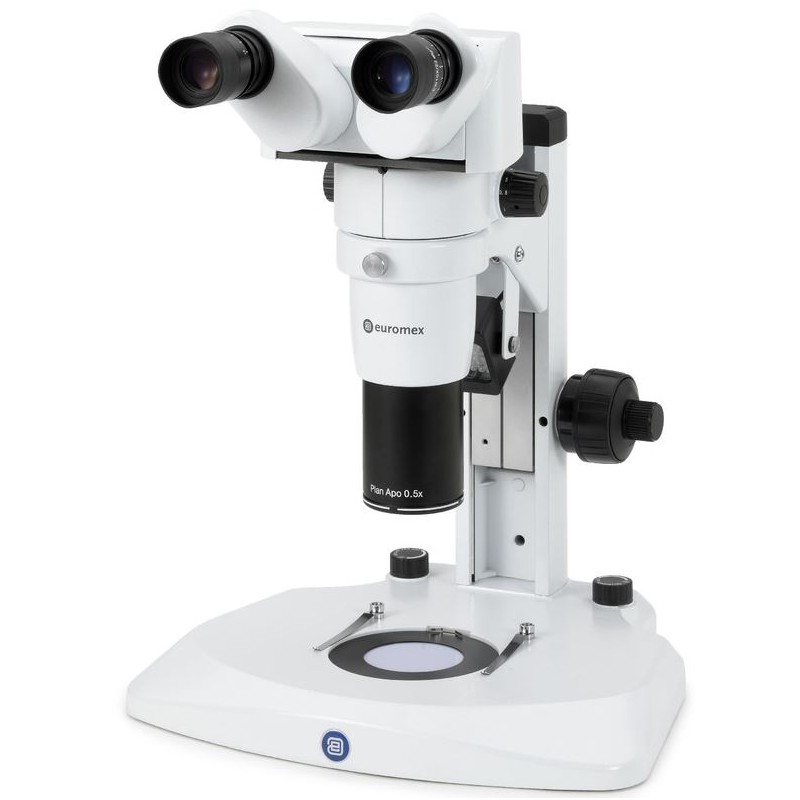

Euromex stereo zoom microscope DZ.1100, ergo bino head 8x-80x, LED (47012)

The Euromex DZ series represents a modern line of modular stereomicroscopes built around a central zoom body. These microscopes are available in three zoom ratio options: 1:6.3, 1:8, and 1:10. The DZ series, along with the Euromex D series, stands at the pinnacle of Euromex's stereomicroscope offerings.

Key Features:

• Extra Wide Field eyepieces

• Plan Apochromatic 0.5x, 1x, and 2x common objectives

• Ergonomic stereo head with 5-35° inclined tubes or fixed stereo head with 45° inclined tubes

• Stand with incident and transmitted LED illuminations

• Six standard configurations available for magnifications from 8x to 80x

• Customizable configurations for magnifications from 4x up to 160x

Optical System:

• Highly precise Infinity Parallel Zoom body

• Plan Apochromatic corrected common main objective

• High contrast images and resolving power for high-tech applications

• Choice of 1:6.3, 1:8, or 1:10 zoom ratio bodies

• Three different Plan Achromatic common main objectives (0.5x, 1.0x, 2.0x)

• Standard Extended Wide Field EWF10x/22 corrected eyepieces

• Optional WF 15x/16 and WF 20x/12 eyepieces for magnifications up to 320x

Stereo Head Options:

• Fixed 20° binocular head

• Ergonomic head with adjustable inclination from 5° to 35°

Specifications (Model DZ.1100):

• Optics:

  • Magnification: 8-80x

  • Image scale: 1:10

  • Eyepiece: EWF 10x/22

  • Optical system: CMO (Common Main Objective)

  • Central zoom body: 0.8 - 6.4x with click-stop

  • Plan apochromatic 1x objective

  • Fields of view: 27.5 - 4.4 mm

• Lighting:

  • Incident and transmitted LED illumination

  • Brightness control: Yes

• Mechanics:

  • Working distance: 78 mm

  • Viewing posture: 5-35° adjustable

  • Type of build: Binocular

• General:

  • Series: DZ

Applications:

• Industry

• Medicine

• Education

• Biology

• Mineralogy

• Metallurgy

• Materials technology

• University research

• Materials Science

• Marine Biology

The Euromex DZ series offers a versatile and high-performance solution for various scientific and industrial applications, providing excellent optical quality and ergonomic design for comfortable extended use.
