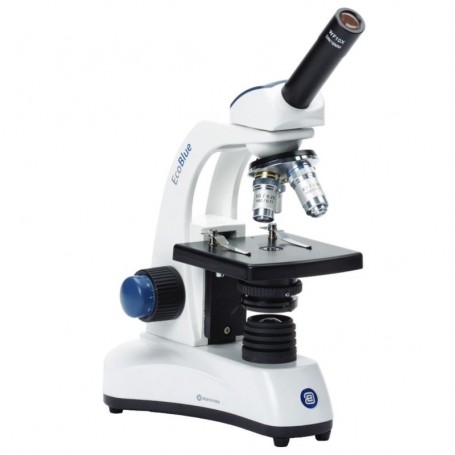

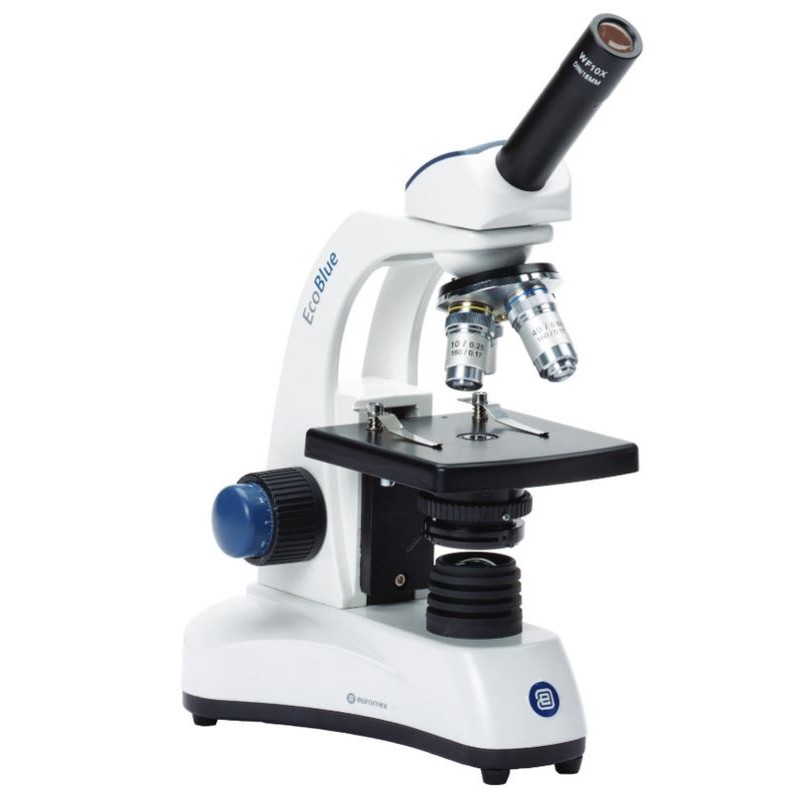

Euromex Microscope EC.1151, mono, 40x, 100x, 400x, 1000x (49774)

The EcoBlue microscope series offers a range of high-quality optical instruments suitable for educational and hobby use. These microscopes feature advanced optics, versatile illumination options, and ergonomic design for comfortable viewing.

519.48 $
Tax included

422.34 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The EcoBlue microscope series offers a range of high-quality optical instruments suitable for educational and hobby use. These microscopes feature advanced optics, versatile illumination options, and ergonomic design for comfortable viewing.

Key Features:

Eyepiece: Secured DIN WF 10x/18 mm with pointer

Head: Monocular 45° inclined tube and binocular 30° inclined tubes. Digital versions include a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x1024 pixels

Nosepiece: Revolving quadruple forwarded nosepiece on ball-bearings. Polarization models equipped with swing-in analyzer

Objectives: Standard achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 objectives. Optional 20x/40, S60x/0.85 and S100x/1.25 objectives available. All optics are antifungus treated and anti-reflection coated

Stage: Plain 123 x 119 mm stage with 2 object clamps (EC.1x5x models have integrated mechanical X-Y stage). Polarization models feature a 360° rotatable 129 mm round stage

Condenser: Height-adjustable Abbe condenser

Focusing: Axial coarse and 200 µm fine adjustments, 2 µm precision, with friction adjustment

Illumination: 1 W intensity adjustable LED illumination with internal power supply. Models with integrated mechanical stage have internal batteries. Polarization models use halogen illumination (LED available on request)

Software: ImageFocus 4 capture & analysis software included with digital models (Windows XP, Vista, 7 & 8 compatible, 32/64-bit)





EC.1151 Model Specifications:

  • Tube: Monocular, 45° inclined

  • Objectives: Achromatic 4x/0.13, 10x/0.25, 40x/0.65 spring, 100x/1.25 spring

  • Stage: X-Y stage

  • Condenser: Abbe NA 1.25 with iris diaphragm and filter holder

  • Illumination: 1W adjustable LED

  • Power supply: Internal rechargeable batteries

General Specifications:

  • Magnification: 40-1000x

  • Optical system: DIN (160mm)

  • Brightness control: Yes

  • Viewing angle: 45° oblique

  • Focusing: Coarse and fine movement (coaxial, 0.002 mm division)

  • Weight: 2950g

  • Dimensions: 214 x 170 x 360 mm (L x W x H)

  • Series: EcoBlue

  • Suitable for: Beginners, education, and hobby use
