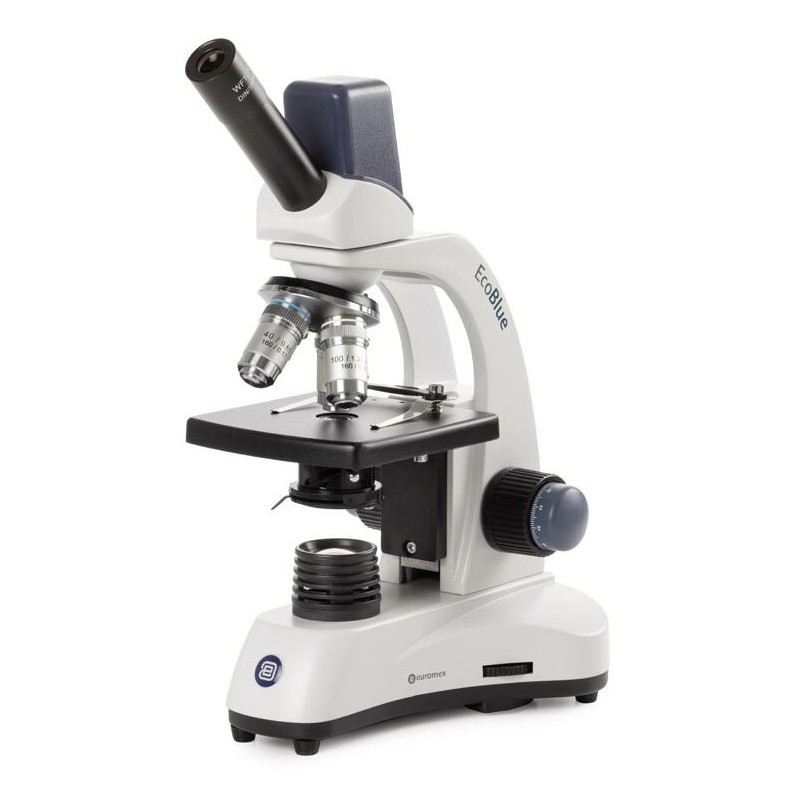

Euromex microscope EcoBlue EC.1105, mono, digital, 5MP, achro. 40x, 100x, 400x 1000x, LED (75735)

The ergonomic Euromex BlueLine microscopes are designed to deliver excellent optical performance, making them ideal for long and productive sessions in science teaching classes. These microscopes are suitable for beginner, intermediate, and advanced students. Built for educational use, they are easy to operate and robust enough to withstand intensive use and rough handling, ensuring durability in school environments.

Specifications

Optics

• Image scale: 40-1000 (20 (N.A. 0.40) achromatic, 40 (N.A. 0.65 with slide contact protection))

• Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

• Lamp type: LED

• Lens type: Achromatic

• Eyepiece: 10x/18 (Widefield)

• Power supply: 85-240V, built-in battery charger, detachable power cord

• Magnification: 40x, 100x, 400x, 1000x

• Objectives:

  • Achromatic 4x/0.10

  • Achromatic 10x/0.25

  • Achromatic S40x/0.65

  • Achromatic S100x/1.25

Capacity

• Brightness control: Yes

• Megapixel: 5.0

Mechanics

• Viewing posture: 45° oblique viewing

• Specimen stage: Specimen stage (123 x 119 mm)

• Focusing: Coarse and fine movement (coaxial, with 0.002 mm division)

• Type of build: Digital

Special Features

• Rechargeable battery operation: Yes

• Filter holder: Yes

• Dust cover bag: Yes

• Built-in digital camera: Yes (3.2 MP USB-2)

General

• Weight: 2.48 kg

• Dimensions:

  • Height: 355 mm

  • Width: 220 mm

  • Length: 220 mm

• Series: EcoBlue

Suitable for

• Beginners: Yes

Field of Application

• Hobby: Yes

• Education: Yes

Miscellaneous

• Supplier product number: EC.1105
