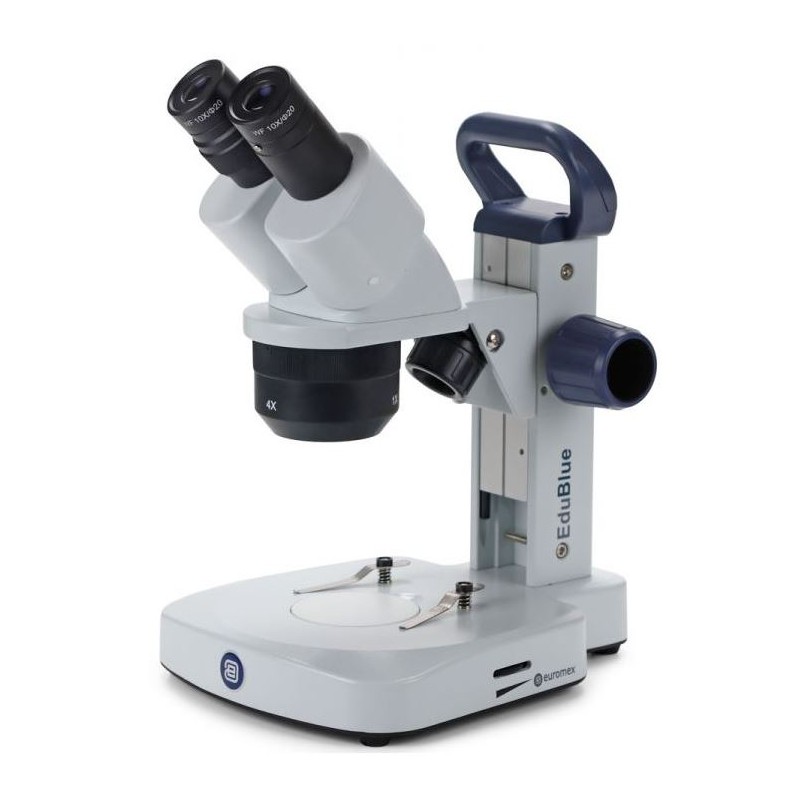

Euromex stereomicroscope ED.1802-S, EduBlue 1x/2x/4x (60397)

The EduBlue series is specifically designed for educational purposes. These microscopes are available with double or triple objectives, offering a magnification range of 5x to 80x. They feature transmitted and incident LED illumination, enabling 3-dimensional observation of small objects such as insects and stones.

424.42 $
Tax included

345.06 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The EduBlue series is specifically designed for educational purposes. These microscopes are available with double or triple objectives, offering a magnification range of 5x to 80x. They feature transmitted and incident LED illumination, enabling 3-dimensional observation of small objects such as insects and stones.

Highlights of the Series

  • Ideal stereo microscopes for beginners

  • Available in binocular and trinocular models

  • Robust and stable metal stands with secured eyepieces

  • Magnification options: 1x/3x, 2x/4x, 1x/2x/3x, or 1x/2x/4x

  • Rack and pinion or column stand

  • Incident and transmitted light with 1 W LED illumination

  • Wireless operation with batteries possible

  • Digital models with a 5 MP camera available

  • Ergonomic carrying handle

Technical Data of the Series

Eyepieces:

  • One pair of secured WF10x/20mm eyepieces with eyecups

  • Diopter adjustment ± on the left eyepiece

Head:

  • Binocular, 45° inclined

  • Interpupillary distance adjustable from 55 to 75 mm

Objectives:

  • Revolver with double magnification: 1x/3x or 2x/4x

  • Revolver with triple magnification: 1x/2x/3x or 1x/2x/4x

  • Working distance: 60 mm

  • Field of view: 20/10/6.7 mm or 20/10/5 mm

  • Magnification can be enhanced with optional eyepieces

  • All optics are antifungal treated

Stand:

  • Rack and pinion or column stand equipped with two object clamps and a Ø60 mm transparent and black/white plate

  • Two coarse adjustment knobs

Illumination:

  • Transmitted and incident light with 1 W LED illumination (can be used simultaneously)

  • Adjustable illuminance

  • Rechargeable batteries allow cordless use

Camera (Digital Models Only):

  • Equipped with a 5 MP USB2.0 camera

  • Resolution: 2560 x 1920 pixels, 24-bit color depth, up to 30 frames per second

  • Includes ImageFocus Plus software, USB2.0 cable, and micrometer (1mm/100)

Software (Digital Models Only):

  • ImageFocus Plus software for image and video capture

  • Allows analyses and measurements on images and videos

  • Saves images in .jpg, .tif, .bmp formats and videos in AVI format

  • Compatible with Windows 7, 8, and 10 (32-bit and 64-bit configurations)

  • Light version available for Mac OS





Specifications

Optics:

  • Lighting: Incident light and transmitted light

  • Lamp type: LED

  • Eyepiece: WF10x

Magnification:
10x, 20x, 40x

Capacity:
Brightness control: Yes

Mechanics:
Working distance: 60 mm
Viewing posture: 45° angled eyepiece
Focusing: Coarse movement

General:
Height: 315.5 mm
Length: 266 mm
Series: EduBlue

Field of Application:
Hobby: Yes
Education: Yes
