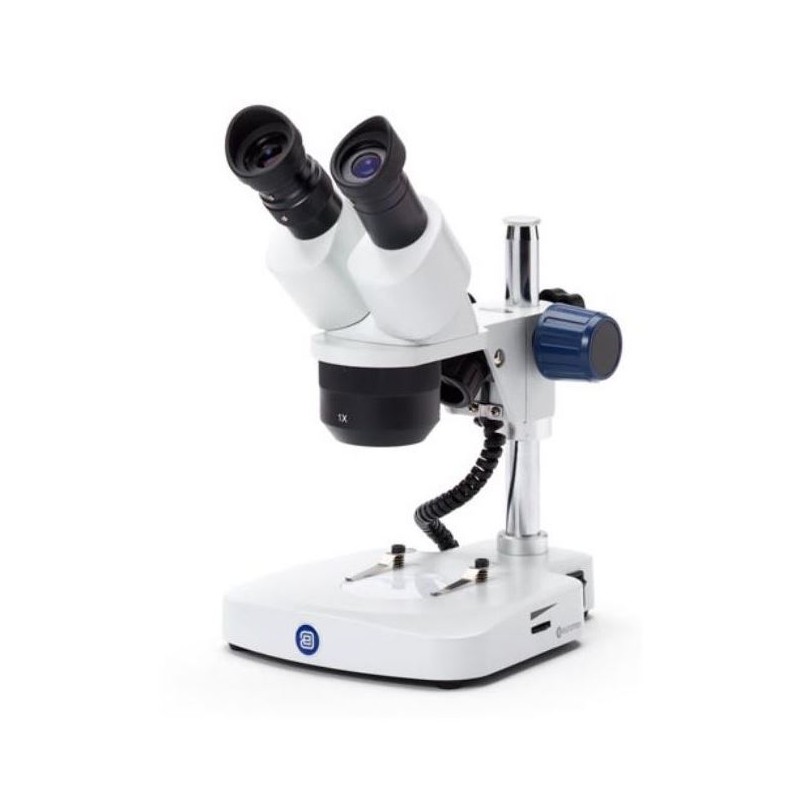

Euromex Stereo microscope EduBlue 1/3 ED.1302-P (48894)

The EduBlue series is ideal for educational purposes, offering double or triple objectives with a magnification range of 5x to 80x. Transmitted light and incident LED illumination allow 3-dimensional observation of small objects such as insects and stones.

Highlights of the Series

• Ideal stereo microscopes for beginners

• Binocular and trinocular models available

• Robust and stable metal stands with secured eyepieces

• Magnification options: 1x/3x, 2x/4x, 1x/2x/3x, or 1x/2x/4x

• Rack and pinion or column stand

• Incident and transmitted light 1 W LED

• Wireless operation with batteries possible

• Digital models with 5 MP camera available

• Ergonomic carrying handle

Technical Data of the Series

Eyepieces:

• One pair of secured WF10x/20mm eyepieces with eyecups

• Diopter adjustment ± on left eyepiece

Head:

• Binocular 45° inclined

• Interpupillary distance from 55 to 75mm

Objectives:

• Revolver with double magnification: 1x/3x, or 2x/4x

• Revolver with triple magnification: 1x/2x/3x, or 1x/2x/4x

• Working distance 60 mm

• Field of view 20/10/6.7 mm or 20/10/5 mm

• Magnification can be changed with optional eyepieces

• All optics are antifungal treated

Stand:

• Rack and pinion or column stand equipped with 2 object clamps and Ø 60 mm transparent and black/white plate

• Two coarse adjustment knobs

Illumination:

• Transmitted and incident light with 1 W LED illumination, can also be used simultaneously

• Illuminance adjustable

• With rechargeable batteries for cordless use

Camera (only with digital models)

• Digital versions equipped with 5 MP USB2.0 camera

• Resolution 2560 x 1920 pixels, 24-bit colour depth, up to 30 frames per second

• Supplied with ImageFocus Plus software, USB2.0 cable and micrometer 1mm/100

Software (only with digital models)

• ImageFocus Plus for image and video capture

• Wide range of analyses and measurements on images and films

• Saves images in .jpg, .tif, .bmp formats and videos in AVI format

• Compatible with Windows 7, 8 and 10, all 32 and 64 bit configurations

• Mac OS software available as a light version

Specifications

Optics

• Lighting: Incident light and transmitted light

• Lamp type: LED

• Eyepiece: 10x

• Magnification: 10x, 30x

Capacity

• Brightness control: yes

Mechanics

• Working distance: 60 mm

• Viewing posture: 45° angled eyepiece

• Focusing: Coarse movement

General

• Height: 315.5 mm

• Length: 266 mm

• Series: EduBlue

Field of application

• Hobby: yes

• Education: yes

Area of application

• Parasite analysis: yes

• Primary School: yes

• Maker: yes
