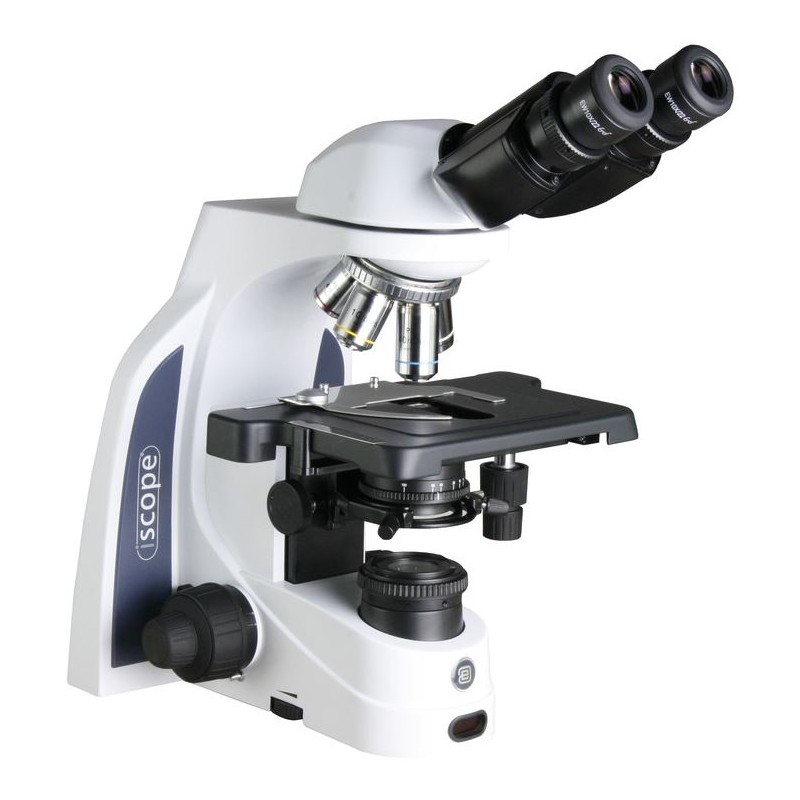

Euromex Microscope iScope IS.1152-PLi, bino (51454)
Euromex introduces a new series of iScope® microscopes, specifically designed for Life Sciences and Biomedical Sciences. These state-of-the-art instruments are available in different configurations and feature high-resolution objectives and 3W NeoLED transmitted LED illumination, making them suitable for demanding applications and fundamental research.
2704.33 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
Euromex introduces a new series of iScope® microscopes, specifically designed for Life Sciences and Biomedical Sciences. These state-of-the-art instruments are available in different configurations and feature high-resolution objectives and 3W NeoLED transmitted LED illumination, making them suitable for demanding applications and fundamental research.
Key Features:
-
EWF10x/22 mm or EWF10x/20mm eyepieces
-
Binocular and trinocular heads
-
Quintuple nosepiece
-
Various objective options (E-Plan EPL, E-Plan EPL IOS, Plan PL IOS)
-
Stage options: 140 x 160 mm or 216 x 150 mm rackless, both with integrated 79 x 52 mm mechanical stage
-
Height-adjustable Abbe condenser N.A. 1.25
-
Coarse and fine height adjustment
-
Diascopic intensity adjustable 3W NeoLED illumination with internal 85V-240V power supply
-
iCare sensor for energy saving
-
CSS - Cable Storage System
Model Configurations:
-
IS.1152-EPL and IS.1153-EPL: E-Plan objectives for bright field
-
IS.1152-EPLi and IS.1153-EPLi: E-Plan IOS objectives for bright field
-
IS.1152-PLi and IS.1153-PLi: Plan IOS objectives for bright field
Multi-head configurations are also available.
iScope for Brightfield IS.1152-PLi Specifications:
Optics:
-
Magnification: 40 - 1000x
-
Lighting: Transmitted light
-
Lamp type: LED
-
Infinity corrected: Yes
-
Eyepiece: EWF 10x / 22 mm (Ø 30mm)
-
Number of objectives: 4
-
Color correction: Achromatic
-
Field curvature: Plan
-
Objectives:
-
4x / 0.10 (Plan PLi)
-
10x / 0.25 (Plan PLi)
-
S40x / 0.65 (Plan PLi)
-
S100x / 1.25 (Plan PLi)
-
-
Suspension: Yes
-
Immersion lens: Yes
-
Condenser: Abbe 1.25 N.A., focus adjustable, with iris diaphragm
-
Optical system: Infinity
Capacity:
-
Brightfield: Yes
Mechanics:
-
Type of build: Binocular
-
Focusing: Coarse and fine movement (200 x 1µm)
-
Revolver: 5 positions
-
Specimen stage: Cross table (216 x 150 mm, x/y 79 x 52mm) rackless
General:
-
Series: iScope
-
Weight: 9000 g
-
Dimensions: 210 x 255 x 407 mm (W x L x H)
Field of Application:
-
Biology: Yes
-
Central laboratories: Yes
-
Botany: Yes
-
Microbiology: Yes
-
Cytology & Pathology: Yes
-
Marine Biology: Yes
Additional Features:
-
iCare Sensor for automatic illumination shut-off
-
CSS - Cable Storage System for easy cable management
-
Packaging includes power cord, 500 mA 250V spare fuse, and dust cover
Miscellaneous:
-
Supplier product number: IS.1152-PLi
Data sheet
