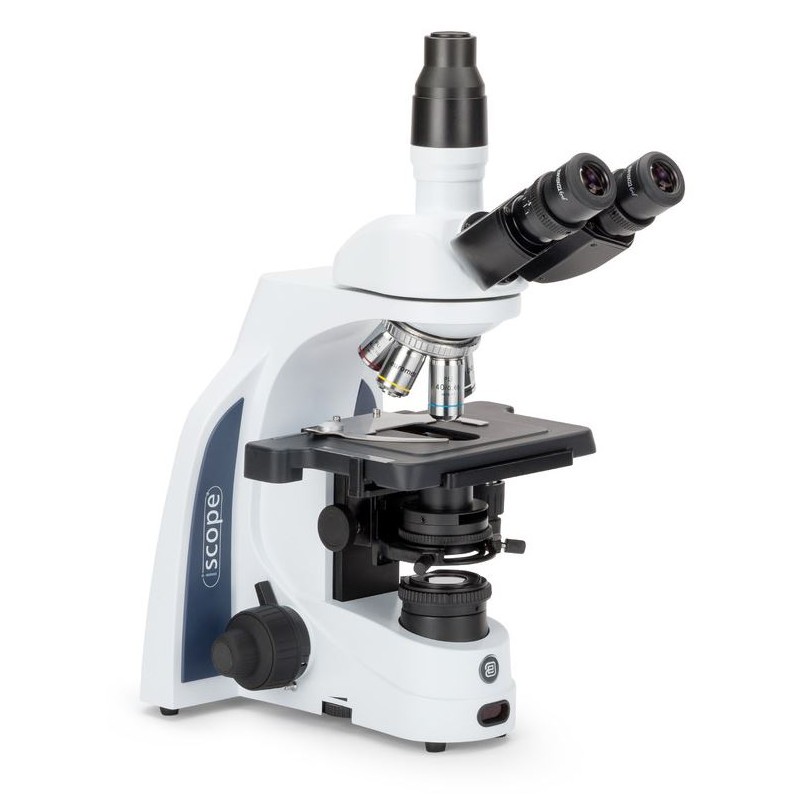

Euromex Microscope iScope IS.1153-PLi, trino (51455)

Euromex introduces a new series of iScope® microscopes, specifically designed for Life Sciences and Biomedical Sciences. These state-of-the-art instruments are available in different configurations and feature high-resolution objectives and 3W NeoLED transmitted LED illumination, making them suitable for demanding applications and fundamental research.

Key Features:

• EWF10x/22 mm or EWF10x/20mm eyepieces

• Binocular and trinocular heads

• Quintuple nosepiece

• Various objective options (E-Plan EPL, E-Plan EPL IOS, Plan PL IOS)

• Stage options: 140 x 160 mm or 216 x 150 mm rackless, both with integrated 79 x 52 mm mechanical stage

• Height-adjustable Abbe condenser N.A. 1.25

• Coarse and fine height adjustment

• Diascopic intensity adjustable 3W NeoLED illumination with internal 85V-240V power supply

• iCare sensor for energy saving

• CSS - Cable Storage System

Model Configurations:

• IS.1152-EPL and IS.1153-EPL: E-Plan objectives for bright field

• IS.1152-EPLi and IS.1153-EPLi: E-Plan IOS objectives for bright field

• IS.1152-PLi and IS.1153-PLi: Plan IOS objectives for bright field

Multi-head configurations are also available.

iScope for Brightfield IS.1153-PLi Specifications:

Optics:

• Magnification: 40 - 1000x

• Lighting: Transmitted light

• Lamp type: LED

• Infinity corrected: Yes

• Eyepiece: EWF 10x / 22 mm (Ø 30mm)

• Number of objectives: 4

• Color correction: Achromatic

• Field curvature: Plan

• Objectives:

  1. 4x / 0.10 (Plan PLi)

  2. 10x / 0.25 (Plan PLi)

  3. S40x / 0.65 (Plan PLi)

  4. S100x / 1.25 (Plan PLi)

• Suspension: Yes

• Immersion lens: Yes

• Condenser: Abbe 1.25 N.A., focus adjustable, with iris diaphragm

• Optical system: Infinity

Capacity:

• Brightfield: Yes

Mechanics:

• Type of build: Trinocular

• Focusing: Coarse and fine movement (200 x 1µm)

• Revolver: 5 positions

• Specimen stage: Cross table (216 x 150 mm, x/y 79 x 52mm) rackless

General:

• Series: iScope

• Weight: 9000 g

• Dimensions: 210 x 255 x 407 mm (W x L x H)

Field of Application:

• Medicine: Yes

Additional Features:

• iCare Sensor for automatic illumination shut-off

• CSS - Cable Storage System for easy cable management

• Packaging includes power cord, 500 mA 250V spare fuse, and dust cover

Miscellaneous:

• Supplier product number: IS.1153-PLi
