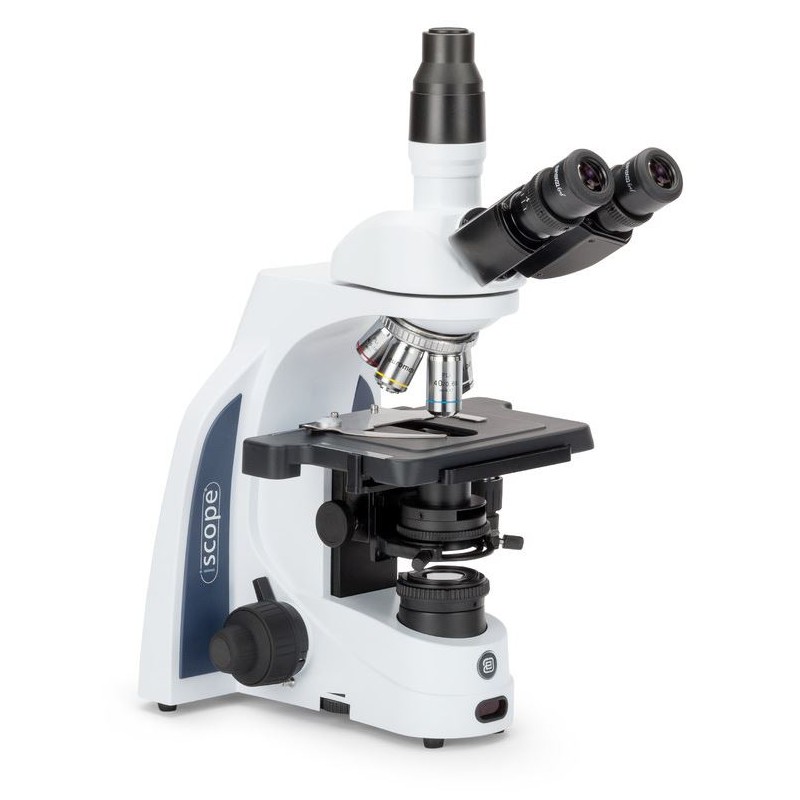

Euromex Microscope iScope, IS.1053-PLMi, trino (51814)

Euromex introduces a new series of iScope® microscopes designed specifically for materials science applications. These microscopes feature specialized objectives and equipment like incident illumination, polarization and compensation filters. This allows precise observation of materials such as metals, plastics, minerals, asbestos, glass, wood and chemical materials.

iScope for Asbestos Research

The iScope microscopes can be equipped with specific attachments for materials science applications, including metallurgical and polarization microscopes, and microscopes specially designed for asbestos identification.

Specifications

Optics:

• Magnification: 50 - 500x

• Lighting: Incident light and transmitted light

• Lamp type: LED (100 W Halogen)

• Eyepiece: EWF 10x / 20 mm

• Number of objectives: 4

• Infinity corrected: Yes

• Color correction: Achromatic

• Immersion lens: No

• Field curvature: Plan

• Suspension: Yes

• Cover glass correction: No

• Objectives:

  1. 5x / 0.12

  2. 10x / 0.25

  3. S20x / 0.40

  4. S50x / 0.70

• Condenser: Abbe condenser, adjustable

• Optical system: Infinity

Capacity:

• Brightfield: Yes

Mechanics:

• Type of build: Trinocular

• Focusing: Coarse and fine movement (200 x 1µm)

• Revolver: 5 positions

• Specimen stage: Cross table (216 x 150 mm, x/y 79 x 52mm) rackless

General:

• Series: iScope

• Weight: 10500 g

• Dimensions: 210 x 255 x 407 mm (W x L x H)

Field of Application:

• Industry: Yes

• Materials technology: Yes

• Metallurgy: Yes

Miscellaneous:

• Supplier product number: IS.1053-PLMi
