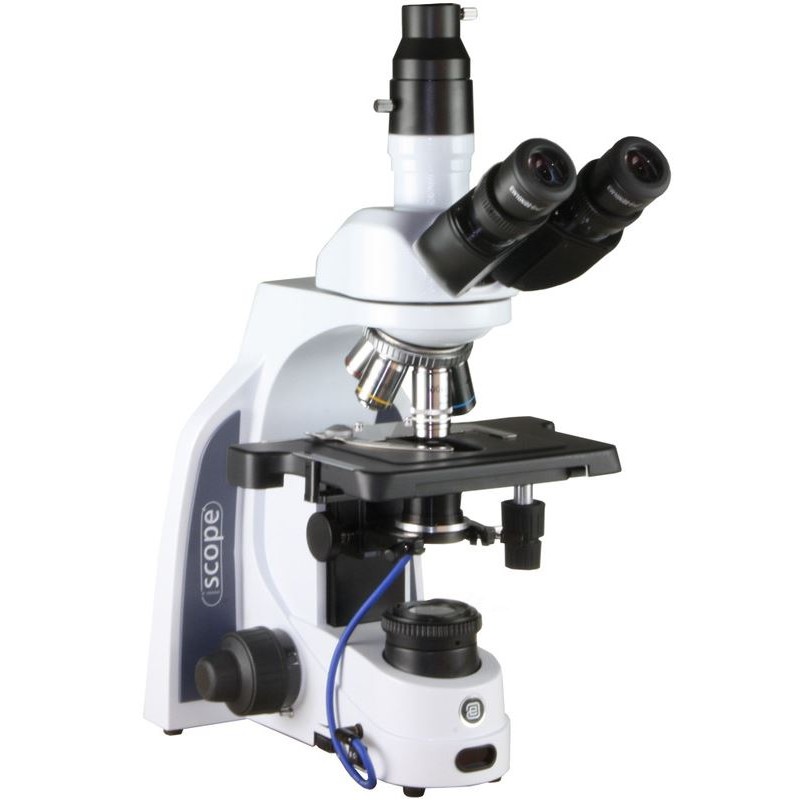

Euromex iScope IS.1153-PLi/DFI, DF, trino, infinity, plan, 4x-100x, 100x iris, IOS super contrast oil, spring, LED, 3W (51749)
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Euromex iScope IS.1153-PLi/DFI, DF, trino, infinity, plan, 4x-100x, 100x iris, IOS super contrast oil, spring, LED, 3W (51749)

Euromex introduces a new series of iScope® microscopes designed for Life Sciences and Biomedical Sciences. These state-of-the-art instruments are available in various configurations, featuring high-resolution objectives and 3W NeoLED transmitted LED illumination for demanding applications and fundamental research.

3254.22 €
Tax included

2645.71 € net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Euromex introduces a new series of iScope® microscopes designed for Life Sciences and Biomedical Sciences. These state-of-the-art instruments are available in various configurations, featuring high-resolution objectives and 3W NeoLED transmitted LED illumination for demanding applications and fundamental research.

Key Features:

  • EWF10x/22 mm or EWF10x/20mm eyepieces

  • Binocular and trinocular heads

  • Quintuple nosepiece

  • Various objective options (E-Plan EPL, E-Plan EPL IOS, Plan PL IOS)

  • Stage options: 140x160 mm or 216x150 mm rackless, both with integrated 79x52 mm mechanical stage

  • Height-adjustable Abbe condenser N.A. 1.25

  • Coarse and fine height adjustment

  • Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply

  • iCare sensor for energy saving

  • CSS - Cable Storage System





Specifications for Model IS.1153-PLi/DF:

Optics:

  • Magnification: 40 - 1000x

  • Lighting: Transmitted light

  • Lamp type: LED

  • Infinity corrected: Yes

  • Eyepiece: EWF 10x / 22 mm (Ø 30mm)

  • Number of objectives: 4

  • Color correction: Achromatic

  • Field curvature: Plan

  • Objectives:

    1. 4x / 0.10 (Plan PLi)

    2. 10x / 0.25 (Plan PLi)

    3. S40x / 0.65 (Plan PLi)

    4. S100x / 1.25 IOS Superkontrast

  • Suspension: Yes

  • Immersion lens: Yes

  • Condenser: Carioid condenser with 5W LED

Capacity:

  • Dark field: Yes

  • Brightfield: Yes

  • Contrast methods: Dark field

Mechanics:

  • Type of build: Trinocular

  • Focusing: Coarse and fine movement (200 x 1µm)

  • Revolver: 5 positions

  • Specimen stage: Cross table (216 x 150 mm, x/y 79 x 52mm) rackless

General:

  • Series: iScope

  • Weight: 9000 g

  • Dimensions: 210 x 255 x 407 mm (W x L x H)

Field of Application:

  • Medicine: Yes

  • Education: Yes

  • Area of application: Naturopathy, University

Miscellaneous:

  • Supplier product number: IS.1153-PLi/DFI
