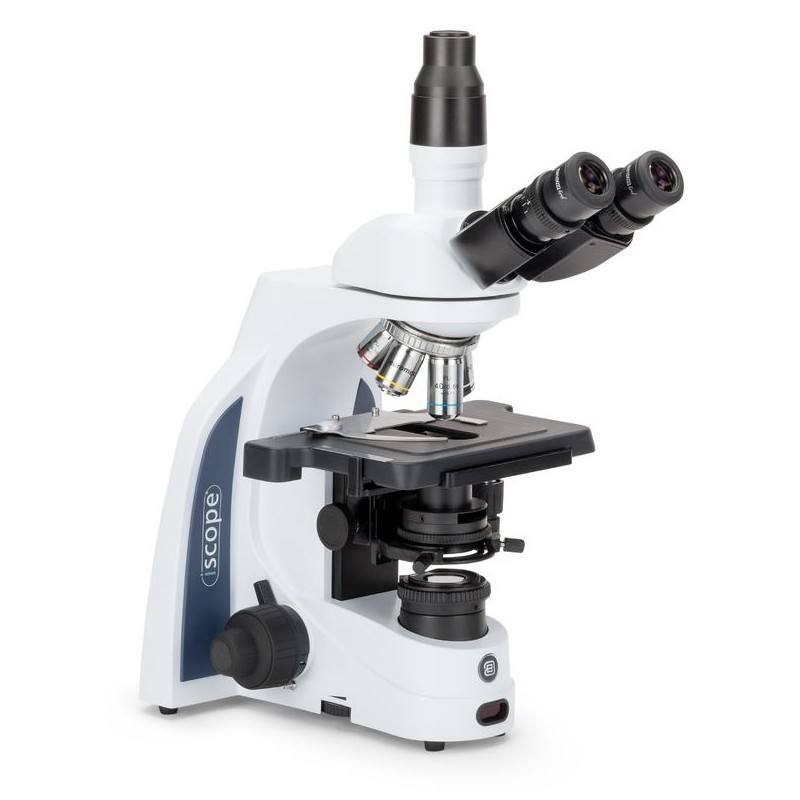

Euromex Microscope iScope IS.1153-PLPHi, trino (51457)

Euromex introduces a new series of iScope® microscopes, specifically designed for Life Sciences and Biomedical Sciences. These advanced instruments are available in various configurations and are ideal for demanding applications as well as fundamental research, thanks to their high resolving power and 3W NeoLED transmitted LED illumination.

Key Features:

• EWF10x/22 mm or EWF10x/20 mm eyepieces

• Binocular and trinocular heads

• Quintuple nosepiece

• Objective options:

  • E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives

  • E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives

  • Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives

• Stage options:

  • 140 mm x 160 mm stage with integrated 79 x 52 mm mechanical stage

  • 216 mm x 150 mm rackless stage with integrated 79 x 52 mm mechanical stage

• Height adjustable Abbe condenser N.A. 1.25

• Coarse and fine height adjustment

• Diascopic intensity-adjustable 3W NeoLED™ illumination with internal 85V–240V power supply

• iCare sensor for energy saving

• CSS (Cable Storage System)

Model Variations:

• IS.1152-EPL and IS.1153-EPL: Supplied with E-Plan objectives for bright field applications.

• IS.1152-EPLi and IS.1153-EPLi: Supplied with E-Plan IOS objectives for bright field applications.

• IS.1152-PLi and IS.1153-PLi: Supplied with Plan IOS objectives for bright field applications.

The iScope® is also available in a multi-head configuration.

Euromex iScope for Phase Contrast (IS.1153-PLPHi)

Features:

• Eyepieces: EWF10x/22 mm (Ø 30 mm)

• Head: Trinocular with Siedentopf design; tubes inclined at 30°. Interpupillary distance adjustable between 47–76 mm; diopter adjustment on both eyepieces.

• Nosepiece: Quintuple reversed nosepiece on ball bearings.

• Objectives: Plan PLPHi series:

  • PLPHi10x/0.25

  • PLPHi20x/0.40

  • PLPHi S40x/0.65

  • PLPHi S100x/1.25 oil immersion
    All optical components are anti-fungus treated.

• Stage: Rackless design measuring 216 mm x 150 mm with integrated mechanical stage (79 x 52 mm).

• Condenser: Height-adjustable Zernike N.A. 1.25 condenser with positions for darkfield and brightfield.

• Focusing: Coaxial coarse and fine adjustments with a precision of 2 µm and a travel range of 20 mm; rack-stop protects slides and objectives; friction adjustment included.

• Illumination: Diascopic Köhler illumination using a 3W NeoLED™ light source; intensity adjustable; internal power supply (100–240V).

• iCare Sensor: Automatically switches off illumination when the user steps away to prevent unnecessary energy loss.

• CSS (Cable Storage System): Allows the power cable to be stored neatly in the back of the instrument for easy storage.

Packaging: Delivered with a power cord, spare fuse (500 mA, 250V), and dust cover.

Specifications

Optics:

• Magnification range: 40–1000x

• Infinity corrected: Yes

• Lighting: Transmitted light (LED)

• Field curvature: Plan

• Colour correction: Achromatic

• Eyepiece: EWF10x /22 mm (Ø30 mm)

• Number of objectives: Four

  • Objective 1: Plan phase objective (10x /0.25)

  • Objective 2: Plan phase objective (20x /0.40)

  • Objective 3: Plan phase objective (S40x /0.65)

  • Objective 4: Plan phase oil immersion objective (S100x /1.25)

Contrast Methods:
Phase contrast: Yes
Brightfield: Yes
Darkfield: No

Mechanics:
Type of build: Trinocular
Focusing system: Coarse and fine movement (200 x 1 µm)
Specimen stage size: Rackless cross table (216 x150 mm; X/Y movement range of 79 x52 mm)
Revolver positions: Five

General Information:
Series: iScope®
Weight: Approximately 9000 g
Dimensions:

• Width: 210 mm

• Length: 255 mm

• Height: 407 mm

Applications: Suitable for use in medicine, gynecology, central laboratories, biology, botany, microbiology, cytology & pathology, urology, marine biology.

Supplier Product Number: IS.1153-PLPHi
