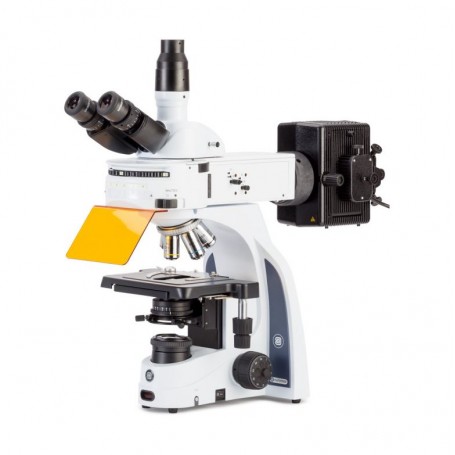

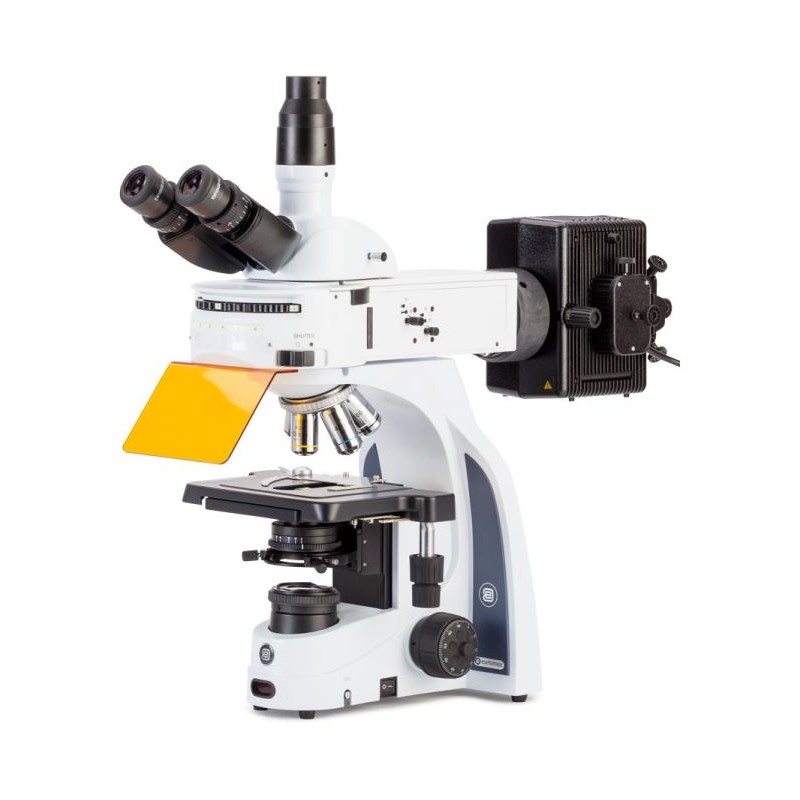

Euromex Microscope iScope, IS.3153-PLFi/6, trino (51464)

Eyepieces

• Extended EWF 10x/22 mm eyepieces, Ø 30 mm tubes.

• Eyepieces can be secured to the tubes.

Heads

• Binocular and trinocular Siedentopf type heads with 30° inclined tubes, interpupillary distance from 48 to 76 mm, equipped with diopter adjustment(s).

• Unique rotating system allows ergonomic positioning of tubes in high (431 mm) and low (397 mm) positions.

• Trinocular head includes a Ø 23.2 mm photo port.

• Optional ergonomic tilting head and Ø 23.2 mm photo tube attachment available for infinity corrected models.

Nosepiece

• Revolving and reversed nosepiece for maximum 5 objectives.

Stages

• 216 x 150 mm rackless stage with double slide holder and integrated 79 x 52 mm mechanical stage. Rackless design for smoother, safer movements.

• Optional 220 x 157 mm ceramic stage with integrated 75 x 50 mm mechanical stage, resistant to marks and scratches, prevents stray light reflection.

Condenser for Brightfield

• Height adjustable Abbe N.A. 1.25 condenser for brightfield with phase annuli sliders for plan phase objectives.

• Magnification indication included.

• Optional dark field slider available for up to 400x magnification.

Condenser for Phase Contrast

• Optional Zernike N.A. 1.25 phase contrast disc condenser for plan phase objectives and dark field contrast up to 400x magnification.

Focusing

• Coaxial coarse and fine adjustments, 200 graduations, 1 µm per graduation, 200 µm per rotation, 24 mm total travel.

• Adjustable rack stop to prevent sample and objective damage.

• Coarse adjustments with friction control.

Illumination

• 3 W adjustable Köhler NeoLED diascopic illumination with internal 100-240 V power supply.

• NeoLED design offers larger apertures for higher resolution images, low energy consumption, and long operating lifetime.

• Köhler illumination available on IOS plan and plan phase infinity corrected models.

Fluorescence Illumination

• 6-position rotating or 3-position slider attachments with 100 W HBO mercury vapor light source.

• Standard fluorescence filter sets for blue and green excitation, UV protection shield included.

• Optional specific, optimized fluorescence filter sets available.

• Single position attachments with 3 W LED for blue or green excitation also available.

iCare Sensor

• Automatically switches off illumination when user steps away to save energy.

CSS - Cable Storage System

• Easy power cable storage in the back of the microscope.

• Integrated carrying grip for safe transportation.

Packaging

• Includes power cord, dust cover, spare fuse, user manual, and 5 ml immersion oil (for S100x objective models).

• UV protection shield for models with 100 W mercury vapor light source.

• Packed in polystyrene boxes.

Specifications

Optics:

• Image scale: 4-100

• Number of objectives: 4

• Lighting: Incident light and transmitted light

• Field curvature: Plan

• Colour correction: Achromatic

• Suspension: Yes

• Immersion lens: Yes

• Condenser: Abbe N.A.1.25

• Lamp type: LED

• Objectives: Plan PLFi series (4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 IOS)

• Eyepiece: WF 10x / 22 mm (Ø 30mm)

• Infinity corrected: Yes

• Magnification: 40-1000

Capacity:

• Brightness control: Yes

• Fluorescence: Yes

• Brightfield: Yes

• Contrast methods: Fluorescence

Mechanics:

• Type of build: Trinocular

• Viewing posture: 30° angled eyepiece

• Specimen stage: Cross table (216 x 150 mm, x/y 79 x 52mm rackless)

• Revolver: 5

• Focusing: Coarse and fine movement (2 µm precision, 20mm)

General:

• Weight: 11300 g

• Dimensions: 407 mm (H) x 210 mm (W) x 255 mm (L)

• Series: iScope

• Field of application: Medicine

Supplier Product Number: IS.3153-PLFi/6

This versatile microscope series offers high-quality optics and advanced features, making it suitable for a wide range of scientific applications in various fields of study and research environments.
