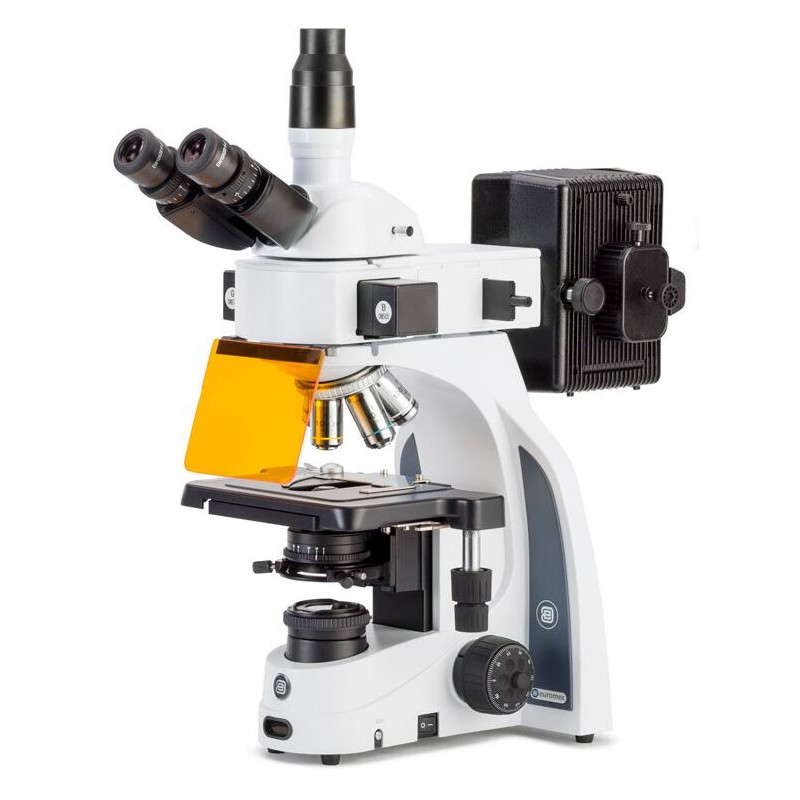

Euromex Microscope iScope, IS.3153-PLi/3, trino (51468)

Applications Medicine, Biology, Central laboratories, Botany, Microbiology, Cytology & Pathology, Marine Biology

6821.53 $
Tax included

5545.96 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

iScope Fluorescence Microscopes

Eyepieces

  • Extended EWF 10x/22 mm eyepieces, Ø 30 mm tubes.

  • Eyepieces can be secured to the tubes

Heads

  • Binocular and trinocular Siedentopf type heads with 30° inclined tubes, interpupillary distance from 48 to 76 mm and diopter adjustment(s).

  • Unique rotating system for ergonomic positioning of tubes in high (431 mm) and low (397 mm) positions.

  • Trinocular head with Ø 23.2 mm photo port.

  • Optional ergonomic tilting head and Ø 23.2 mm photo tube attachment available (infinity corrected models only)

Nosepiece

  • Revolving and reversed nosepiece for maximum 5 objectives

Stages

  • 216 x 150 mm rackless stage with double slide holder and integrated 79 x 52 mm mechanical stage.

  • 220 x 157 mm ceramic stage with integrated 75 x 50 mm mechanical stage for protection against marks and scratches.

Condensers

  • Standard: Height adjustable Abbe N.A. 1.25 condenser for brightfield with slider options.

  • Optional: Height adjustable Zernike NA. 1.25 phase contrast disc condenser.

Focusing

  • Coaxial coarse and fine adjustments with 1 µm precision per graduation.

  • Adjustable rack stop and friction control for coarse adjustments.

Illumination

  • 3 W adjustable Köhler NeoLED™ diascopic illumination with internal 100-240 V power supply.

  • Optional Köhler illumination for enhanced contrast and resolution.

Fluorescence Illumination

  • 6-position rotating or 3-position slider fluorescence attachments with 100 W HBO mercury vapor light source.

  • Single position attachments with 3 W LED for blue or green excitation available.

Additional Features

  • iCare Sensor for automatic power-off

  • Cable Storage System for easy cable management

  • Integrated carrying grip for safe transportation

Packaging

  • Includes power cord, dust cover, spare fuse, user manual, and immersion oil (for models with S100x objective).

  • UV protection shield for models with 100 W mercury vapor light source.





Specifications

  • Optics: 4-100x magnification, 4 objectives, plan achromatic

  • Lighting: Incident and transmitted light, LED

  • Objectives: Plan PLi 4x, 10x, S40x, S100x (IOS)

  • Eyepiece: WF 10x / 22 mm (Ø 30mm)

  • Mechanics: Trinocular, 30° angled eyepiece, cross table stage, 5-position revolver

  • Dimensions: 407 x 210 x 255 mm (H x W x L)

  • Weight: 11,300 g

Applications
Medicine, Biology, Central laboratories, Botany, Microbiology, Cytology & Pathology, Marine Biology

Supplier Product Number: IS.3153-PLi/3
