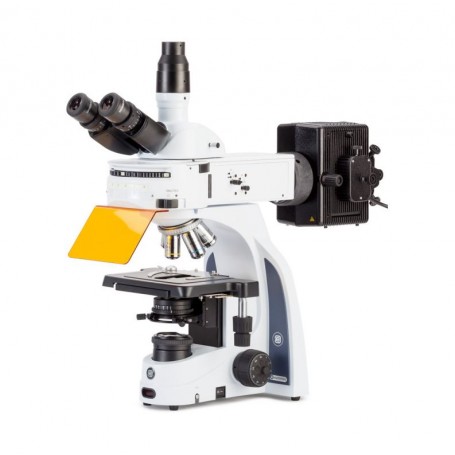

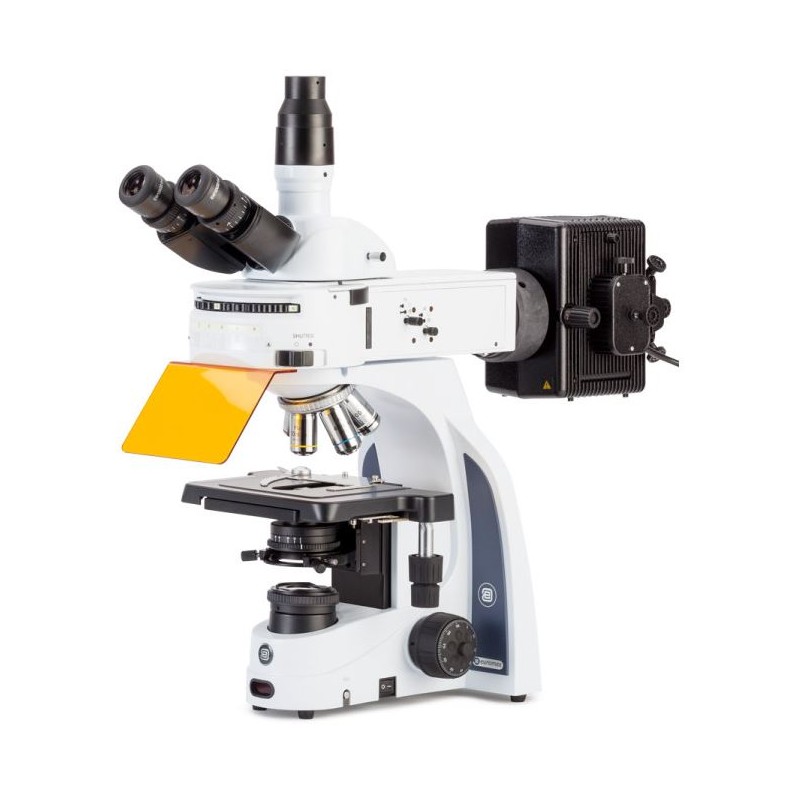

Euromex Microscope iScope, IS.3153-PLi/6, trino (51462)

Euromex introduces a new range of state-of-the-art microscopes specifically designed for life sciences and biomedical sciences. The iScope is available in various configurations, suitable for demanding applications and pure research, thanks to high objective resolution and 3W Neo LED lighting.

12437.38 $
Tax included

10111.69 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Euromex introduces a new range of state-of-the-art microscopes specifically designed for life sciences and biomedical sciences. The iScope is available in various configurations, suitable for demanding applications and pure research, thanks to high objective resolution and 3W Neo LED lighting.

Key Features:

Eyepieces:

  • Extended EWF 10x/22 mm eyepieces, Ø 30 mm tubes

  • Securable to tubes

Heads:

  • Binocular and trinocular Siedentopf type heads with 30° inclined tubes

  • Interpupillary distance: 48 to 76 mm

  • Diopter adjustment(s)

  • Unique rotating system for ergonomic positioning (high: 431 mm, low: 397 mm)

  • Trinocular head with Ø 23.2 mm photo port

  • Optional ergonomic tilting head and photo tube attachment (infinity corrected models only)

Nosepiece:

  • Revolving and reversed, maximum 5 objectives

Stages:

  • 216 x 150 mm rackless stage with double slide holder and 79 x 52 mm mechanical stage

  • 220 x 157 mm ceramic stage with 75 x 50 mm mechanical stage

Condensers:

  • Brightfield: Height adjustable Abbe N.A. 1.25 condenser

  • Phase Contrast: Optional Zernike NA. 1.25 phase contrast disc condenser

Focusing:

  • Coaxial coarse and fine adjustments

  • 200 graduations, 1 µm per graduation, 200 µm per rotation

  • Total travel: approximately 24 mm

  • Adjustable rack stop and friction control

Illumination:

  • 3 W adjustable Köhler NeoLED™ diascopic illumination

  • Internal 100-240 V power supply

  • Optional Köhler illumination for enhanced contrast and resolution

Fluorescence Illumination:

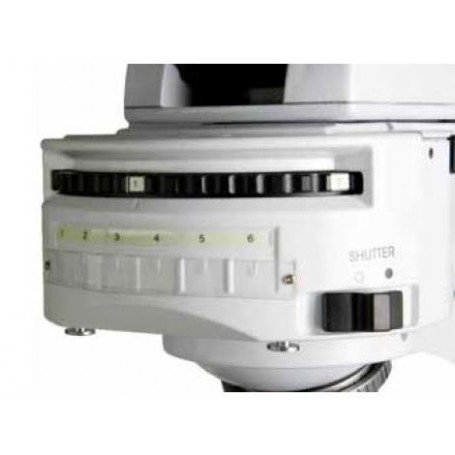

  • 6-position rotating or 3-position slider attachments

  • 100 W HBO mercury vapor light source

  • Single position attachments with 3 W LED for blue or green excitation

Additional Features:

  • iCare Sensor for automatic power-off

  • Cable Storage System

  • Integrated carrying grip

Packaging:

  • Includes power cord, dust cover, spare fuse, user manual, and immersion oil (for S100x objective models)

  • UV protection shield for 100 W mercury vapor light source models





Specifications:

  • Optics: 4-100x magnification, 4 objectives, plan achromatic

  • Lighting: Incident and transmitted light, LED

  • Objectives: Plan PLi 4x, 10x, S40x, S100x (IOS)

  • Eyepiece: WF 10x / 22 mm (Ø 30mm)

  • Mechanics: Trinocular, 30° angled eyepiece, cross table stage, 5-position revolver

  • Dimensions: 407 x 210 x 255 mm (H x W x L)

  • Weight: 11,300 g

Applications: Medicine, Biology, Central laboratories, Botany, Microbiology, Cytology & Pathology, Marine Biology

Supplier Product Number: IS.3153-PLi/6
