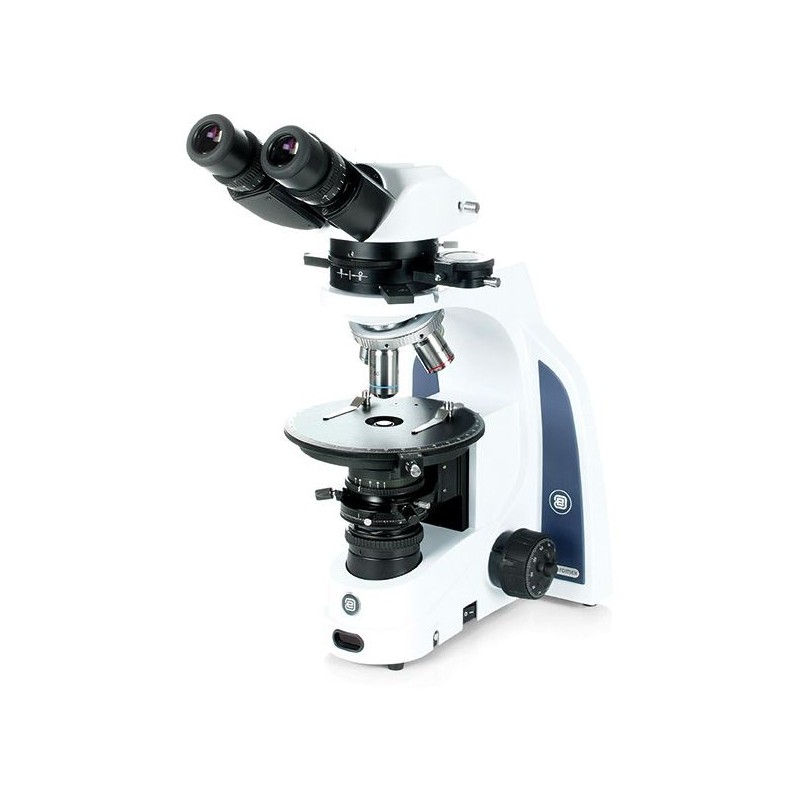

Euromex Microscope iScope, IS.1052-PLPOLi, bino (51809)
Euromex introduces a new series of iScope® microscopes, state-of-the-art instruments designed specifically for Life Sciences and Biomedical Sciences. Available in various configurations, these microscopes are suitable for demanding applications and fundamental research, thanks to their high-resolution objectives and 3W NeoLed transmitted LED illumination.
3492.14 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
Euromex introduces a new series of iScope® microscopes, state-of-the-art instruments designed specifically for Life Sciences and Biomedical Sciences. Available in various configurations, these microscopes are suitable for demanding applications and fundamental research, thanks to their high-resolution objectives and 3W NeoLed transmitted LED illumination.
Key Features:
-
EWF10x/22 mm or EWF10x/20mm eyepieces
-
Binocular and trinocular heads
-
Quintuple nosepiece
-
Various objective options: E-Plan EPL, E-Plan EPL IOS, and Plan PL IOS
-
Stage options: 140 mm x 160 mm or 216 mm x 150 mm rackless stage with integrated mechanical stage
-
Height adjustable Abbe condenser N.A. 1.25
-
Coarse and fine height adjustment
-
Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
-
iCare sensor for energy saving
-
CSS - Cable Storage System
Model Variations:
-
IS.1152-EPL and IS.1153-EPL: E-Plan objectives for bright field applications
-
IS.1152-EPLi and IS.1153-EPLi: E-Plan IOS objectives for bright field applications
-
IS.1152-PLi and IS.1153-PLi: Plan IOS objectives for bright field applications
The iScope is also available in a multi-head configuration.
Materials Science Applications:
iScope microscopes can be equipped with specific attachments for materials science applications, including metallurgical, polarization, and asbestos identification microscopes.
iScope for Asbestos Research:
Specifications for the IS.1052-PLPOLi model:
-
Magnification: 40 - 400x
-
Lighting: Transmitted light, LED (100 W Halogen)
-
Infinity corrected: Yes
-
Eyepiece: EWF 10x / 22 mm (Ø 30mm)
-
Objectives: 4x, 10x, 20x, S40x (Plan PLPOLi)
-
Condenser: Polarization condenser with graduated 360° polarizer
-
Type: Binocular
-
Focusing: Coarse and fine movement (200 x 1µm)
-
Revolver: 4 positions
-
Stage: Polarization stage, Ø 160mm, rotatable 360°
-
Dimensions: 210 x 255 x 407 mm (W x L x H)
-
Weight: 12,300 g
Applications: Industry, Metallurgy, Mineralogy, Materials Technology, Materials Science
Supplier Product Number: IS.1052-PLPOLi
Data sheet
