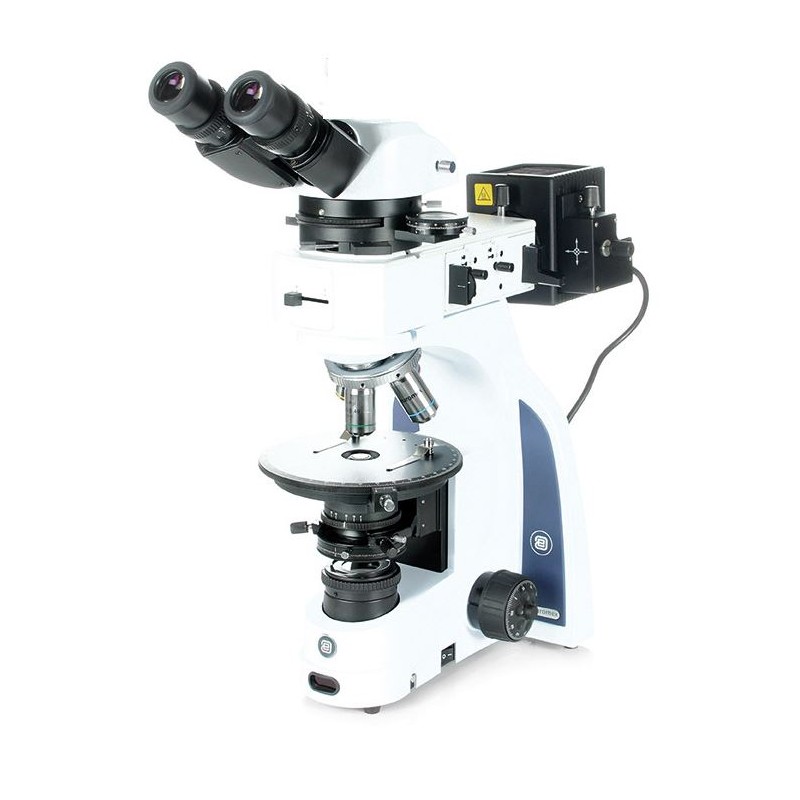

Euromex Microscope iScope, IS.1052-PLPOLRi, bino (51811)

Euromex has introduced a new series of iScope® microscopes, designed specifically for Life Sciences and Biomedical Sciences. These state-of-the-art instruments are available in multiple configurations and are suitable for demanding applications and fundamental research. Their high-resolution objectives and 3W NeoLED transmitted LED illumination ensure exceptional performance.

Key Features:

• EWF10x/22 mm or EWF10x/20mm eyepieces

• Binocular and trinocular heads

• Quintuple nosepiece

• Objective options:

  • E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives

  • E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives

  • Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives

• Stage options:

  • 140 mm x 160 mm stage with integrated 79 x 52 mm mechanical stage

  • 216 mm x 150 mm rackless stage with integrated 79 x 52 mm mechanical stage

• Height adjustable Abbe condenser N.A. 1.25

• Coarse and fine height adjustment

• Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply

• iCare sensor for energy efficiency

• CSS - Cable Storage System

Model Variations:

• IS.1152-EPL and IS.1153-EPL: Supplied with E-Plan objectives for bright field applications

• IS.1152-EPLi and IS.1153-EPLi: Supplied with E-Plan IOS objectives for bright field applications

• IS.1152-PLi and IS.1153-PLi: Supplied with Plan IOS objectives for bright field applications

The iScope® is also available in multi-head configurations.

Microscopes for Materials Science:
Euromex offers specialized microscopes for materials science applications equipped with specific objectives, incident illuminations, polarization filters, and compensation filters. These features allow precise observation of materials such as metals, plastics, minerals, asbestos, glass, wood, and chemical substances.

Materials Science Options:
Euromex provides a range of microscopes tailored to materials science needs: metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification, and inverted materials science microscopes.

iScope® for Asbestos Research:
The iScope® can be configured with specific attachments to transform it into a state-of-the-art materials science microscope suitable for various applications. Three types of materials science microscopes are available: metallurgical microscopes, polarization microscopes, and microscopes specifically designed for asbestos identification.

Specifications:

Optics:
Magnification: 40 - 400x
Lighting: Transmitted light (LED or optional 100 W Halogen)
Infinity corrected: Yes

Eyepiece:
EWF10x / 22 mm (Ø 30mm)

Objectives:
4x / 0.10 (Plan PLPOLi)
10x / 0.25 (Plan PLPOLi)
20x / 0.40 (Plan PLPOLi)
S40x / 0.65 (Plan PLPOLi)

Condenser:
Polarization condenser with graduated 360° polarizer

Capacity:
Polarization: Yes
Brightfield: Yes

Mechanics:
Type of build: Binocular microscope
Focusing: Coarse and fine movement (200 x 1 µm precision)
Revolver: Four positions

Specimen Stage:
Polarization stage (Ø160 mm), rotatable 360°

General Information:
Series: iScope®
Weight: 12,300 g
Dimensions: Width – 210 mm; Length – 255 mm; Height – 407 mm

Applications:
Industry – Yes
Metallurgy – Yes
Mineralogy – Yes
Materials Technology – Yes
Materials Science – Yes

Supplier Product Number: IS.1052-PLPOLRi
