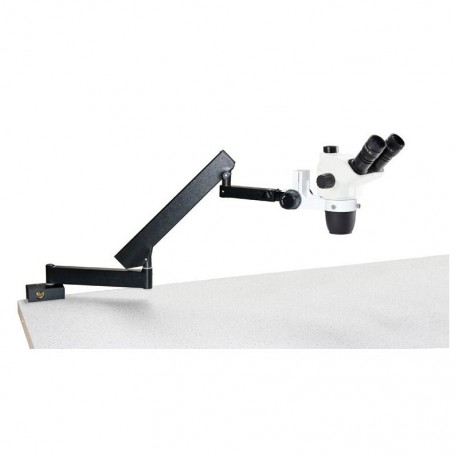

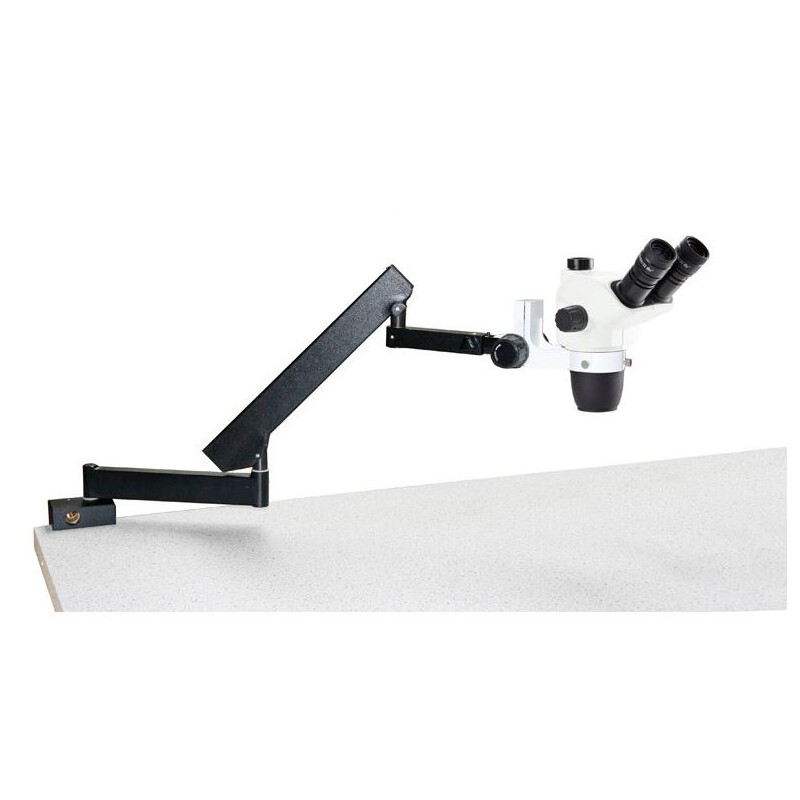

Euromex Stereo zoom microscope NZ.1903-A, 6.7x to 45x, articulated stand., base plate, w.o. illumination, trino (55595)

The NexiusZoom ESD series offers high-quality stereo microscopes with the following specifications:

Optical Features:

• Eyepieces: Pair of WF 10x/22 mm eyepieces, both with ±5 diopter adjustments

• Head: Bino- or trinocular heads with 45° inclined tubes

• Interpupillary Distance: Adjustable between 54 mm and 75 mm

• Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications

• Field of View: 33 mm to 4.9 mm

• Working Distance: 110 mm

• Auxiliary Lenses: 0.5x, 0.75x, 1.5x, and 2.0x available

Mechanical Features:

• Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps

• Alternative Stands: Ergonomically designed universal one arm or double arm stands without illumination

• Stand Material: Alloy metal cast, hardened off-white painted

• Focusing: Coarse adjustment

Illumination:

• 3 W transmitted and incident LED illuminators

• Can be used simultaneously

• Both light intensities are adjusted separately

Additional Information:

• All optical parts are anti-fungus treated

Specific Model Specifications (NZ.1703-A):

Optics:

• Eyepiece: 10x (WF 10/22)

• Magnification: 0.67-4.5x (zoom lens)

• Optical System: Greenough

Mechanics:

• Type of Build: Trinocular

• Working Distance: 110 mm

• Viewing Posture: 45° oblique viewing

Special Features:

• Dust cover bag included

General:

• Dimensions: Width 219 mm, Length 266 mm

• Series: Nexius

Field of Application:

• Industry

• Materials technology

• Mineralogy

• Metallurgy

• University

Supplier Product Number: NZ.1703-A
