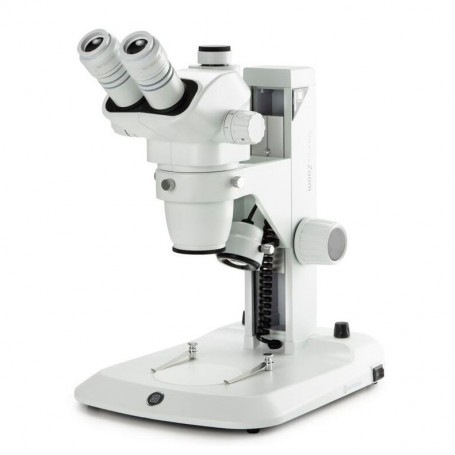

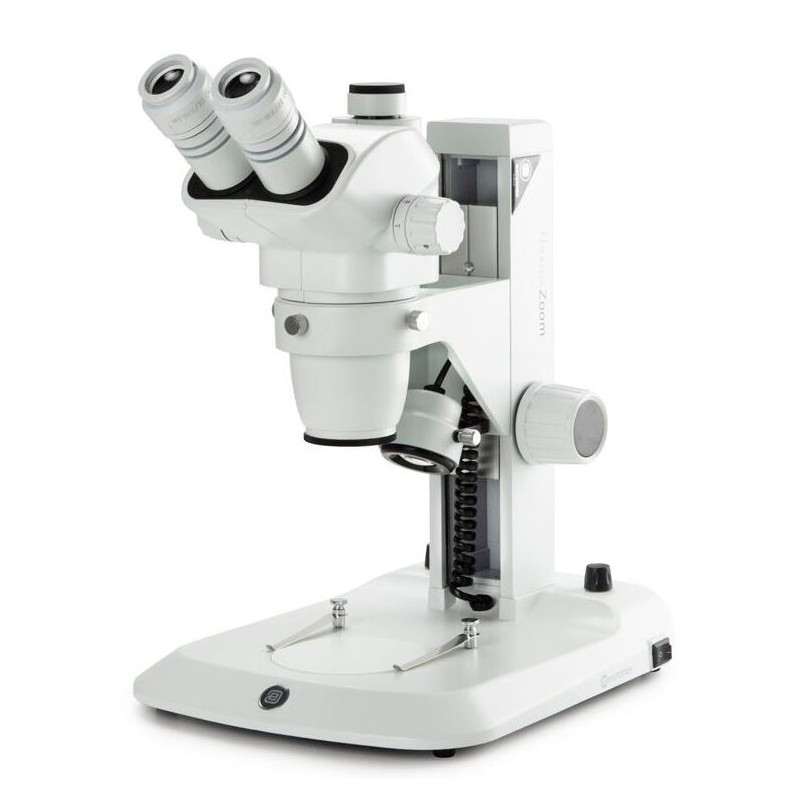

Euromex NexiusZoom, NZ.1903-S-ESD, 6.7x to 45x, rack and pinion, 3 W LED, ESD, trino (55601)

NexiusZoom ESD series

Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments

Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm

Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm

Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available

Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment: Coarse adjustment

Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated

NexiusZoom binocular zoom stereo microscope NZ.1902-S

NexiusZoom Binocular Greenough Zoom stereo microscope

Binocular stereo head with 0.67x to 4,5x stereo objective

WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment

Total standard magnification from 6.67x to 45x

Field of views: 33mm to 4,9mm

Working distance: 110mm

Stand: Rack and pinion stand

Illumination: Translucent and incident 3 W LED illumination

Delivered with object plate and 2 object clamps

Packed in styrofoam box

Specifications

Optics
Eyepiece: 10 (WF 10/22)
Magnification: 0.67-4.5 (zoom lens)
Lamp type: LED
Lighting: Incident light and transmitted light
Optical system: Greenough

Mechanics
Type of build: Trinocular
Working distance (mm): 110
Viewing posture (°): 45° oblique viewing

Special features
Dust cover bag: yes

General
Width (mm): 219
Length (mm): 266
Series: Nexius ESD
Matches the series Nexius: -

Field of application
Industry: yes
Area of application: Semiconductor technology: yes

Miscellaneous
Supplier product number: NZ.1903-S-ESD
