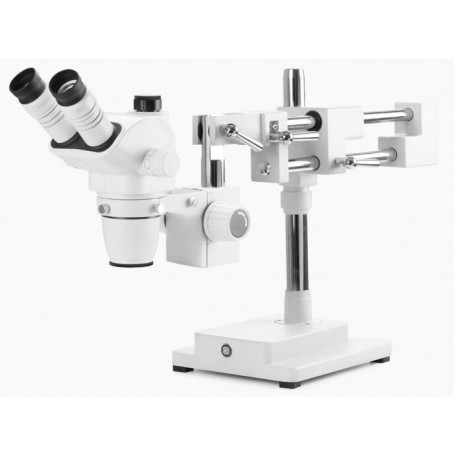

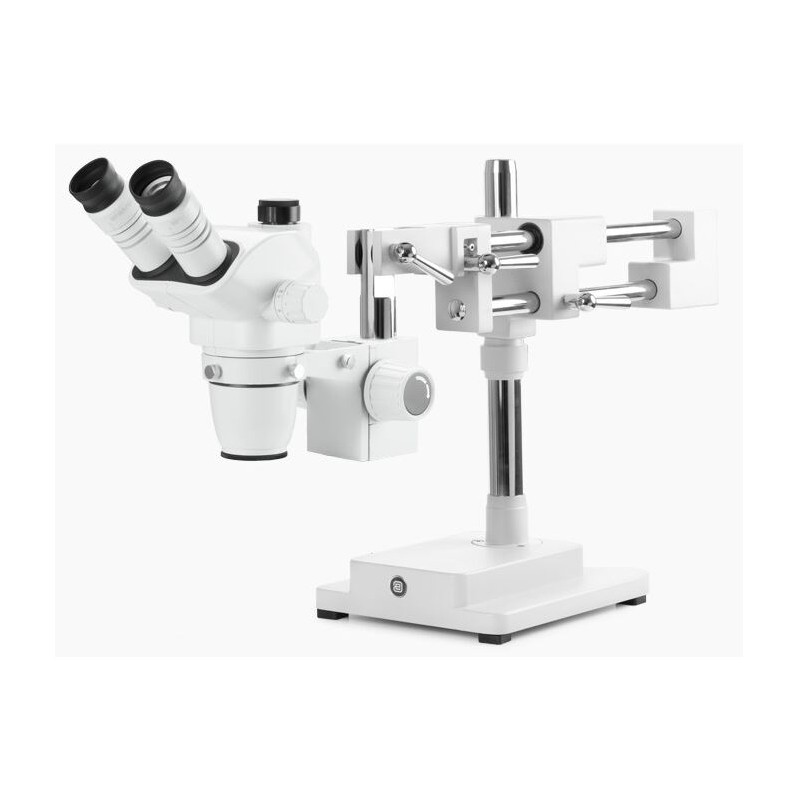

Euromex NZ.1903-B-ESD, NexiusZoom ESD, 6.7x to 45x double-arm boom stand, w.o. illumnation, ESD, trino (55603)

NexiusZoom ESD series

Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments

Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm

Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm

Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available

Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment: Coarse adjustment

Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated

NexiusZoom binocular zoom stereo microscope NZ.1902-B

NexiusZoom binocular Greenough zoom stereo microscope

Binocular stereo head with 0.67 x to 4,5 x stereo objective

WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment

Total standard magnification from 6.67 to 45x

Field of view 33 to 4,9 mm

Working distance 110 mm

Metal universal double arm stand without illumination

Packed in styrofoam box

Specifications

Optics
Eyepiece: 10 (WF 10/22)
Magnification: 0.67-4.5 (zoom lens)
Lamp type: -
Lighting: none
Optical system: Greenough

Mechanics
Type of build: Trinocular
Working distance (mm): 110
Viewing posture (°): 45° oblique viewing

Special features
Dust cover bag: yes

General
Width (mm): 219
Length (mm): 266
Series: Nexius ESD
Matches the series Nexius: -

Field of application
Industry: yes

Area of application
Semiconductor technology: yes
Odontotechnics: yes

Miscellaneous
Supplier product number: NZ.1903-B-ESD
