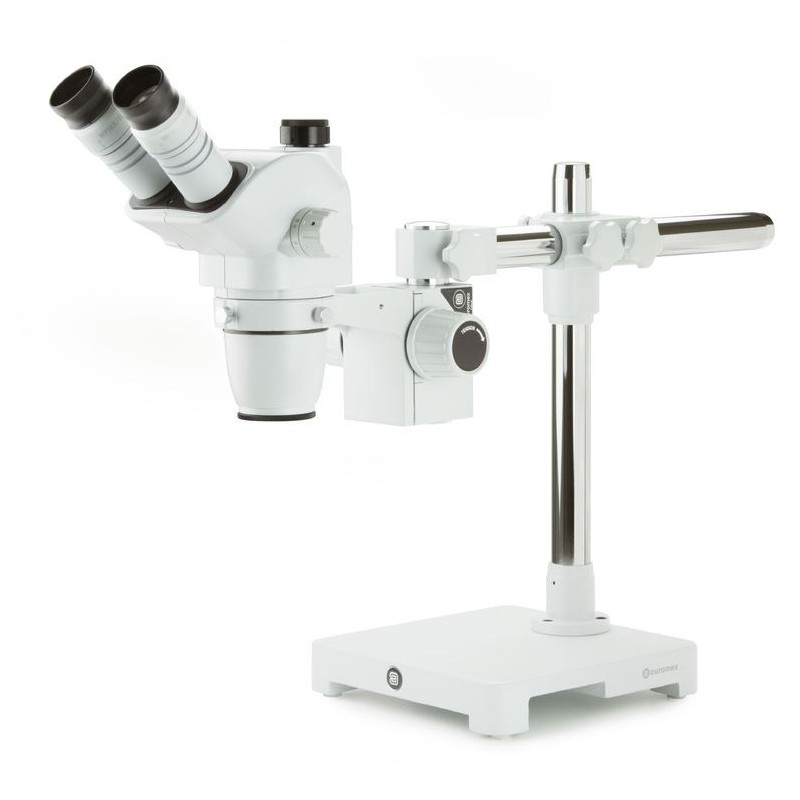

Euromex NZ.1903-U-ESD, NexiusZoom ESD, 6.7x to 45x, one-arm stand, w.o. illumination, ESD, trino (55602)

The NexiusZoom stereomicroscopes are widely used for professional industrial purposes, scientific research, and education due to their excellent optical and mechanical properties, all at an attractive price.

Key Features:

• Eyepieces: Standard wide field secured WF10x eyepieces with a 22 mm field of view.

• Head: 45° inclined, 360° rotatable bino- and trinocular stereo heads.

• Objective: 0.67 to 45x Zoom objective, parafocal over the entire zoom range with a working distance of 110 mm.

• Magnification Options: With optional additional lenses, magnifications from 3.3x to 90 times can be achieved.

• Stands and Illumination: Two ready-to-use stereomicroscope models with ergonomic flat stands featuring 3 W LED diascopic and incident illumination. Four configurations with universal one arm or double arm stands are available.

Specifications

Optics
Eyepiece: 10 (WF 10x/22)
Magnification: 0.65-4.5 (zoom lens)
Lamp type: -
Lighting: none
Optical system: Greenough

Mechanics
Type of build: Trinocular
Working distance (mm): 110
Viewing posture (°): 45° oblique viewing

Special features
Dust cover bag: yes

General
Width (mm): 219
Length (mm): 266
Series: Nexius ESD
Matches the series Nexius: -

Field of application
Industry: yes

Area of application
Semiconductor technology: yes
Odontotechnics: yes

Miscellaneous
Supplier product number: NZ.1903-U-ESD
